SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts


06 - Optional Parts (not Included)

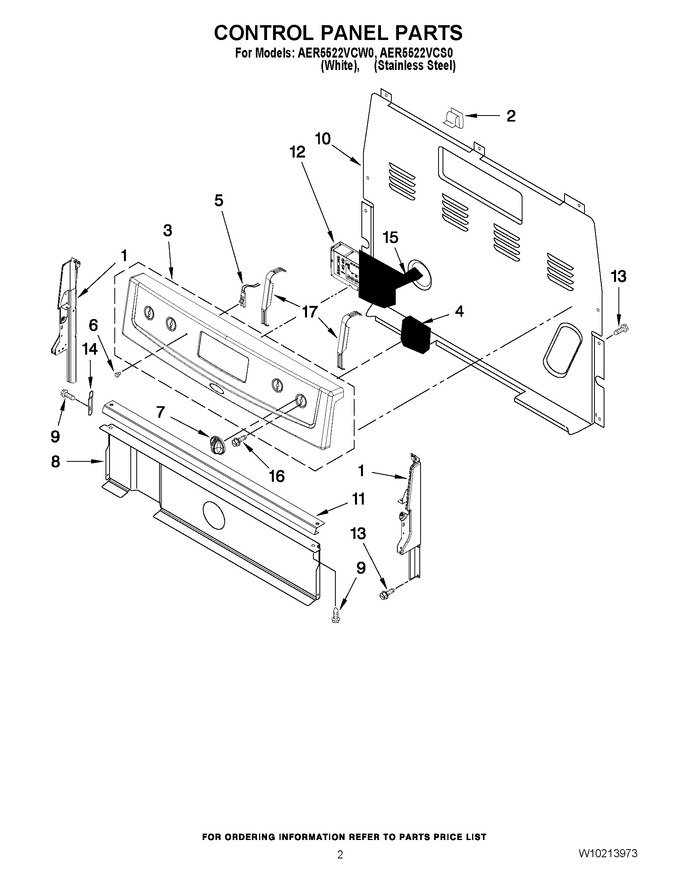

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black Left Hand)   (Replaces: W10184437)				$ 138.45
1	W11219665		Endcap (black Right Hand)   (Replaces: W10184438)				$ 40.65
1	W11219365		Endcap (white Left Hand)   (Replaces: W10184433)				$ 38.21
1	W11219370		Endcap (white Right Hand)   (Replaces: W10184434)				$ 54.75
2	WP8273564		Clip   (Replaces: 8273564)				$ 11.39
3	W10170029		Panel, Control (white)				$ 65.66
3	W10170032		Panel, Control (stainless Steel)				$ 89.25
4	WP3149400		Switch, Infinite (right Rear)   (Replaces: 3148954)			Immediately	$ 81.46
4	WP3148952		Switch, Infinite (right Front)   (Replaces: 3148952)			Immediately	$ 62.56
5	WP8523265		Light, Indicator   (Replaces: 8523265)			Immediately	$ 91.76
6	WP3196068		Lens, Light   (Replaces: 3196068)			Immediately	$ 5.63
7	W10119706		Knob, Infinite (4) (black)				$ 47.61
7	W10119705		Knob, Infinite (4) (white)			Immediately	$ 47.85
8	8053912		Shield, Heat				$ 34.55
9	3196166		Screw				$ 6.62
10	WP8272473		Cover, Upper   (Replaces: 8272473)				$ 197.14
11	W10525121		Brkt-mntg, Console   (Replaces: W10182322)				$ 88.97
12	W10173506		Control, Range (white)				$ 387.33
12	W10173507		Control, Range (black)		Appelez-nous	-
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
14	3196200		Clip, Spring				$ 9.41
15	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
16	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
17	W11230932		Brkt, Mntg Eoc   (Replaces: W10138683)			Immediately	$ 76.33

    View Diagram in Separate Window       Print Part List
