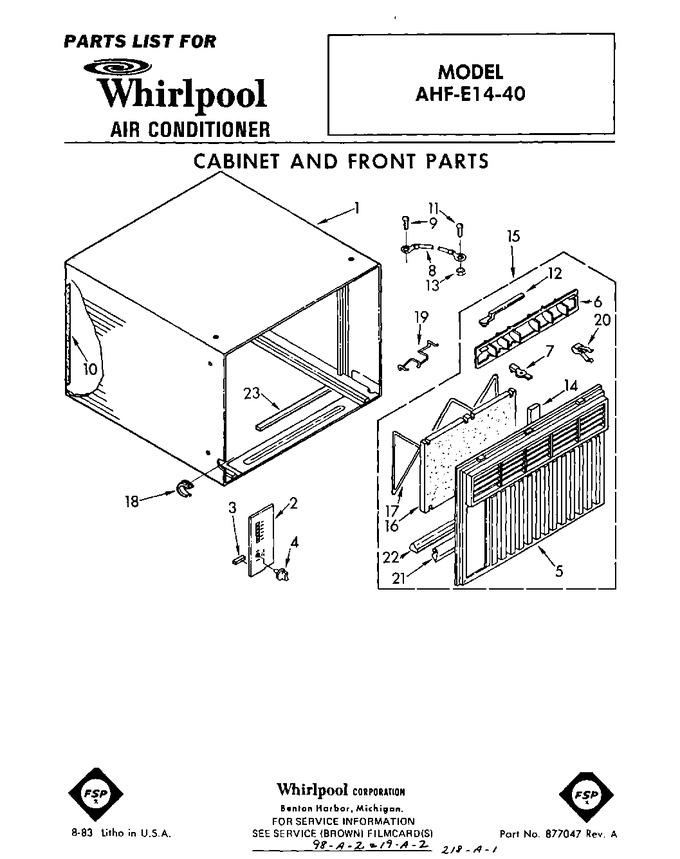

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	858828		Cabinet		Appelez-nous	-
2	947684		Escutcheon		Appelez-nous	-
3	470036		Spacer, Escutcheon (3)		Appelez-nous	-
4	947264		Knob, Control		Appelez-nous	-
5	947686		Front, Cabinet		Appelez-nous	-
6	647798		Louver, Vertical		Appelez-nous	-
7	644165		Handle, Louver (2)		Appelez-nous	-
8	857017		Ground, Wire		Appelez-nous	-
9	488853		Screw, 8-32 X 3/8		Appelez-nous	-
10	WP854334		Seal, Cabinet (back)   (Replaces: 858839)				$ 12.55
11	488854		Screw, 8-32 X 3/8		Appelez-nous	-
12	647799		Link, Louver (2)		Appelez-nous	-
13	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 5.82
14	649198		Seal		Appelez-nous	-
15	947685		Front, Complete		Appelez-nous	-
16	648008		Filter		Appelez-nous	-
17	476707		Retainer, Filter		Appelez-nous	-
18	647849		Grommet, Appliance Cable		Appelez-nous	-
19	949634		Clip, Front (2)		Appelez-nous	-
20	641484		Spring (2)				$ 150.14
21	WP854334		Seal   (Replaces: 647913)				$ 12.55
22	647914		Seal		Appelez-nous	-
23	647854		Seal, Cabinet Bottom		Appelez-nous	-
