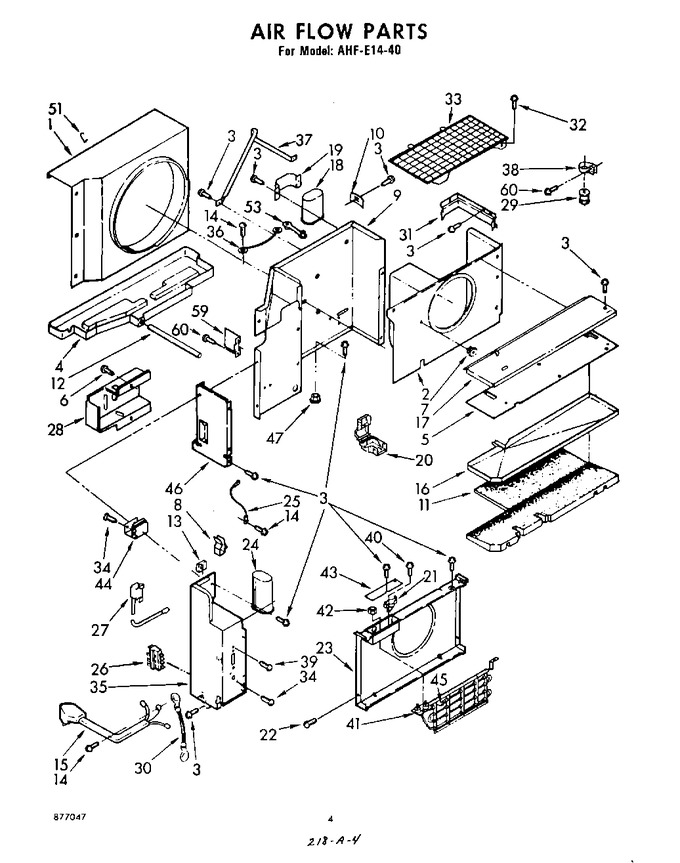

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	647862		Shroud, Condenser		Appelez-nous	-
2	852875		Housing, Blower Wheel		Appelez-nous	-
3	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
3	488481		Screw, Repair		Appelez-nous	-
4	859238		Pan, Condensate		Appelez-nous	-
5	948410		Insulation, Evaporator Cover		Appelez-nous	-
6	WP488729		Screw, Small (8 X 3/8b)   (Replaces: 488979)			Immediately	$ 7.45
7	487808		Fastener, Snap (2)		Appelez-nous	-
8	641054		Clamp, Cable		Appelez-nous	-
9	998442		Wall, Dividing		Appelez-nous	-
10	855929		Clamp, Capacitor Ground		Appelez-nous	-
11	853269		Insulation, Condensate Pan		Appelez-nous	-
12	49181		Tube, Condensate		Appelez-nous	-
13	647865		Grommet		Appelez-nous	-
14	WPW10141604		Screw, 8 X 3/8   (Replaces: 487871)				$ 7.97
15	649125		Cable, Appliance		Appelez-nous	-
16	853268		Pan, Evaporator Condensate		Appelez-nous	-
17	856957		Cover, Evaporator		Appelez-nous	-
18	948173		Capacitor, Compressor		Appelez-nous	-
19	852992		Bracket (lower)		Appelez-nous	-
19	475844		Bracket (upper)		Appelez-nous	-
20	642360		Insulator, Terminal		Appelez-nous	-
21	995674		Switch, Limit		Appelez-nous	-
22	WP488234		Screw, Machine 8-32 X 1/4   (Replaces: 488777)				$ 6.37
23	857224		Deflector, Heater		Appelez-nous	-
24	997996		Capacitor, Fan Motor Running		Appelez-nous	-
25	948285		Wire, Ground		Appelez-nous	-
26	947238		Switch, Pushbutton		Appelez-nous	-
27	994200		Control, Temperature		Appelez-nous	-
28	998009		Bracket, Fan Motor Capacitor		Appelez-nous	-
29	949177		Thermistor		Appelez-nous	-
30	857634		Wire, Ground		Appelez-nous	-
31	852317		Channel, Wiring		Appelez-nous	-
32	WP488729		Screw, 8 X 1/2   (Replaces: 487910)			Immediately	$ 7.45
33	997949		Guard, Evaporator Impeller		Appelez-nous	-
34	488734		Screw, 6 X .175		Appelez-nous	-
35	994159		Box, Control		Appelez-nous	-
36	998010		Wire, Ground		Appelez-nous	-
37	852318		Support, Unit		Appelez-nous	-
38	949176		Clamp, Mounting		Appelez-nous	-
39	488735		Screw, 6-20 X .362		Appelez-nous	-
40	488624		Screw, 8 X 3/8		Appelez-nous	-
41	995675		Heater, Air		Appelez-nous	-
42	WP488826		Nut, Hex Keps 10-32   (Replaces: 487735)				$ 5.88
43	857203		Cover, Wire		Appelez-nous	-
44	858771		Contactor		Appelez-nous	-
45	643899		Fuse, Heater		Appelez-nous	-
46	852994		Wall, Dividing L.s.		Appelez-nous	-
47	649620		Clip, Speed		Appelez-nous	-
51	647873		Clip, Shroud (3)		Appelez-nous	-
53	648791		Clamp, Cable		Appelez-nous	-
59	994399		Cover, Dividing Wall		Appelez-nous	-
60	WP965173		Screw 8 X 3/8   (Replaces: 487415)			Immediately	$ 10.68
