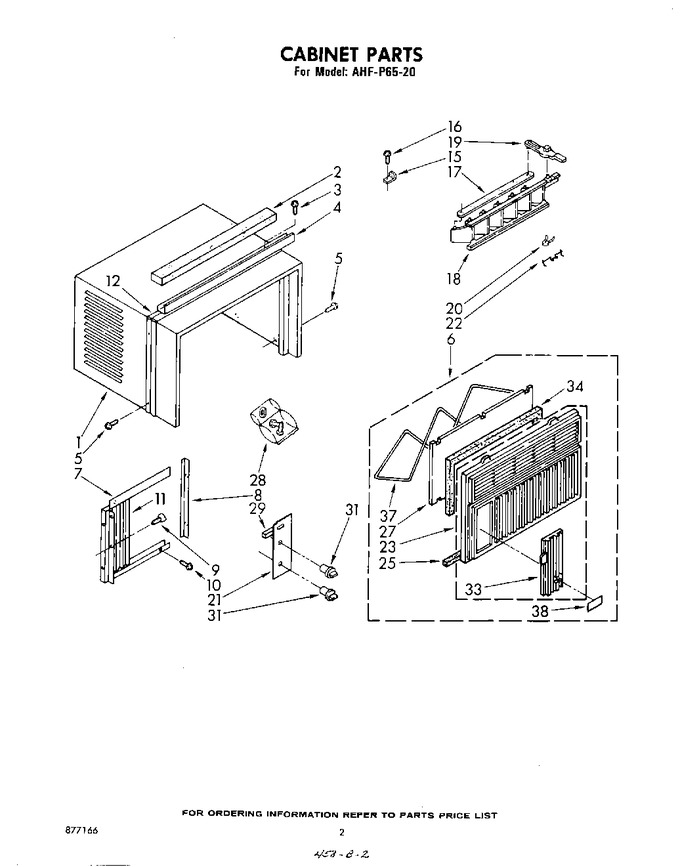

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	856686		Cabinet		Appelez-nous	-
2	469877		Gasket, Meeting Rail		Appelez-nous	-
3	WP308685		Screw, 10 X 1/2 (2)   (Replaces: 488720)			Immediately	$ 7.08
4	993786		Channel, Top		Appelez-nous	-
5	WP489128		Screw, 8-32 X 3/8 (8)   (Replaces: 488875)				$ 10.26
6	947638		Cabinet Assembly, Front		Appelez-nous	-
7	855573		Housing, Curtain Assembly (l.s.)		Appelez-nous	-
7	855572		Housing, Curtain Assembly (r.s.)		Appelez-nous	-
8	644224		Retainer, Curtain (2)		Appelez-nous	-
9	475581		Thumbscrew (2)		Appelez-nous	-
10	488730		Screw, 8 X 7/16 (6)		Appelez-nous	-
11	947160		Curtain (2)		Appelez-nous	-
12	856989		Strip, Seal		Appelez-nous	-
15	644228		Bracket, Window Lock		Appelez-nous	-
16	488255		Screw, 8 X 3/4		Appelez-nous	-
17	641482		Link, Louver		Appelez-nous	-
18	641481		Louver, Vertical		Appelez-nous	-
19	645887		Handle, Louver		Appelez-nous	-
20	641484		Spring, Detent				$ 150.14
21	947636		Plate, Escutcheon		Appelez-nous	-
22	649966		Clip (2)		Appelez-nous	-
23	947372		Front, Frame (includes Illus. 33)		Appelez-nous	-
25	852923		Seal, Front		Appelez-nous	-
27	855246		Filter		Appelez-nous	-
28	476180		Bag, Accessory		Appelez-nous	-
29	470036		Spacer, Escutcheon (2)		Appelez-nous	-
31	947264		Knob, Control (2)		Appelez-nous	-
33	947168		Door, Control		Appelez-nous	-
34	645883		Seal, Top & Sides		Appelez-nous	-
37	646963		Retainer, Filter		Appelez-nous	-
38	947479		Nameplate		Appelez-nous	-
