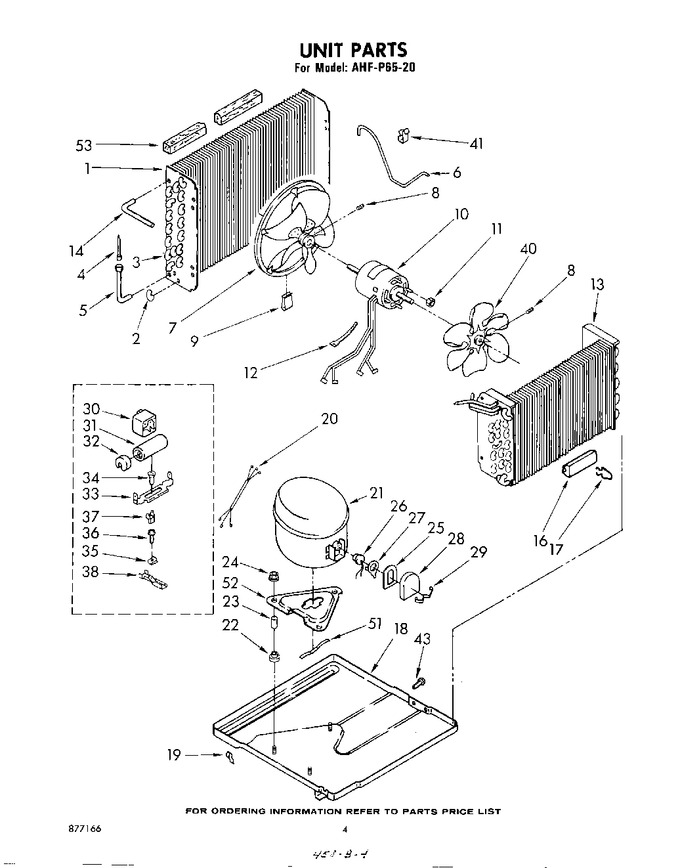

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	948824		Condenser		Appelez-nous	-
2	854624		Bend, Return (4) Condenser		Appelez-nous	-
3	855199		Bend, Return (13) Condenser		Appelez-nous	-
4	49599		Strainer		Appelez-nous	-
5	484230		Tube & Strainer (includes Illus. 4)		Appelez-nous	-
6	948831		Tube, Restrictor		Appelez-nous	-
7	998093		Blade, Fan		Appelez-nous	-
8	595085		Setscrew, 5/16 X 1/4		Appelez-nous	-
9	485334		Clip, Balancing		Appelez-nous	-
10	948835		Motor, Fan		Appelez-nous	-
11	WP488130		Nut, Hex (4)   (Replaces: 488130)				$ 6.59
12	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 7.47
13	948828		Evaporator		Appelez-nous	-
14	947612		Tube, 90~ Bend		Appelez-nous	-
16	996773		Anticipator, Temperature		Appelez-nous	-
17	475577		Clip, Anticipator		Appelez-nous	-
18	858949		Base		Appelez-nous	-
19	855930		Clamp		Appelez-nous	-
20	484136		Harness, Wiring (compressor Service)		Appelez-nous	-
21	484386		Compressor		Appelez-nous	-
22	469581		Grommet (3)		Appelez-nous	-
23	858148		Sleeve (3)		Appelez-nous	-
24	858121		Locknut (3)		Appelez-nous	-
25	647154		Gasket, Terminal Cover		Appelez-nous	-
26	948841		Overload		Appelez-nous	-
27	994171		Spring, Overload		Appelez-nous	-
28	647152		Cover, Terminal		Appelez-nous	-
29	643299		Strap, Terminal Cover		Appelez-nous	-
30	484369		Relay (component Of Start Kit)		Appelez-nous	-
31	484358		Capacitor (component Of Start Kit)		Appelez-nous	-
32	791869		Cap, Capacitor (component Of Start Kit)		Appelez-nous	-
33	35564		Bracket, Capacitor (component Of Start Kit)				$ 262.34
34	487880		Screw, 10 X 5/8 (component Of Start Kit)		Appelez-nous	-
35	488660		Nut, Speed (component Of Start Kit)   (Replaces: 486236)		Appelez-nous	-
36	WP965173		Screw, 8 X 3/8 Component Of Start Kit)   (Replaces: 487869)			Immediately	$ 10.68
37	90654		Multiplier, Terminal (component Of Start Kit)		Appelez-nous	-
38	WP90028		Clip, Terminal (component Of Start Kit)   (Replaces: 90028)				$ 5.82
40	998090		Blade, Fan (evaporator)		Appelez-nous	-
41	852451		Clamp (2)		Appelez-nous	-
43	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
43	WP308685		Screw, Repair   (Replaces: 488861)			Immediately	$ 7.08
51	643179		Spring, Compressor Mounting		Appelez-nous	-
52	644356		Plate, Compressor Mounting		Appelez-nous	-
53	484184		Cover, Winter				$ 64.85
53	978030		Valve, Access (3/4``)				$ 123.53
53	484388		Start Kit		Appelez-nous	-
53	484220		Start Assist Kit		Appelez-nous	-
53	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
53	948090		Seal, Condenser Top		Appelez-nous	-
53	484310		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
53	649939		Insulation, Cabinet (5/8`` X 13`` X 25-11/16``)		Appelez-nous	-
53	469938		Insulation, Fiberglass (1/4`` X 24`` X 48``)		Appelez-nous	-
53	WP279368		Cement, Attach Insulation)   (Replaces: 797403)			Immediately	$ 104.81
53	485426		Lacquer, Starlight Gray (1/2 Pt. Uncut)		Appelez-nous	-
53	47261		Wire, Black (25 Ft.)		Appelez-nous	-
53	47262		Wire, Red, (25 Ft.)		Appelez-nous	-
53	47263		Wire, White (25 Ft.)		Appelez-nous	-
53	212643		Sealer, Gum Type (cabinet & Windows)   (Replaces: 470168)			Immediately	$ 86.78
53	948851		Guide, Energy		Appelez-nous	-
53	947596		Guide, Use & Care		Appelez-nous	-
53	877166		List, Parts		Appelez-nous	-
53	505168		No Drip Tape (for Sweating Tubes)		Appelez-nous	-
53	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
53	10943		Oil, Turbine 1 Fl. Oz.		Appelez-nous	-
53	978026		Valve, Access (5/16``)			Immediately	$ 121.04
53	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
53	978028		Valve, Access (1/2)		Appelez-nous	-
53	978029		Valve Access (5/8``)				$ 93.85
