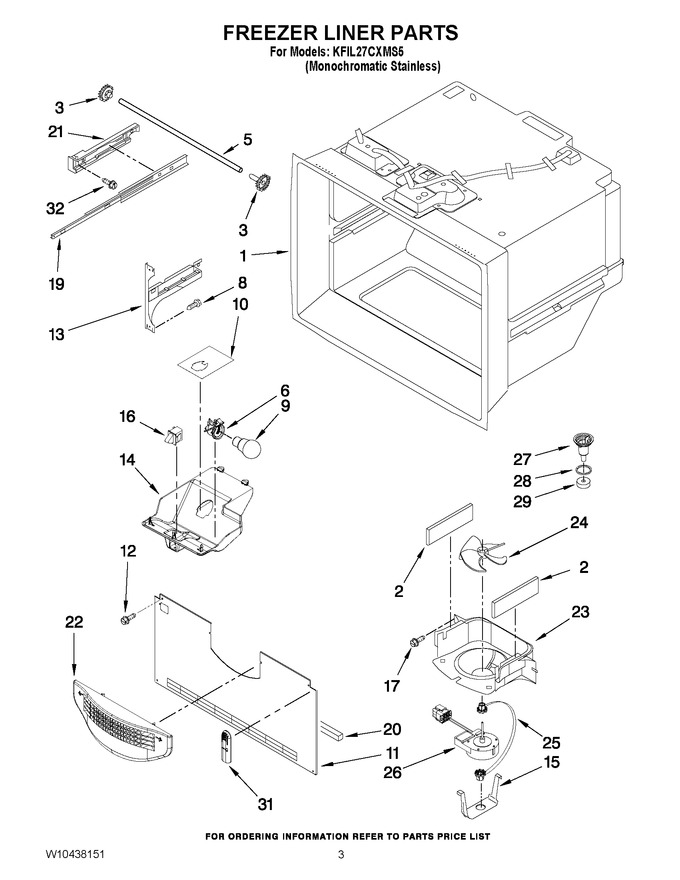

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W10856123 | Gasket, Foam (Replaces: A3189392) |
|
Immediately | $ 7.25 | ||||
| 3 | 12002497 | Gear (includes Both) |
|
Immediately | $ 20.26 | ||||
| 5 | W11028221 | Shaft (Replaces: 12812903WD) |
|
$ 29.92 | |||||
| 6 | W11447232 | Socket, Light (Replaces: 12570701) |
|
Immediately | $ 12.48 | ||||
| 8 | WP98165 | Screw (8) (Replaces: 12990521) |
|
$ 7.71 | |||||
| 9 | W11679940 | Bulb, Light (Replaces: 2255743) |
|
Immediately | $ 10.17 | ||||
| 10 | W11469652 | Foil-fz Light (Replaces: W10277466) |
|
$ 20.96 | |||||
| 11 | W10308421 | Cover, Evaporator |
|
$ 261.95 | |||||
| 12 | 67006425 | Screw (4) (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 13 | WPW10330993 | Bracket, Door (right) (Replaces: W10122148) |
|
$ 149.48 | |||||
| 13 | WPW10330991 | Bracket, Door (left) (Replaces: W10122147) |
|
$ 147.88 | |||||
| 14 | W11434460 | Housing, Light (Replaces: W10315248) |
|
Immediately | $ 33.53 | ||||
| 15 | W11712696 | Clip, Evap Motor (Replaces: 12956601) |
|
Immediately | $ 11.02 | ||||
| 16 | W11445850 | Switch, Light (Replaces: 12466111SP) |
|
Immediately | $ 47.36 | ||||
| 17 | WP98165 | Screw (2) (Replaces: 12990504) |
|
$ 7.71 | |||||
| 19 | W11658402 | Slide, Door (Replaces: W10120018) |
|
Immediately | $ 202.03 | ||||
| 20 | W11159728 | Gasket, Bottom (Replaces: A3189396) |
|
Immediately | $ 25.97 | ||||
| 21 | WPW10284682 | Adapter, Slide (left) (Replaces: W10284682) |
|
Immediately | $ 127.24 | ||||
| 21 | WPW10284683 | Adapter, Slide (right) (Replaces: W10284683) |
|
$ 196.18 | |||||
| 22 | W11176847 | Grille, Fz Air (Replaces: 12959901) |
|
$ 111.74 | |||||
| 23 | W11700329 | Shroud, Evap Fan (Replaces: 12951401) |
|
Immediately | $ 55.08 | ||||
| 24 | WP67006337 | Blade, Fan (evaporator) (Replaces: 12986101) |
|
Immediately | $ 95.05 | ||||
| 25 | W11676465 | Grommet (Replaces: 12951101) |
|
Immediately | $ 14.00 | ||||
| 26 | W11334745 | Motor, Evaporator (Replaces: W10276647) |
|
Immediately | $ 135.64 | ||||
| 27 | W10815413 | Funnel, Drain (Replaces: D7753903) |
|
Immediately | $ 46.35 | ||||
| 28 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.32 | |||||
| 29 | WPB8381501 | Gasket (Replaces: B8381501) |
|
$ 7.00 | |||||
| 31 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 7.39 | |||||
| 32 | WP489474 | Screw (6) (Replaces: 12990501) |
|
Immediately | $ 7.70 | ||||
| NI | W10187177 | Harness, Fountain Cavity |
|
- |
