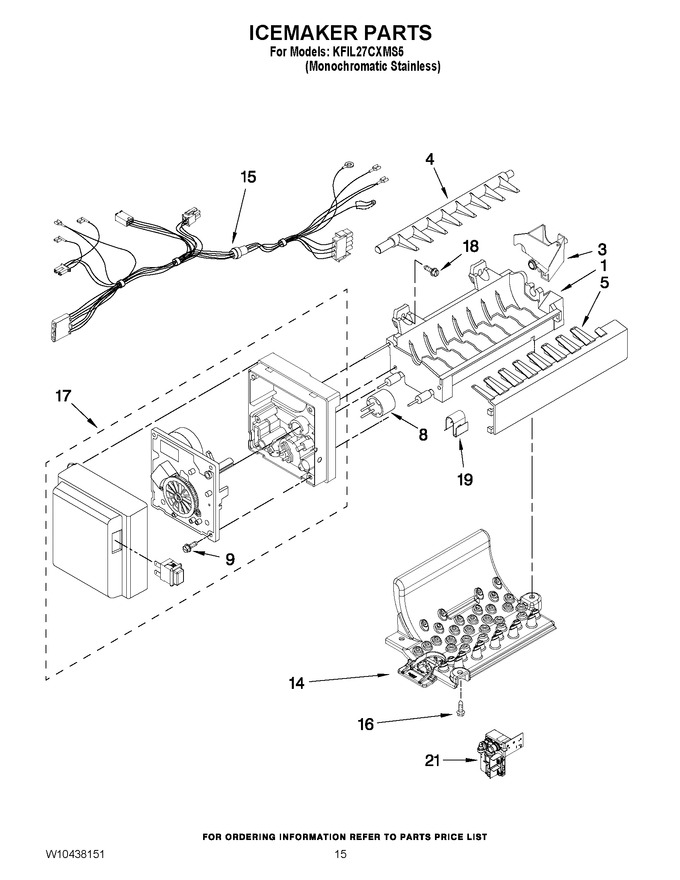

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10161596 | Mold & Heater Assembly (also Order 542638 Grease) |
|
$ 181.79 | |||||
| 3 | W10160726 | Cup, Fill |
|
$ 77.00 | |||||
| 4 | W10318644 | Ejector |
|
$ 25.13 | |||||
| 5 | W10267602 | Ice Stripper |
|
$ 54.35 | |||||
| 8 | WP627985 | Thermostat (also Order 542369 Cement) (Replaces: W10290336) |
|
$ 103.18 | |||||
| 9 | W10001240 | Screw (3) |
|
$ 8.30 | |||||
| 11 | 8533917 | Screw (2) |
|
$ 12.64 | |||||
| 14 | W10194598 | Duct, Impinger Top |
|
$ 224.02 | |||||
| 15 | W10384189 | Harness, Icemaker |
|
$ 119.32 | |||||
| 16 | 67006425 | Screw, Impinger (Replaces: 12990511K) |
|
Immediately | $ 6.57 | ||||
| 17 | W10377146 | Module Assembly |
|
$ 236.09 | |||||
| 18 | W10001240 | Screw (3) |
|
$ 8.30 | |||||
| 19 | WP628379 | Clip (Replaces: 628379) |
|
$ 9.99 | |||||
| 21 | WPW10270395 | Valve, Smart (Replaces: W10270395) |
|
Immediately | $ 299.23 | ||||
| 100 | W10377150 | Icemaker Assembly |
|
$ 56.42 | |||||
| NI | 10244904 | Coupling |
|
$ 25.37 |
