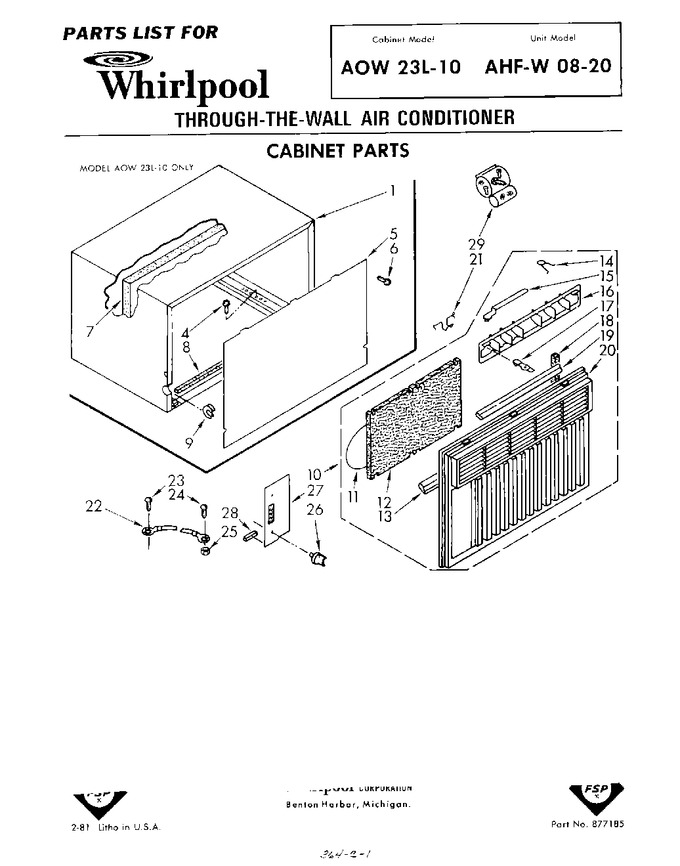

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	857273		Cabinet		Appelez-nous	-
4	487371		Screw		Appelez-nous	-
5	853974		Panel, Front		Appelez-nous	-
6	WP487353		Screw   (Replaces: 488374)				$ 7.16
7	649972		Seal, Weather		Appelez-nous	-
8	998961		Seal, Cabinet (bottom)		Appelez-nous	-
9	647849		Grommet, Appliance Cable		Appelez-nous	-
10	947658		Front, Cabinet Assembly		Appelez-nous	-
11	476707		Retainer, Filter		Appelez-nous	-
12	648008		Filter		Appelez-nous	-
13	647914		Seal, Cabinet Front		Appelez-nous	-
14	641484		Spring, Detent (2)				$ 150.14
15	647799		Link, Vertical Louver (2)		Appelez-nous	-
16	647798		Louver, Vertical		Appelez-nous	-
17	644165		Handle, Vertical Louver (2)		Appelez-nous	-
18	649198		Seal		Appelez-nous	-
19	WP854334		Seal, Cabinet Front   (Replaces: 647913)				$ 12.55
20	947659		Front, Cabinet		Appelez-nous	-
21	649966		Clip, Front Mounting (2)		Appelez-nous	-
22	857017		Wire, Ground		Appelez-nous	-
23	488854		Screw, 8 X 3/8		Appelez-nous	-
24	488853		Screw, 8 X 3/8		Appelez-nous	-
25	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 5.82
26	947264		Knob (2)		Appelez-nous	-
27	947657		Escutcheon		Appelez-nous	-
28	470036		Spacer, Escutcheon (3)		Appelez-nous	-
29	947672		Bag, Accessory		Appelez-nous	-
