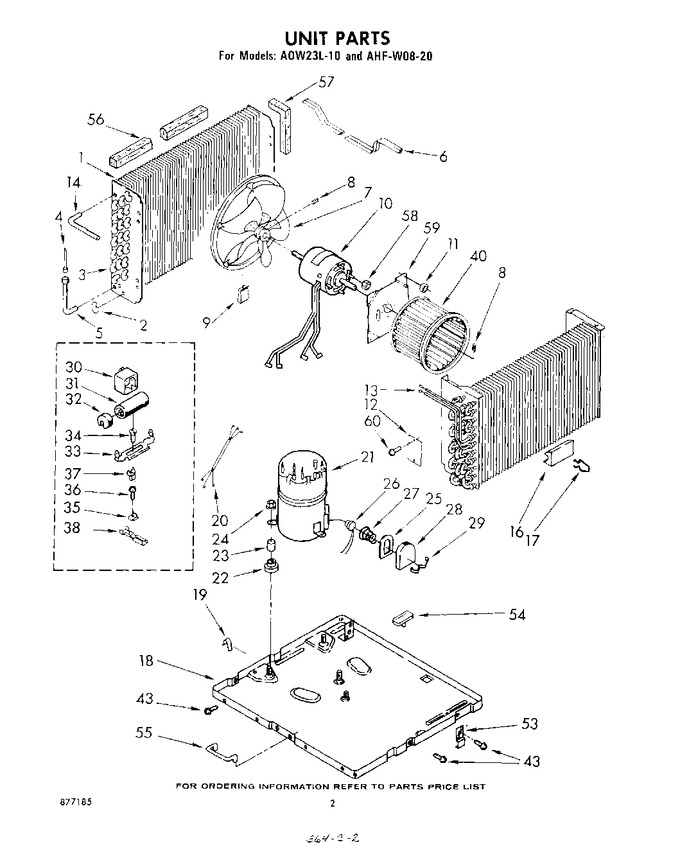

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	949055		Condenser		Appelez-nous	-
2	854624		Bend, Return (16) Condenser		Appelez-nous	-
3	855199		Bend, Return (12) Condenser		Appelez-nous	-
4	49599		Strainer		Appelez-nous	-
5	484230		Tube & Strainer (includes Illus. 4)		Appelez-nous	-
6	997477		Tube, Restrictor (2)		Appelez-nous	-
7	947370		Blade, Fan		Appelez-nous	-
8	595085		Setscrew, 5/16 X 1/4		Appelez-nous	-
9	485334		Clip, Balancing		Appelez-nous	-
10	949054		Motor, Fan		Appelez-nous	-
11	858122		Nut, Hex (4)		Appelez-nous	-
12	994400		Cover, Tube Opening		Appelez-nous	-
13	994378		Evaporator		Appelez-nous	-
14	475635		Tube, 90~ Bend		Appelez-nous	-
16	475573		Anticipator, Temperature		Appelez-nous	-
17	475577		Clip, Anticipator (2)		Appelez-nous	-
18	858803		Base		Appelez-nous	-
19	642684		Clamp		Appelez-nous	-
20	484136		Harness, Wiring (compressor Service)		Appelez-nous	-
21	484285		Compressor		Appelez-nous	-
22	469581		Grommet (3)		Appelez-nous	-
23	858148		Sleeve (3)		Appelez-nous	-
24	858121		Locknut (3)		Appelez-nous	-
25	643296		Gasket, Terminal Cover		Appelez-nous	-
26	646781		Overload		Appelez-nous	-
27	644362		Spring, Overload		Appelez-nous	-
28	855762		Cover, Terminal		Appelez-nous	-
29	475062		Strap, Terminal Cover		Appelez-nous	-
30	484177		Relay (component Of Start Kit)		Appelez-nous	-
31	48616		Capacitor (component Of Start Kit)		Appelez-nous	-
32	465280		Cap, Capacitor (component Of Start Kit)		Appelez-nous	-
33	35564		Bracket, Capacitor (component Of Start Kit)				$ 262.34
34	487880		Screw, 10 X 5/8 (component Of Start Kit)		Appelez-nous	-
35	488660		Nut, Speed (component Of Start Kit)   (Replaces: 486197)		Appelez-nous	-
36	WP965173		Screw, 8 X 3/8 Component Of Start Kit)   (Replaces: 487869)			Immediately	$ 10.68
37	90654		Multiplier, Terminal (component Of Start Kit)		Appelez-nous	-
38	45571		Clip, Terminal (component Of Start Kit)		Appelez-nous	-
40	645932		Wheel, Blower		Appelez-nous	-
43	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
43	488481		Screw, Repair		Appelez-nous	-
53	647824		Condenser, Support (r.s.)		Appelez-nous	-
54	647850		Cup, Condensate		Appelez-nous	-
55	00647971		Handle, Base   (Replaces: 647971)				$ 129.08
56	649609		Seal		Appelez-nous	-
57	649610		Seal		Appelez-nous	-
58	WP488130		Nut, Hex (4)   (Replaces: 488130)				$ 6.59
59	998024		Plate, Mounting		Appelez-nous	-
60	877185		List, Parts		Appelez-nous	-
60	949060		Guide, Use & Care		Appelez-nous	-
60	949062		Guide, Energy		Appelez-nous	-
60	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
60	WP965173		Screw 8 X 3/8   (Replaces: 487415)			Immediately	$ 10.68
60	857271		Insulation, Cabinet (l.s.)		Appelez-nous	-
60	647847		Insulation, Cabinet R.s.		Appelez-nous	-
60	484310		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
60	212643		Sealer, Gum (cabinet & Windows)   (Replaces: 470168)			Immediately	$ 86.78
60	649973		Insulation, Cabinet (top)		Appelez-nous	-
60	47261		Wire, Black (25 Ft.)		Appelez-nous	-
60	47262		Wire, Red, (25 Ft.)		Appelez-nous	-
60	47263		Wire, White (25 Ft.)		Appelez-nous	-
60	WP279368		Cement, Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 104.81
60	485426		Lacquer, Starlight Gray (1/2 Pt. Uncut)		Appelez-nous	-
60	799351		Thinner, Blend (1 Gal.)		Appelez-nous	-
60	505168		No Drip Tape (for Sweating Tubes)		Appelez-nous	-
60	484069		Cover, Winter				$ 62.49
60	10943		Oil, Turbine 1 Fl. Oz.		Appelez-nous	-
60	978026		Valve, Access (5/16``)			Immediately	$ 121.04
60	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
60	978028		Valve, Access (1/2)		Appelez-nous	-
60	978029		Valve Access (5/8``)				$ 93.85
60	978030		Valve, Access (3/4``)				$ 123.53
60	485608		Kit, Compressor Start		Appelez-nous	-
60	484220		Kit, Start Assist		Appelez-nous	-
