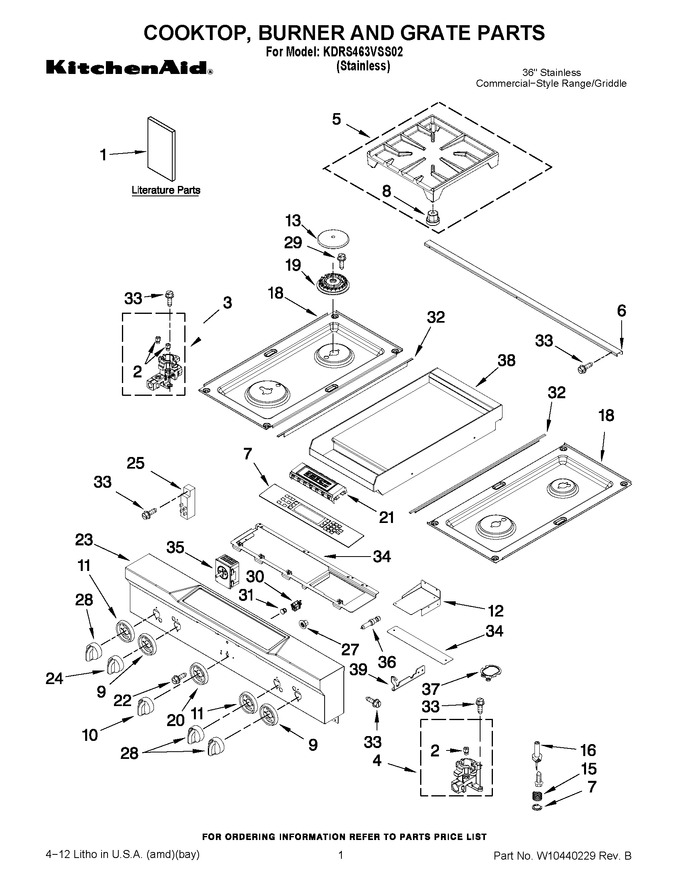

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Chassis Parts


04 - Top Venting Parts


05 - Oven Parts


06 - Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10394571		Installation Instructions		Appelez-nous	-
1	W10403294		Tech Sheet (english)		Appelez-nous	-
1	W10399386		Use & Care Guide		Appelez-nous	-
1	W10403296		Tech Sheet (french)		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	9762761		Safer Cooking Tips (english		Appelez-nous	-
2	W10819958		Orifice (lf-low)   (Replaces: W10256132)				$ 87.99
2	W11051480		Orifice (lr,rf)   (Replaces: W10364221)				$ 81.62
2	W10340424		Orifice (lf-high)				$ 84.30
3	WPW10364555		Orifice Holder (dual - Lf)   (Replaces: W10364555)				$ 102.08
4	WPW10364556		Orifice Holder (lr,rf)   (Replaces: W10364556)				$ 92.15
4	W10282659		Orifice Holder (rr)				$ 36.45
5	WPW10115928		Grate, Burner   (Replaces: W10115928)				$ 181.27
6	W10269217		Trim, Island				$ 277.64
7	WPW10116104		Keypad   (Replaces: W10116104)			Immediately	$ 335.26
8	8186321		Rubber, Foot   (Replaces: 9760219)			Immediately	$ 9.54
9	W10261510		Bezel, Front				$ 49.60
10	W10250390		Knob, Griddle				$ 33.28
11	W10261512		Bezel, Rear		Appelez-nous	-
12	W10367052		Bracket, Spark Module		Appelez-nous	-
13	WPW10256032		Cap, Burner (lr,rf)   (Replaces: W10256032)			Immediately	$ 79.54
13	WPW10256034		Cap, Burner (rr)   (Replaces: W10256034)				$ 124.37
13	WPW10364463		Cap, Burner (lf)   (Replaces: W10364463)			Immediately	$ 50.27
15	W10256046		Spring, Electrode (lf, Rf, & Lr)				$ 10.40
15	8286863		Spring, Electrode (rr)				$ 69.23
16	W10833887		Electrode (lr, Rf & Rr)   (Replaces: W10256047)			Immediately	$ 45.59
16	WPW10145991		Electrode (lf (dual))   (Replaces: W10145991)			Immediately	$ 76.02
18	W10352969		Cooktop (left)				$ 302.18
18	W10352968		Cooktop (right)				$ 303.53
19	W11106799		Burner Head (lf)   (Replaces: W10495853)			Immediately	$ 87.49
19	WPW10282515		Burner Head (rr)   (Replaces: W10282515)			Immediately	$ 134.88
19	WPW10256027		Burner Head (lr,rf)   (Replaces: W10256027)			Immediately	$ 90.92
20	W10261515		Bezel, Griddle		Appelez-nous	-
21	WPW10298119		Module, User Interface   (Replaces: W10298119)				$ 459.53
22	WP74003976		Screw   (Replaces: 7101P500-60)				$ 6.80
23	WPW10284668		Assembly, Console   (Replaces: W10284668)				$ 419.82
24	W11244176		Knob, Control (dual - Lf)   (Replaces: W10250389)				$ 70.53
25	WPW10475147		Module, Spark   (Replaces: 7431P038-60)			Immediately	$ 346.50
27	7103P166-60		Nut, Hex				$ 16.70
28	W11177673		Knob, Control   (Replaces: W10250391)				$ 81.50
29	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
30	W10116151		Light, Indicator Housing				$ 71.24
31	W10116115		Lens, Indicator Light				$ 7.07
32	W10291193		Trim		Appelez-nous	-
33	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
34	W10250476		Bracket, User Interface		Appelez-nous	-
35	WPW10116113		Control, Griddle   (Replaces: W10116113)				$ 316.77
36	W10146042		Electrode & Wire				$ 17.77
37	8286930		Gasket, Orifice Holder (aux)				$ 86.16
38	W10625221		Griddle, Module   (Replaces: W10276498)				$ 1,311.59
39	W10130760		Bracket, Moving Console (left)				$ 68.35
39	W10130759		Bracket, Moving Console (right)				$ 68.35
