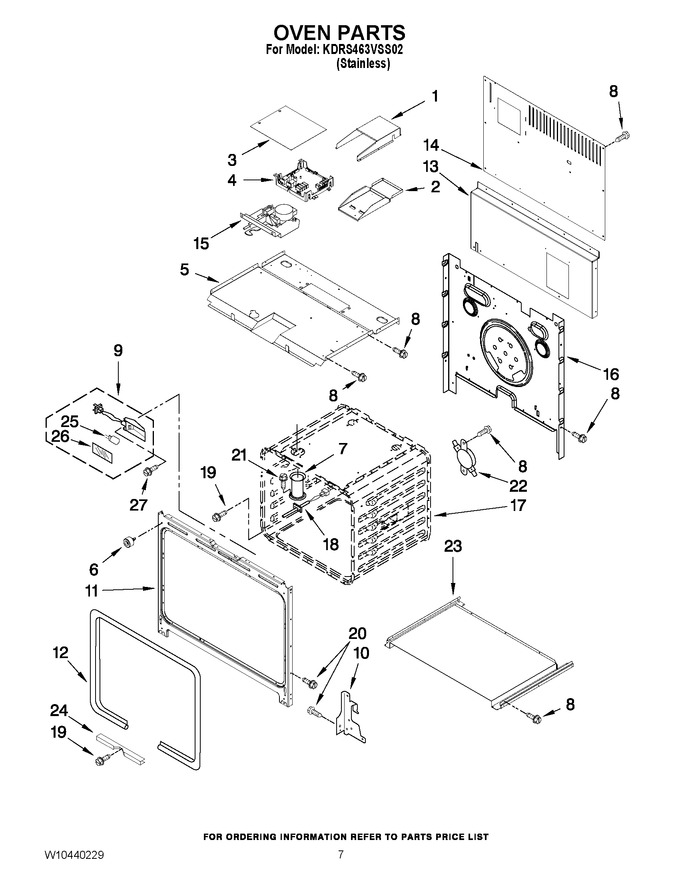

05 - Oven Parts


06 - Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10235557		Drawer, Am		Appelez-nous	-
2	W10249337		Support, Am		Appelez-nous	-
3	W10239444		Seal, Am		Appelez-nous	-
4	WPW10116185		Mgr, Appliance   (Replaces: W10116185)				$ 411.93
5	W10267896		Top, Chassis		Appelez-nous	-
6	W10105790		Assembly, Bumper				$ 6.67
7	W10288061		Tube, Vent				$ 104.35
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
9	WPW10307114		Oven Light Assy   (Replaces: W10307114)			Immediately	$ 104.41
10	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 118.57
10	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 114.93
11	W10160867		Frame, Front				$ 190.89
12	W11676901		Gasket, Oven   (Replaces: W10160889)				$ 68.17
13	W10145398		Panel, Back Bottom		Appelez-nous	-
14	W10269208		Panel, Back Top		Appelez-nous	-
15	W11029221		Latch, Motorized   (Replaces: W10195935)			Immediately	$ 294.89
16	W10235551		Back, Chassis		Appelez-nous	-
17	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
18	W10319835		Sensor				$ 215.35
19	WP4449154		Screw   (Replaces: 4449154)				$ 7.34
20	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
21	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 13.25
22	WP4449751		Thermostat (tod) (temp.) Spst   (Replaces: 4449751)			Immediately	$ 121.07
23	W10235536		Base, Chassis		Appelez-nous	-
24	W11368870		Retainer, Gasket   (Replaces: W10157511)				$ 22.42
25	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 46.52
26	W10169756		Len, Light				$ 37.97
27	4449748		Screw				$ 12.81
NI	W10160807		Insulation, Back		Appelez-nous	-
NI	W10860322		Insulation, Wrap   (Replaces: W10246067)		Appelez-nous	-
