SELECT A DIAGRAM

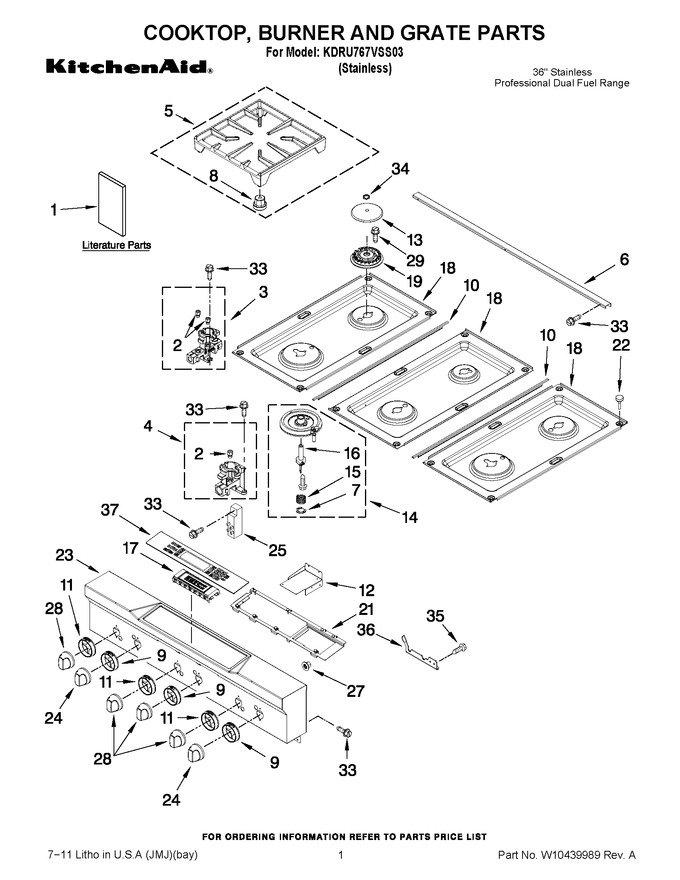

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Chassis Parts


04 - Top Venting Parts


05 - Oven Parts


06 - Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10399383		Use & Care Guide		Appelez-nous	-
1	W10403299		Tech Sheet (english)		Appelez-nous	-
1	W10394571		Installation Instructions		Appelez-nous	-
1	W10403300		Tech Sheet (french)		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
2	W10340424		Orifice (lf,rf (high))				$ 84.30
2	W10819958		Orifice (lf,rf (low))   (Replaces: W10256132)				$ 87.99
2	W11051480		Orifice (lr,cf,rr)   (Replaces: W10364221)				$ 81.62
2	WPW10256128		Orifice (cr)   (Replaces: W10256128)				$ 90.41
3	WPW10364555		Orifice Holder (lf,rf)   (Replaces: W10364555)				$ 102.08
4	WPW10364556		Orifice Holder (lr,cf,rr)   (Replaces: W10364556)				$ 92.15
4	W10282659		Orifice Holder (cr)				$ 36.45
5	WPW10115928		Grate, Burner   (Replaces: W10115928)				$ 181.27
6	W10269217		Trim, Island				$ 277.64
7	8286863		Clip, Electrode				$ 69.23
8	W10185266		Rubber, Foot   (Replaces: 8286695)			Immediately	$ 13.92
9	W10261510		Bezel, Front				$ 49.60
10	W10271524		T-strip				$ 191.11
11	W10261512		Bezel, Rear		Appelez-nous	-
12	W10367052		Bracket, Spark Module		Appelez-nous	-
13	WPW10364463		Cap, Burner (cr)   (Replaces: W10364463)			Immediately	$ 50.27
13	WPW10256032		Cap, Burner (lr,cf,rr)   (Replaces: W10256032)			Immediately	$ 79.54
13	WPW10256034		Cap, Burner (lf,rf)   (Replaces: W10256034)				$ 124.37
14	WPW10256032		Base, Burner (cr)   (Replaces: W10256032)			Immediately	$ 79.54
14	W11106799		Base, Burner (lf,rf)   (Replaces: W10256029)			Immediately	$ 87.49
14	WPW10256027		Base, Burner (lf,cf,rr)   (Replaces: W10256027)			Immediately	$ 90.92
15	W10256046		Spring, Electrode (lf,lr,rf,rr,cf)				$ 10.40
15	8286863		Spring, Electrode (cr)				$ 69.23
16	WPW10145991		Electrode (cr)   (Replaces: W10145991)			Immediately	$ 76.02
16	W10833887		Electrode (lr,cf,rr)   (Replaces: W10256047)			Immediately	$ 45.59
16	W11601369		Electrode (lf,rf)   (Replaces: W10116108)			Immediately	$ 75.04
17	W10298117		Module, User Interface		Appelez-nous	-
18	W10352966		Cooktop (center)				$ 288.39
18	W10352967		Cooktop (right)				$ 303.53
18	W10352969		Cooktop (left)				$ 302.18
19	WPW10256027		Burner Head (lr,cf,rr)   (Replaces: W10256027)			Immediately	$ 90.92
19	W11106799		Burner Head (lf,rf)   (Replaces: W10256029)			Immediately	$ 87.49
19	WPW10282515		Burner Head (cr)   (Replaces: W10282515)			Immediately	$ 134.88
21	W10250477		Bracket, User Interface		Appelez-nous	-
22	4448520		Bumper				$ 20.03
23	W10115886		Panel, Control				$ 322.92
24	W11244176		Knob, Control (lf,rf)   (Replaces: W10250389)				$ 70.53
25	W11601369		Module, Spark   (Replaces: W10116108)			Immediately	$ 75.04
27	7103P166-60		Nut, Hex				$ 16.70
28	W11177673		Knob, Control   (Replaces: W10250391)				$ 81.50
29	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
33	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 13.25
34	W10115953		Nut, Burner				$ 8.80
35	WP74003976		Screw   (Replaces: 7101P500-60)				$ 6.80
36	W10130759		Bracket,console (right)				$ 68.35
36	W10130760		Bracket,console (left)				$ 68.35
37	W10116103		Keypad				$ 390.11

    View Diagram in Separate Window       Print Part List
