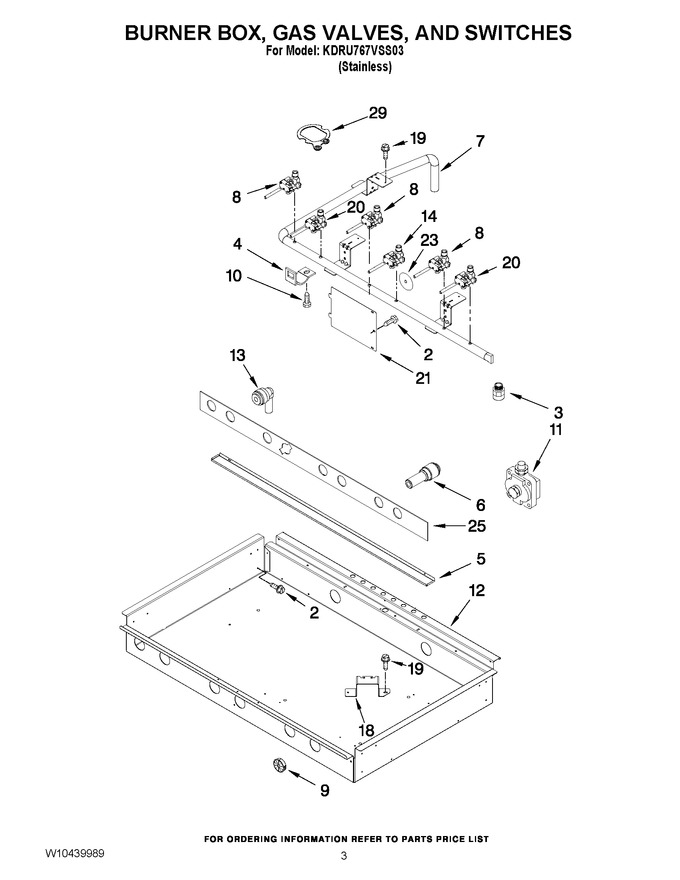

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
3	4453116		(adapter) Male				$ 161.49
3	4453115		(adapter) Female				$ 114.03
4	W10189107		Bracket, Valve		Appelez-nous	-
5	W10269214		Tray, Drip		Appelez-nous	-
6	W10051680		Reducer, Stem				$ 54.62
7	W10115896		Manifold				$ 104.48
8	WPW10385582		Valve, Single (lr,cf,rr)   (Replaces: W10385582)			Immediately	$ 306.77
9	W10189097		Bushing, Burner Box				$ 7.20
10	W10189140		Screw, Valve Mtg				$ 6.14
11	W10293267		Regulator,pressure				$ 282.52
12	W10371516		Burner Box		Appelez-nous	-
13	W10076960		Elbow, Plug In				$ 29.24
14	WPW10385583		Valve, Single (cr)   (Replaces: W10385583)			Immediately	$ 298.89
18	W10189107		Bracket, Burner		Appelez-nous	-
19	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
20	WPW10371235		Valve, Gas (lf,rf)   (Replaces: W10371235)			Immediately	$ 298.94
21	W10115843		Cover, Ignition		Appelez-nous	-
23	W10189177		Seal, Switch Cover				$ 9.00
25	W11688578		Insulation   (Replaces: W10145622)		Appelez-nous	-
29	8286930		Gasket, Orifice				$ 86.16
NI	WPW10353133		Tubing, Gas (tube, Right Back)   (Replaces: W10353133)				$ 157.40
NI	W10353141		Tubing, Gas (tube, Front Right)				$ 157.64
NI	W10353152		Tubing, Gas (tube, Front Left)				$ 71.04
NI	W10280797		Tubing, Gas (tube, Back Left)		Appelez-nous	-
NI	W10269191		Tubing, Gas (regulator, Tube-pressure)				$ 195.92
