SELECT A DIAGRAM

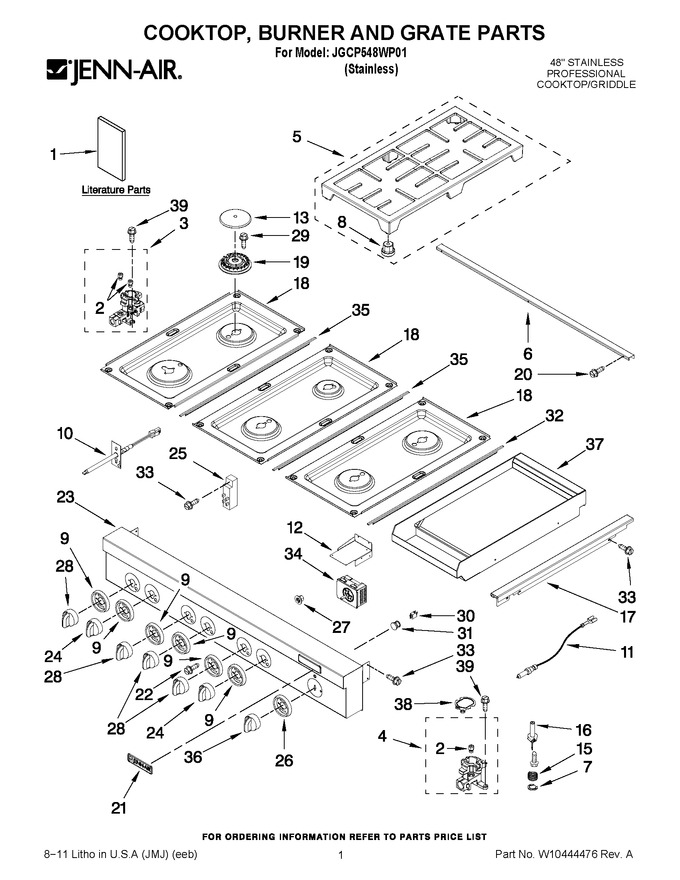

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10399390		Use & Care Guide		Appelez-nous	-
1	W10394706		Installation Instructions		Appelez-nous	-
1	W10403307		Tech Sheet		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
2	W10819958		Orifice (lf,rf - Low)   (Replaces: W10256132)				$ 87.99
2	W10340424		Orifice (lf,rf - High)				$ 84.30
2	W11051480		Orifice (lr,cf,rr)   (Replaces: W10364221)				$ 81.62
3	WPW10364555		Orifice Holder (dual-lf,rf)   (Replaces: W10364555)				$ 102.08
4	WPW10364556		Orifice Holder (lr,cf,rr)   (Replaces: W10364556)				$ 92.15
4	W10282659		Orifice Holder (cr)				$ 36.45
5	W11344501		Grate, Burner   (Replaces: W10276551)			Immediately	$ 196.45
6	W10269216		Trim, Island		Appelez-nous	-
7	W10160825		Clip, Electrode				$ 52.85
8	W10185266		Rubber, Foot   (Replaces: 8286695)			Immediately	$ 13.92
9	W10276494		Bezel, Front				$ 72.38
10	W10319835		Sensor				$ 215.35
11	WPW10145991		Cr, Electrode & Wire   (Replaces: W10145991)			Immediately	$ 76.02
12	W10398550		Bracket, Spark Module		Appelez-nous	-
13	WPW10256032		Cap, Burner (lr, Cf, Rr)   (Replaces: W10256032)			Immediately	$ 79.54
13	WPW10364463		Cap, Burner (lf & Rf)   (Replaces: W10364463)			Immediately	$ 50.27
13	WPW10256034		Cap, Burner (cr)   (Replaces: W10256034)				$ 124.37
15	8286863		Spring, Electrode (cr)				$ 69.23
15	W10256046		Spring, Electrode (lr,cf,rr,lf,rf)				$ 10.40
16	WPW10145991		Electrode (lf,rf (dual))   (Replaces: W10145991)			Immediately	$ 76.02
16	W10833887		Electrode (lr,cf,rr)   (Replaces: W10256047)			Immediately	$ 45.59
17	W10226012		Trim, Side (right)		Appelez-nous	-
17	W10226013		Trim, Side (left)		Appelez-nous	-
18	W10352969		Cooktop (left)				$ 302.18
18	W10352963		Cooktop (right)				$ 317.55
18	W10352966		Cooktop (center)				$ 288.39
19	WPW10256027		Burner Head (lr & Cf & Rr)   (Replaces: W10256027)			Immediately	$ 90.92
19	W11106799		Burner Head (lf,rf)   (Replaces: W10256029)			Immediately	$ 87.49
19	WPW10282515		Burner Head (cr)   (Replaces: W10282515)			Immediately	$ 134.88
20	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 13.25
21	WPW10159578		Nameplate   (Replaces: W10159578)			Immediately	$ 79.69
22	WP74003976		Screw   (Replaces: 7101P500-60)				$ 6.80
23	W11444510		Assembly, Console   (Replaces: W10145537)		Appelez-nous	-
24	W10145568		Knob, Control (dual - Lf & Rf)				$ 47.63
25	WPW10475147		Module, Spark   (Replaces: 7431P038-60)			Immediately	$ 346.50
26	W10145453		Bezel, Griddle				$ 72.38
27	7103P166-60		Nut, Hex				$ 16.70
28	W10145454		Knob, Control (4)				$ 42.25
29	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
30	W10116114		Light, Indicator Housing			Immediately	$ 84.21
31	W10294500		Lens, Indicator Light				$ 6.92
32	W10291193		Trim, L-strip		Appelez-nous	-
33	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
34	WPW10116113		Control, Griddle   (Replaces: W10116113)				$ 316.77
35	W10271524		Trim, T-strip				$ 191.11
36	W10145566		Knob, Griddle			Immediately	$ 46.49
37	W10625221		Module, Griddle   (Replaces: W10276498)				$ 1,311.59
38	8286930		Gasket, Orifice Holder Aux				$ 86.16
39	W11676349		Screw, Burner Rail (cr)   (Replaces: 8286921)			Immediately	$ 13.28
39	WP90767		Screw, Burner Rail (lf, Cf, Rr, Lf & Rf)   (Replaces: 7101P426-60)			Immediately	$ 7.43

    View Diagram in Separate Window       Print Part List
