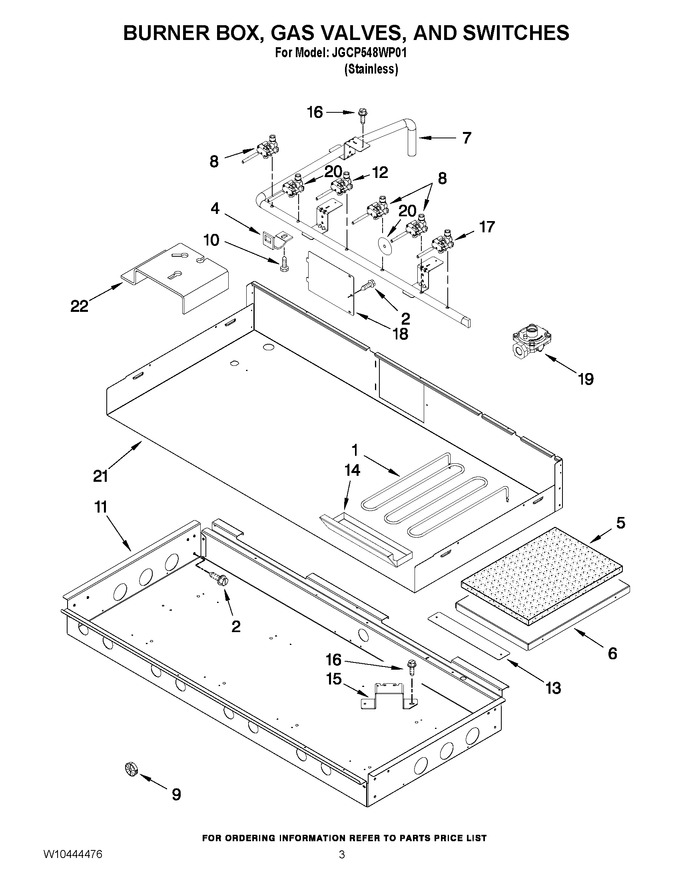

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193014		Element, Griddle				$ 291.11
2	W10145620		Tray-element, Griddle		Appelez-nous	-
4	W10189107		Bracket, Valve		Appelez-nous	-
5	W11684995		Insulation, Griddle   (Replaces: W10145621)		Appelez-nous	-
6	W10246074		Tray-insulation, Griddle		Appelez-nous	-
7	W10115896		Manifold				$ 104.48
8	WPW10385582		Valve, Gas (lr,cf,rr)   (Replaces: W10385582)			Immediately	$ 306.77
9	W10189097		Bushing, Burner Box				$ 7.20
10	W10189140		Screw, Valve Mtg				$ 6.14
11	W10371517		Burner Box		Appelez-nous	-
12	WPW10385583		Valve, Gas (cr)   (Replaces: W10385583)			Immediately	$ 298.89
13	W10250433		Cover, Plate		Appelez-nous	-
14	W10276497		Drip, Tray Griddle				$ 363.63
15	W10369547		Bracket, Burner		Appelez-nous	-
16	4450800		Screw				$ 12.12
17	WPW10371235		Valve, Gas Lf,rf   (Replaces: W10371235)			Immediately	$ 298.94
18	W10115843		Cover, Ignition		Appelez-nous	-
19	WP9759091		Regulator,pressure   (Replaces: 9759091)			Immediately	$ 306.39
20	W10189177		Seal, Switch Cover				$ 9.00
21	W10189155		Cover, Burner Box		Appelez-nous	-
22	8285790		Bracket, Mounting Orifice				$ 77.27
NI	WPW10353133		Tube, Back   (Replaces: W10353133)				$ 157.40
NI	W10353141		Tube, Frt Rt				$ 157.64
NI	W10353152		Tube, Frt Ctr				$ 71.04
NI	W10353154		Tube, Frt Lft			Immediately	$ 155.50
NI	W10280797		Tubing, Gas (cr)		Appelez-nous	-
