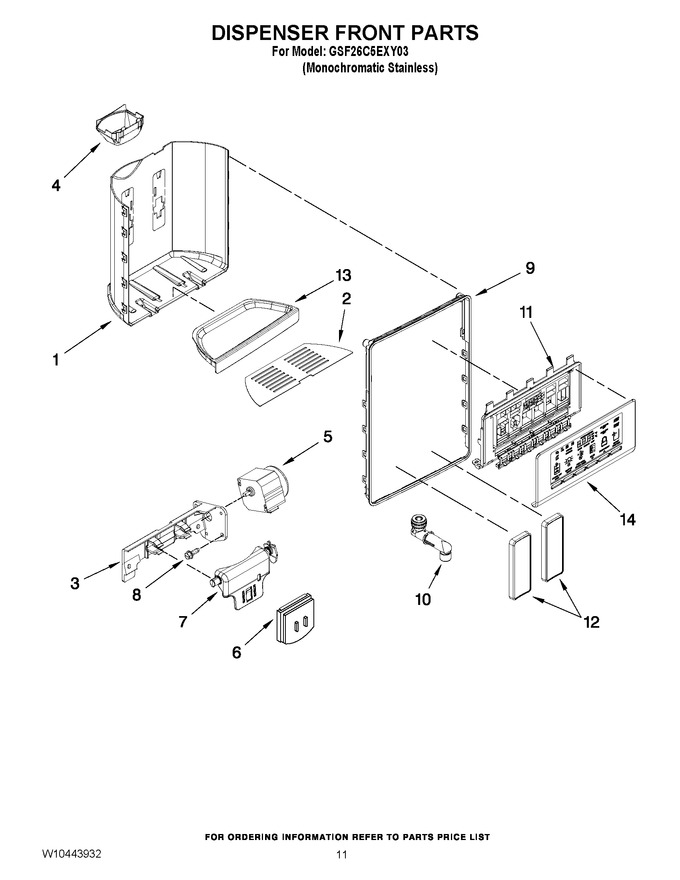

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WPW10276197 | Grate, Drip Tray (Replaces: W10276197) |
|
$ 67.69 | |||||
| 3 | W10174827 | Bracket-ice Door |
|
$ 68.78 | |||||
| 4 | WPW10435760 | Chute, Door (Replaces: W10339578) |
|
Immediately | $ 21.55 | ||||
| 5 | WPW10205978 | Motor, Ice Door (Replaces: W10205978) |
|
$ 93.71 | |||||
| 6 | WPW10493172 | Ice Door Assy. (includes 3, 5, 7, & 8) (Replaces: W10353567) |
|
$ 215.87 | |||||
| 7 | W10174827 | Support, Ice Door |
|
$ 68.78 | |||||
| 8 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.18 | |||||
| 9 | W10254306 | Trim Ring (chromium Frost) |
|
- | |||||
| 10 | WP2305235 | Spigot (Replaces: 2305235) |
|
Immediately | $ 132.36 | ||||
| 11 | WPW10372206 | Electronic Control Assy (Replaces: W10254282) |
|
$ 293.66 | |||||
| 12 | WPW10370594 | Pad, Ice & Water (midnight Grey) (Replaces: W10290362) |
|
$ 279.55 | |||||
| 13 | WPW10276196 | Tray, Housing (satina) (Replaces: W10276196) |
|
$ 62.39 | |||||
| 14 | WPW10254285 | Front Cover (silver) (Replaces: W10254285) |
|
$ 275.29 |
