SELECT A DIAGRAM
New Model Search:

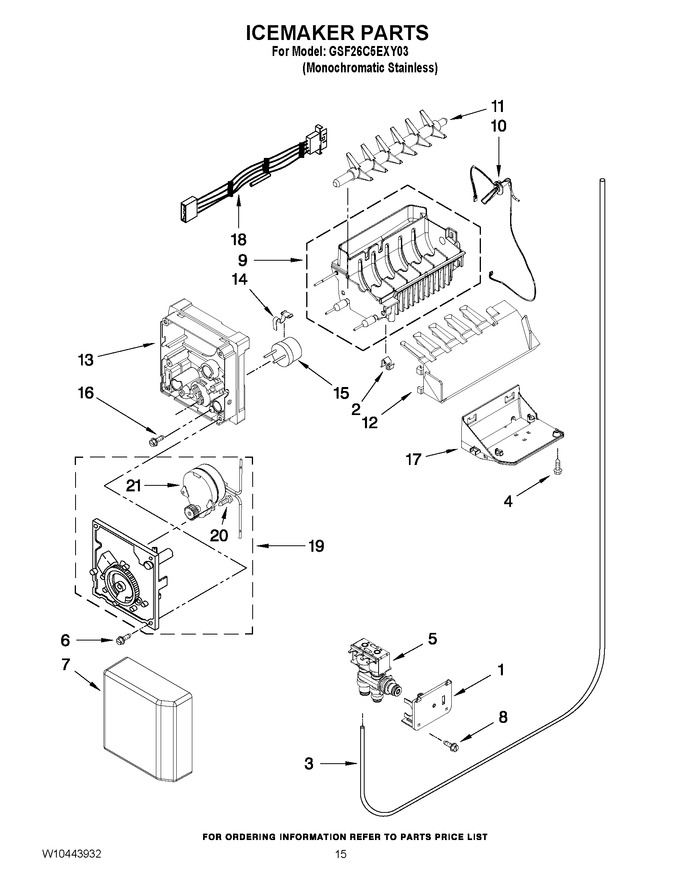

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10847867 | Bracket, Valve (Replaces: W10237915) |
|
$ 72.68 | |||||
| 2 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 3 | WPW10238092 | Water Tube (Replaces: W10238092) |
|
Immediately | $ 119.02 | ||||
| 4 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 5 | WPW10258562 | Filter Valve Asm (Replaces: W10258562) |
|
Immediately | $ 229.37 | ||||
| 6 | W10001240 | Screw |
|
$ 8.30 | |||||
| 7 | W10251088 | Cover |
|
$ 43.87 | |||||
| 8 | WPW10141625 | Screw (2) (Replaces: W10141625) |
|
$ 20.00 | |||||
| 9 | W10251081 | Mold & Heater Assembly (also Order 542638) |
|
$ 160.59 | |||||
| 10 | W10347034 | Fill Tube Assy |
|
$ 84.69 | |||||
| 11 | W10318644 | Ejector |
|
$ 25.13 | |||||
| 12 | W10747731 | Ice Striper (Replaces: W10251078) |
|
$ 85.31 | |||||
| 13 | WP2195914 | Support (Replaces: 2194712) |
|
$ 98.82 | |||||
| 14 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 10.44 | |||||
| 15 | WP2321258 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 2321258) |
|
$ 93.54 | |||||
| 16 | 8533917 | Screw |
|
$ 12.64 | |||||
| 17 | W10251080 | Bracket, Mounting |
|
$ 88.70 | |||||
| 18 | W10242384 | Harness, Wiring (Replaces: W10242365) |
|
$ 118.47 | |||||
| 19 | 8201515 | Module Assembly (Replaces: 626691) |
|
Immediately | $ 143.80 | ||||
| 20 | 489136 | Screw |
|
$ 9.72 | |||||
| 21 | N/P | Motor (not Serviced, Order No.19) |
|
- | |||||
| 100 | WPW10251076 | Complete Icemaker Assembly (Replaces: W10122576) |
|
Immediately | $ 260.13 |
