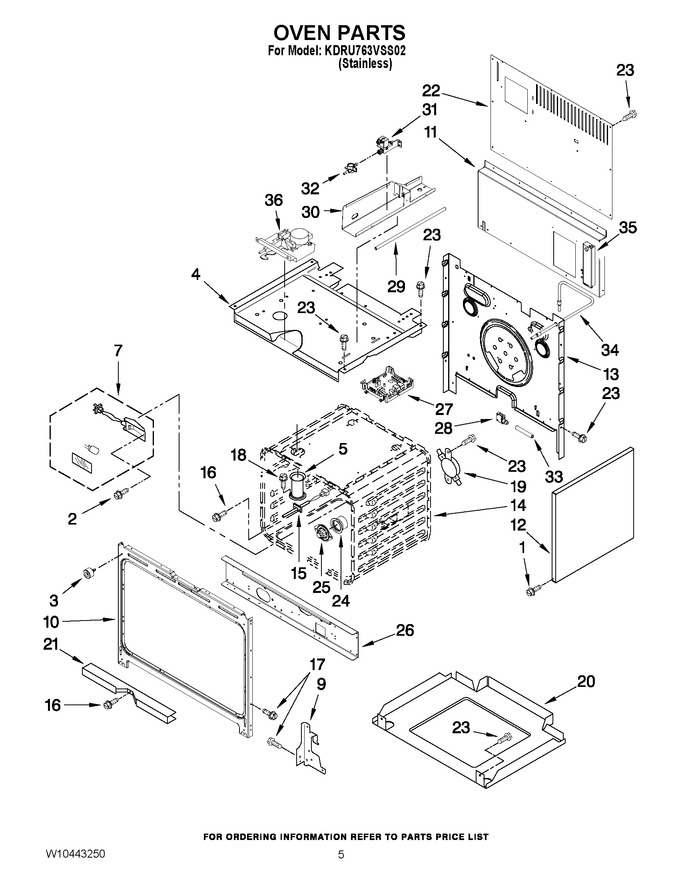

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 6.80
2	4449748		Screw				$ 12.81
3	W10105790		Assembly, Bumper				$ 6.67
4	W10267896		Top, Chassis		Appelez-nous	-
5	W10288061		Tube, Vent				$ 104.35
7	WPW10307114		Oven Light Assy   (Replaces: W10307114)			Immediately	$ 104.41
9	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 118.57
9	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 114.93
10	W10160867		Frame, Front				$ 190.89
11	W10145398		Panel, Back Bottom		Appelez-nous	-
12	W10269206		Side, Chassis (left)				$ 211.75
12	W10269205		Side, Chassis (right)				$ 211.98
13	W10273153		Back, Chassis		Appelez-nous	-
14	N/P		Liner, Oven (not Serviced)		Appelez-nous	-
15	W10319835		Sensor				$ 215.35
16	WP4449154		Screw   (Replaces: 4449154)				$ 7.34
17	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
18	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 13.25
19	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 121.07
20	W10235536		Base, Chassis		Appelez-nous	-
21	W11368870		Retainer, Gasket   (Replaces: W10157511)				$ 22.42
22	W10269208		Panel, Back Top		Appelez-nous	-
23	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
24	W10153096		Orifice, Boiler		Appelez-nous	-
25	9758597		Orifice, Boiler Slip Fit				$ 42.82
26	W10269193		Support, Channel		Appelez-nous	-
27	WPW10496836		Appliance, Manager   (Replaces: W10116188)				$ 420.48
28	W10194453		Switch, Pressure				$ 254.00
29	WPW10076930		Hose, Transfer   (Replaces: W10076930)				$ 23.82
30	W10160877		Encloseure, Steam Valve		Appelez-nous	-
31	W10111418		Valve, Solenoid				$ 151.74
32	WPW10076760		Sensor, Conductivity   (Replaces: W10076760)				$ 189.12
33	W10116067		Hose, Silicone		Appelez-nous	-
34	W10160828		Tube, Copper Steam		Appelez-nous	-
35	8186352		Assembly, Boiler   (Replaces: 9758598)				$ 310.89
36	W11029221		Latch, Motorized   (Replaces: W10195935)			Immediately	$ 294.89
NI	W10860322		Steam Valve (insulation, Wrap)   (Replaces: W10246067)		Appelez-nous	-
NI	W10145746		Steam Valve (insulation, Back)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
