SELECT A DIAGRAM
New Model Search:

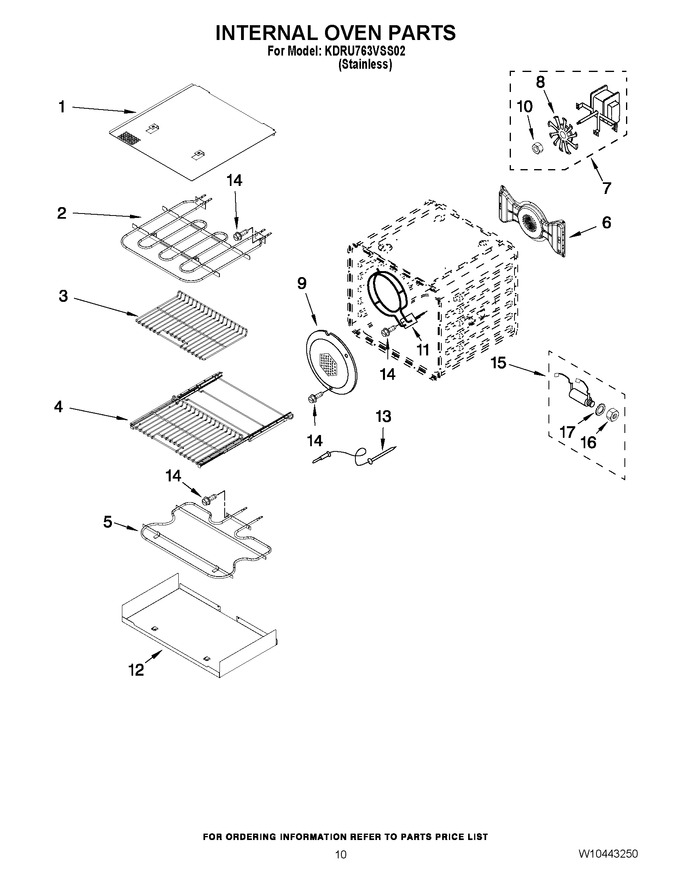

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10160857 | Shield, Element Broil |
|
$ 134.74 | |||||
| 2 | W10857686 | Element, Broil (Replaces: W10115991) |
|
$ 308.56 | |||||
| 3 | W10212435 | Oven, Rack Sliding Hefty |
|
- | |||||
| 4 | W10822069 | Rack, Heftier (Replaces: W10277392) |
|
Immediately | $ 124.73 | ||||
| 5 | W10860270 | Element, Hidden Bake (Replaces: W10115992) |
|
Immediately | $ 182.03 | ||||
| 6 | W10160879 | Baffle, Convection |
|
$ 71.06 | |||||
| 7 | W10794022 | Motor, Convection (Replaces: W10116228) |
|
Immediately | $ 234.38 | ||||
| 8 | W10758272 | Blade, Fan (Replaces: W10116351) |
|
Immediately | $ 7.12 | ||||
| 9 | W10261523 | Cover, Fan |
|
$ 70.07 | |||||
| 10 | WPW10116349 | Nut (Replaces: W10116349) |
|
$ 19.60 | |||||
| 11 | W10116434 | Element,convection |
|
$ 308.32 | |||||
| 12 | W10160872 | Tray, Hidden Bake |
|
$ 75.32 | |||||
| 13 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 89.76 | ||||
| 14 | WP74003976 | Screw (Replaces: 7101P500-60) |
|
$ 6.80 | |||||
| 15 | W10150011 | Jack, Meat Probe |
|
$ 190.68 | |||||
| 16 | WP9755546 | Nut (Replaces: 9755546) |
|
$ 6.57 | |||||
| 17 | WP9755547 | Washer (Replaces: 9755547) |
|
$ 5.77 |
