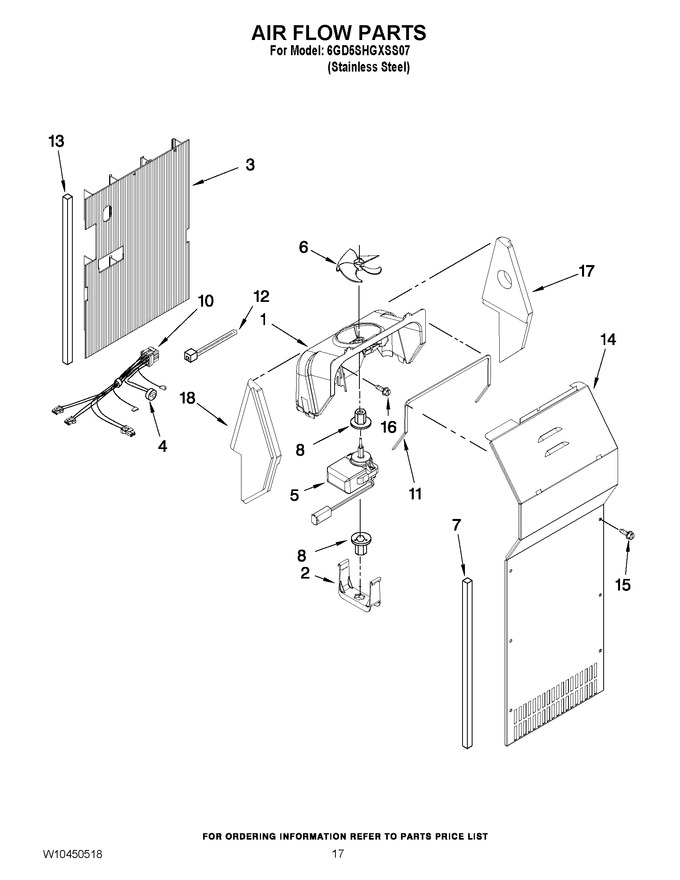

09 - Air Flow Parts


10 - Control Parts


11 - Icemaker Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2182120		Fan Scroll   (Replaces: 2182120)			Immediately	$ 105.81
2	2155590		Retainer Fan Motor				$ 5.83
3	W10756902		Air Duct Freezer   (Replaces: W10166222)		Appelez-nous	-
4	W10129958		Bi-metal, Defrost		Appelez-nous	-
5	WP2321275		Fan Motor   (Replaces: 2321275)				$ 286.94
6	WP2169142		Fan Blade   (Replaces: 2169142)			Immediately	$ 39.07
7	WP2304241		Gasket, Evaporator Cover (2)   (Replaces: 2304241)			Immediately	$ 78.25
8	WP2176759		Fan Grommet (2)   (Replaces: 2176759)				$ 7.34
10	W10242395		Harness, Fan Evaporator		Appelez-nous	-
11	WP2155789		Gasket, Fan Scroll   (Replaces: 2155789)				$ 7.36
12	WPW10339879		Wire Tie   (Replaces: 2172840)				$ 7.47
13	4388500		Gasket   (Replaces: W10252477)				$ 85.42
14	2203841		Cover, Evaporator (includes No.7)		Appelez-nous	-
15	WP3196557		Screw (6)   (Replaces: W10142284)			Immediately	$ 7.16
16	W10142289		Screw				$ 8.65
17	4388358		Support, R.s.   (Replaces: 2203595)				$ 29.45
18	4388358		Support, L.s.   (Replaces: 2203596)				$ 29.45
