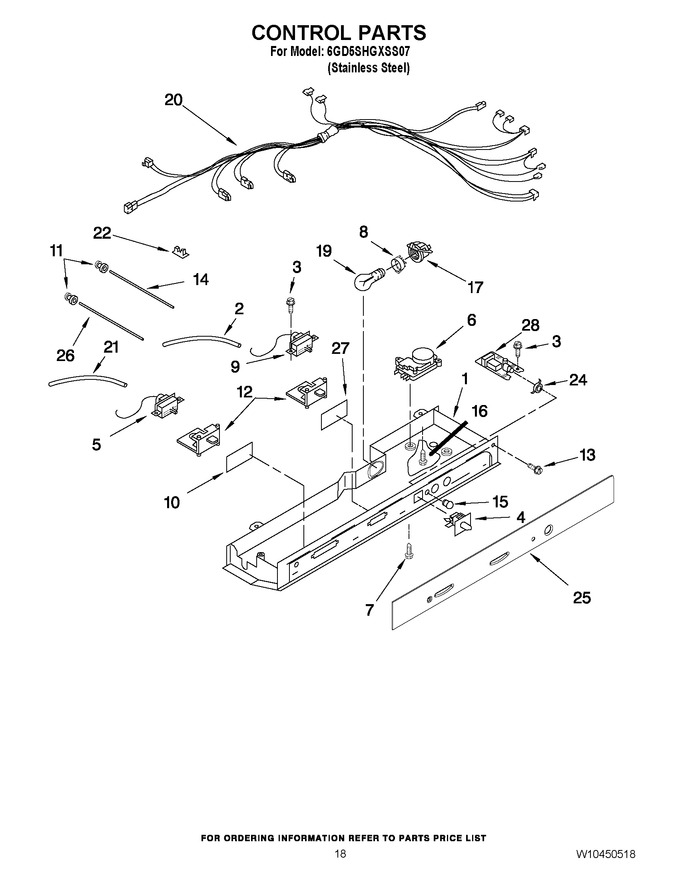

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2200135		Control Box		Appelez-nous	-
2	WP2196003		Tube Barrier, Thermostat (rc)   (Replaces: 2182150)				$ 7.52
3	2006254		Screw   (Replaces: 489214)				$ 12.41
4	WP2149705		Light Switch   (Replaces: 2321287)			Immediately	$ 41.09
5	WP2321289		Thermostat (fc)   (Replaces: 2321289)				$ 217.53
6	WP2188379		Defrost Timer   (Replaces: 2321261)				$ 182.76
7	489392		Screw (2)   (Replaces: 489398)				$ 12.62
8	W10119914		Shroud, Light		Appelez-nous	-
9	WP2321305		Thermostat (rc)   (Replaces: 2321305)				$ 228.45
10	2172940		Window		Appelez-nous	-
11	2172906		Grommet, Light Bar		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 20.05
13	WP489464		Screw (2)   (Replaces: 3400896)			Immediately	$ 7.54
14	2179920		Light Bar (rc)				$ 37.08
15	2200096		Cover, Light Lens				$ 64.10
16	WP488488		Screw   (Replaces: 489290)				$ 7.67
17	W11447232		Light Socket   (Replaces: W10134764)			Immediately	$ 12.48
19	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 11.11
20	W10123600		Control Box Harness		Appelez-nous	-
21	WP2196003		Tube Barrier, Thermostat (fc)   (Replaces: 2196003)				$ 7.52
22	1115375		Clip-wiring				$ 11.15
24	2200097		Retainer, Light Lens		Appelez-nous	-
25	W10124266		Cover, Front Control		Appelez-nous	-
26	2179921		Light Bar (fc)		Appelez-nous	-
27	2172941		Window		Appelez-nous	-
28	W10141368		P.c. Board Filter Indicator		Appelez-nous	-
