SELECT A DIAGRAM

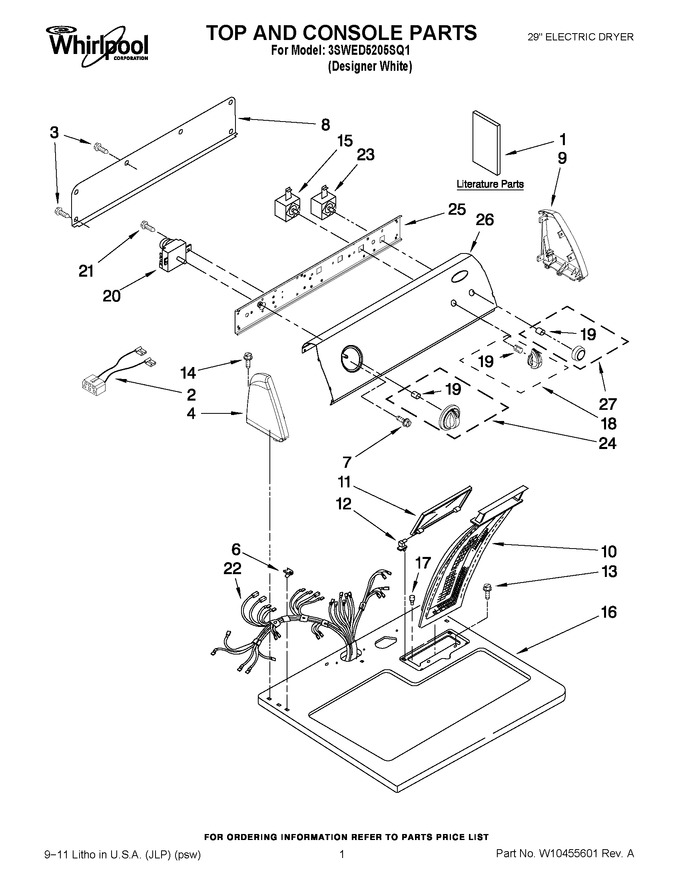

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10110520		Use & Care Guide		Appelez-nous	-
1	3397627		Installation Instructions		Appelez-nous	-
1	W10396177		Wiring Diagram		Appelez-nous	-
2	3976565		Wire Jumper		Appelez-nous	-
3	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
4	8271369		Cap, End (l.h.)		Appelez-nous	-
6	WP357213		Nut,push-in   (Replaces: 357213)				$ 7.76
7	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
8	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
9	8271363		Cap, End (r.h.)		Appelez-nous	-
10	WP349639		Handle & Lint Screen Assembly   (Replaces: 349639)			Immediately	$ 46.07
11	8283378		Cover, Lint Screen				$ 44.80
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 8.11
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 8.11
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
15	3399638		Switch, Temperature				$ 136.24
16	8271390		Top		Appelez-nous	-
17	297535		Bumper, Lint Lid		Appelez-nous	-
18	8565944		Knob, Control				$ 25.10
19	WP8536939		Spring Clip   (Replaces: 8536939)			Immediately	$ 8.20
20	3396215		Timer 60 Hz.				$ 180.59
21	WP90767		Screw, 8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
22	W10386330		Harness, Wiring		Appelez-nous	-
23	WP3395382		Switch, Push-to-start   (Replaces: 3395382)			Immediately	$ 50.15
24	8566061		Knob, Timer				$ 26.93
25	8544895		Bracket, Control		Appelez-nous	-
26	W10095990		Panel, Control		Appelez-nous	-
27	WP8566065		Knob, Push-to-start   (Replaces: 8566065)				$ 55.30

    View Diagram in Separate Window       Print Part List
