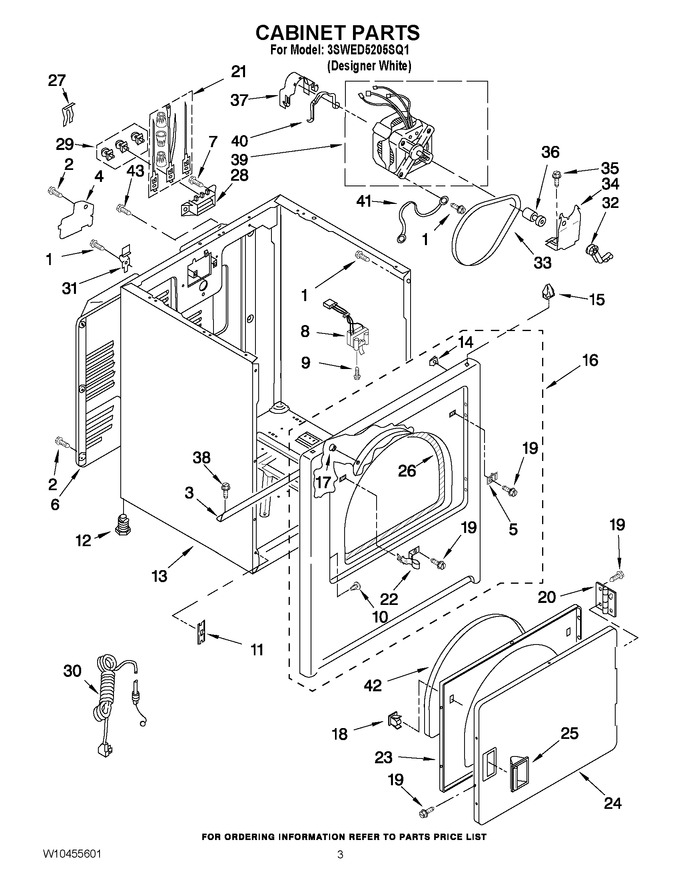

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 2 | WP693995 | Screw, 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 3 | W10236073 | Bracket, Cabinet |
|
- | |||||
| 4 | W11539855 | Cover, Terminal Block (Replaces: 3396795) |
|
Immediately | $ 566.78 | ||||
| 5 | WP3403630 | Plug, Strike Hole (Replaces: 3403630) |
|
$ 7.12 | |||||
| 6 | 280043 | Panel, Rear (Replaces: 3396805) |
|
$ 322.53 | |||||
| 7 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 8 | WPW10237959 | Switch, Door (Replaces: 3406109) |
|
Immediately | $ 56.37 | ||||
| 9 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 7.71 | |||||
| 10 | WP3404413 | Plug, Hinge Hole (Replaces: 3404413) |
|
Immediately | $ 7.52 | ||||
| 11 | W10854425 | Clip, Front Panel (Replaces: 3394083) |
|
Immediately | $ 14.71 | ||||
| 12 | 49621 | Foot (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 13 | 8533643 | Cabinet (includes Illus. 4) (Replaces: 8530603) |
|
$ 377.30 | |||||
| 14 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 10.76 | ||||
| 15 | WP18776 | Lock, Front Top (Replaces: 690363) |
|
Immediately | $ 11.98 | ||||
| 16 | W10806345 | Front Panel Assembly (Replaces: W10224853) |
|
$ 219.94 | |||||
| 17 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 21.20 | |||||
| 18 | WP3389441 | Catch, Door (Replaces: 3389441) |
|
Immediately | $ 6.56 | ||||
| 19 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 7.30 | |||||
| 20 | WPW10362431 | Hinge & Pin Assembly (Replaces: W10362431) |
|
Immediately | $ 7.45 | ||||
| 21 | 279318 | Terminal, Tinned & Brass (includes Illus. 42) |
|
Immediately | $ 95.44 | ||||
| 22 | W11429589 | Strike, Door (Replaces: 3403431) |
|
Immediately | $ 18.89 | ||||
| 23 | WP3402341 | Door, Rear (Replaces: 3402341) |
|
$ 187.84 | |||||
| 24 | W10861227 | Door, Front (Replaces: 3402335) |
|
$ 242.33 | |||||
| 25 | WP3405184 | Handle, Door (Replaces: 3405184) |
|
$ 71.83 | |||||
| 26 | W11035878 | Seal & Bearing Assembly (Replaces: 3406129) |
|
Immediately | $ 83.41 | ||||
| 27 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 6.99 | ||||
| 28 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 21.75 | |||||
| 29 | 279393 | Terminal Block Kit (for Terminal Block ) |
|
Immediately | $ 50.09 | ||||
| 30 | W10109720 | Cord, Power |
|
- | |||||
| 31 | WP8066217 | Hinge, Top (Replaces: 8066217) |
|
$ 7.39 | |||||
| 32 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 20.22 | ||||
| 33 | 341241 | Belt, Drive (Replaces: 8066065) |
|
Immediately | $ 16.34 | ||||
| 34 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 114.89 | ||||
| 35 | 3400500 | Bolt, 5/16-18 X 3/4 |
|
Immediately | $ 12.64 | ||||
| 36 | W11618508 | Pulley, 50 Hz. (Replaces: 685064) |
|
$ 328.97 | |||||
| 37 | WP3404162 | Clamp, Motor (Replaces: 3404162) |
|
Immediately | $ 7.39 | ||||
| 38 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 3390631) |
|
$ 7.43 | |||||
| 39 | W11618508 | Motor Assembly, 50/60 Hz. (Replaces: W10289660) |
|
$ 328.97 | |||||
| 40 | WPW10121316 | Clip, Motor (Replaces: W10121316) |
|
Immediately | $ 24.26 | ||||
| 41 | 690236 | Wire, Ground |
|
- | |||||
| 42 | W10861521 | Seal, Door (Replaces: 3405246) |
|
Immediately | $ 61.07 | ||||
| 43 | W10850756 | Screw, 10-32 X 1/2 (Replaces: 8533974) |
|
$ 7.38 |
