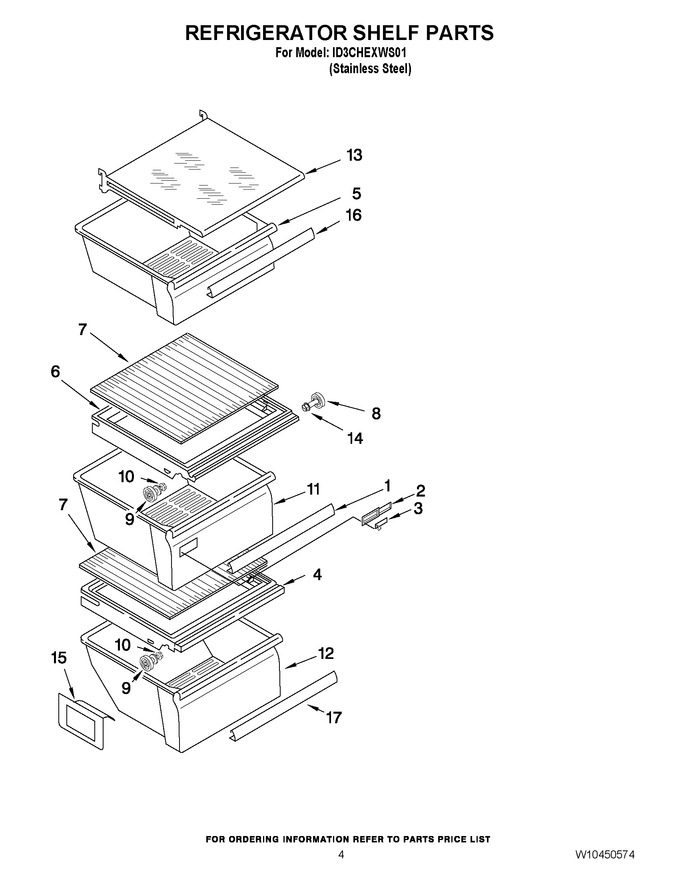

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2179234 | Trim, Crisper Pan (Replaces: 2255593) |
|
$ 79.71 | |||||
| 2 | WP2179343 | Body, Humidity (Replaces: 2179343) |
|
$ 30.62 | |||||
| 3 | WP2179342 | Slide, Humidity (Replaces: 2179342) |
|
$ 27.54 | |||||
| 4 | WPW10270150 | Cover, Meat Pan (includes Items 8, 9, 10, & 15) (Replaces: W10270150) |
|
$ 323.61 | |||||
| 5 | W11497323 | Snack Pan (Replaces: 2188655) |
|
$ 211.36 | |||||
| 6 | W10508993 | Cover, Crisper (Replaces: 2209698) |
|
$ 275.27 | |||||
| 7 | W10864399 | Glass, Cover (Replaces: 2179259) |
|
$ 208.83 | |||||
| 8 | 2174478 | Eyelet, Roller |
|
$ 5.70 | |||||
| 9 | 2188212 | Roller |
|
- | |||||
| 10 | WPW10272364 | Screw (Replaces: 489211) |
|
Immediately | $ 10.22 | ||||
| 11 | WP2188656 | Crisper Pan (Replaces: 2188652) |
|
$ 128.90 | |||||
| 12 | 2318569 | Meat Pan |
|
$ 73.60 | |||||
| 13 | W10235943 | Shelf And Frame Assembly (3) |
|
$ 318.20 | |||||
| 14 | WP489261 | Screw (Replaces: 489261) |
|
$ 7.50 | |||||
| 15 | 2223487 | Deflector |
|
$ 83.68 | |||||
| 16 | WP2179243 | Trim, Snack Pan (Replaces: 2179243) |
|
$ 98.69 | |||||
| 17 | 2203029 | Trim, Meat Pan |
|
$ 85.47 |
