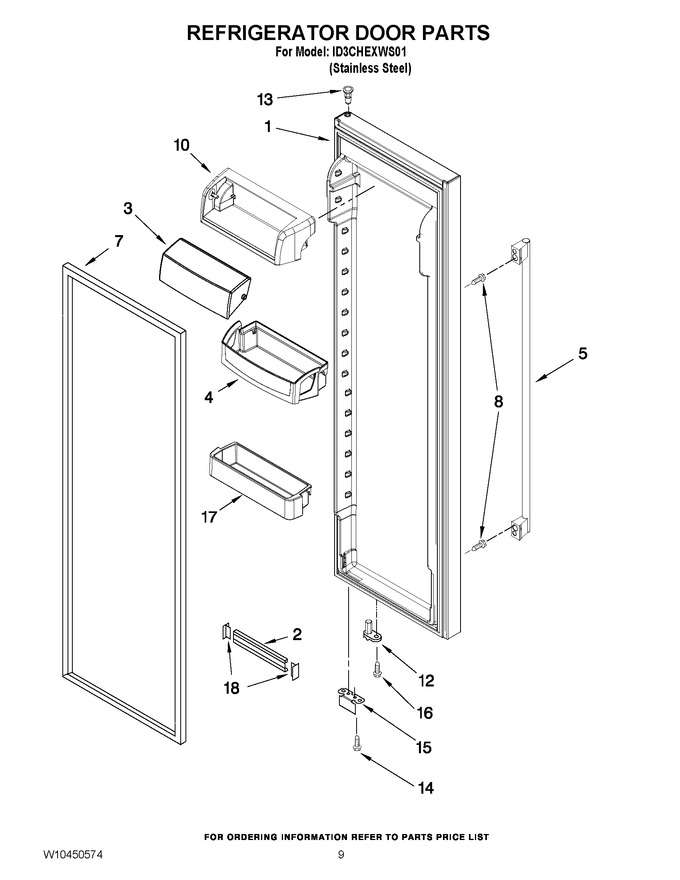

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10257860 | Refrigerator Door (includes No.7) (stainless Steel) |
|
- | |||||
| 2 | 2203087 | Trim, Shelf |
|
$ 42.91 | |||||
| 3 | 2255421 | Dairy Door |
|
$ 34.76 | |||||
| 4 | WPW10321304 | Door Bin (Replaces: 2304235) |
|
Immediately | $ 40.46 | ||||
| 5 | WPW10202821 | Handle Assy (stainless) (Replaces: W10202821) |
|
$ 274.10 | |||||
| 7 | 2223911 | Door Gasket, Magnetic (black) |
|
- | |||||
| 8 | WPW10170540 | Screw, Handle (Replaces: W10170540) |
|
Immediately | $ 9.12 | ||||
| 10 | 2223879 | Dairy Compartment |
|
$ 40.49 | |||||
| 12 | 2307048 | Door Closer, Upper Cam |
|
- | |||||
| 13 | WP2182181 | Thimble-top (Replaces: 2308091) |
|
$ 7.34 | |||||
| 14 | WPW10142233 | Screw (Replaces: W10142233) |
|
$ 8.04 | |||||
| 15 | 2306940B | Bracket, Door Stop (black) |
|
$ 35.07 | |||||
| 16 | WP3400012 | Screw (Replaces: W10142285) |
|
$ 7.43 | |||||
| 17 | WP2224173 | Door Bin, Shallow (Replaces: 2224173) |
|
$ 82.52 | |||||
| 18 | WP2156006 | Plug, Trim (Replaces: 2156006) |
|
Immediately | $ 11.51 |
