SELECT A DIAGRAM

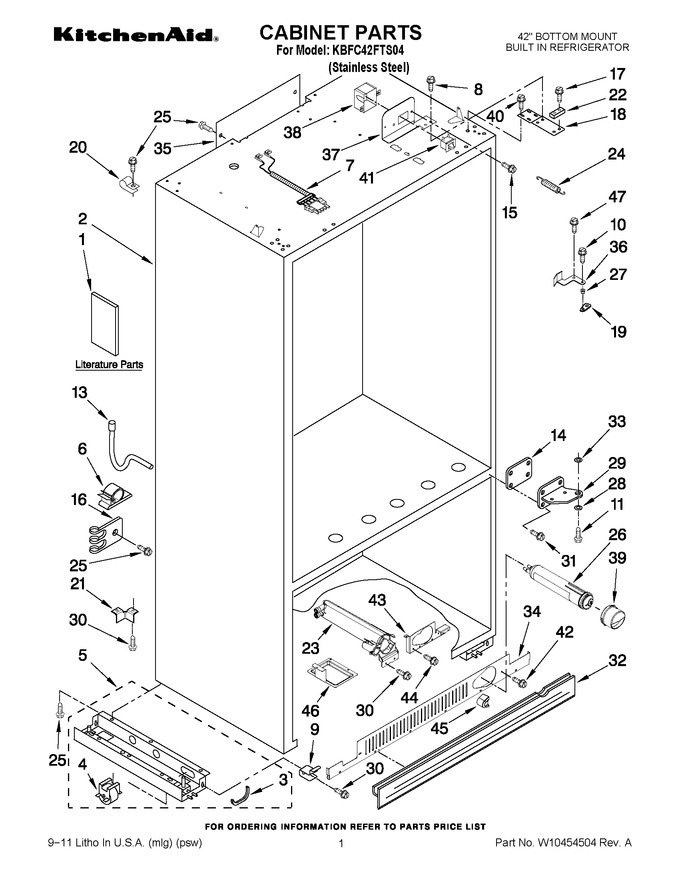

01 - Cabinet Parts


02 - Cabinet And Breaker Trim Parts


03 - Top Grille And Unit Cover Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner Parts


06 - Shelf Parts


07 - Refrigerator Door Parts


08 - Freezer Door And Basket Parts


09 - Upper Unit Parts


10 - Lower Unit And Tube Parts


11 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10303987		Use & Care Guide		Appelez-nous	-
1	W10205809		Energy Guide		Appelez-nous	-
1	W10159834		Service & Wiring Sheet		Appelez-nous	-
1	2317849		Main Control Service Sheet		Appelez-nous	-
1	2317840		Modular Icemaker Service Sheet		Appelez-nous	-
1	W10379132		Installation Instructions		Appelez-nous	-
2	N/P		Cabinet (not Serviced)		Appelez-nous	-
3	2307584		Grommet, Crossover Tube (left Side Only)				$ 21.06
4	WPW10138054		Roller, Front & Rear   (Replaces: W10138054)				$ 40.81
5	W10860448		Support, Leveler Assembly (includes Items 3 & 4) (right Side)   (Replaces: W10138423)			Immediately	$ 344.70
5	W10860229		Support, Leveler Assembly (includes Items 3 & 4) (left Side)   (Replaces: W10279275)				$ 343.65
6	2004514		Clip-conduit		Appelez-nous	-
7	2187946		Wire Assembly, Light Switch				$ 87.94
8	WP8281164		Screw 8-32 X 3/8   (Replaces: 8281164)				$ 10.20
9	W10839844		Mounting Bracket, Grille   (Replaces: 2307640)				$ 38.93
10	W11177574		Screw 10-32 X .564   (Replaces: W10004850)				$ 13.36
11	WP488234		Screw,8-32x1/4   (Replaces: 488234)				$ 6.37
13	2314064		Tube, Drain				$ 84.49
14	2207470		Shim, Hinge			Immediately	$ 47.04
15	WP965173		Screw,8-18 X 3/8   (Replaces: 487415)			Immediately	$ 10.68
16	WP488366		Clip, Water Tube   (Replaces: 2208136)				$ 10.73
17	W11227370		Screw 8-32 X 1/2   (Replaces: W10005070)			Immediately	$ 13.42
18	W11218690		Hinge, Door Refrigerator Top   (Replaces: 2316759)			Immediately	$ 70.46
19	WP2320509		Cam-closer, Door   (Replaces: 2320509)				$ 26.96
20	W10331955		Clamp, Tube		Appelez-nous	-
21	2006617		Bracket, Support Base		Appelez-nous	-
22	W11403572		Stop, Door   (Replaces: 2316758)			Immediately	$ 63.43
23	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 243.77
24	W11805224		Spring, Door Closure   (Replaces: 2221242)		Appelez-nous	-
25	W11624204		Screw 8-15 X .530   (Replaces: 486194)				$ 13.25
26	EDR3RXD1B		Filter, Water   (Replaces: 4396841)			Immediately	$ 49.99
27	WP2316859		Bushing-arm, Extension   (Replaces: 2316859)			Immediately	$ 48.78
28	WP2004994		Bushing, Hinge (lock-adjustable)   (Replaces: 2004994)			Immediately	$ 7.55
29	W10337505		Hinge, Center Refrigerator Door			Immediately	$ 127.19
30	WP489464		Screw 8-18 X 1/2   (Replaces: W10001250)			Immediately	$ 7.54
31	W11474472		Screw 10-32 X 5/8   (Replaces: W10162602)			Immediately	$ 7.77
32	2209025B		Skirt, Grille Bottom				$ 48.90
33	2314023		Bushing, Hinge				$ 43.80
34	2325188B		Grille Base, Front				$ 70.00
35	W10426957		Cover-assy, Air Duct		Appelez-nous	-
36	W11298172		Arm, Extension (left)   (Replaces: 2266881)			Immediately	$ 78.69
36	W10847927		Arm, Extension (right)   (Replaces: 2266882)				$ 89.92
37	2221096		Bracket, Switch (left)				$ 88.07
37	W10741111		Bracket, Switch (right)   (Replaces: 2221097)				$ 60.63
38	2215938		Cover, Switch				$ 85.30
39	WP2260518B		Cap, Water Filter   (Replaces: 2260518B)			Immediately	$ 30.56
40	W11721628		Screw 1/4-20 X 5/8   (Replaces: 8533913)			Immediately	$ 13.30
41	W11384469		Switch, Rocker Arm   (Replaces: 1118894)			Immediately	$ 35.18
42	WP489464		Screw, 8-18 X 1/2   (Replaces: W10005050)			Immediately	$ 7.54
43	W11755873		Bracket, Mounting (filter)   (Replaces: W10348782)				$ 72.30
44	WP8281163		Screw, 8-16 X 1/2   (Replaces: 8281163)			Immediately	$ 9.63
45	WP2260503B		Button, Filter   (Replaces: 2260503B)				$ 68.78
46	2318189		Tray, Drip Filter				$ 133.86
47	WP8533980		Screw 8-32 X .437   (Replaces: 8533980)			Immediately	$ 77.98

    View Diagram in Separate Window       Print Part List
