Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2316737S Top Grille Assy (includes Items 6, 7 & 8) Appelez-nous -
2 W10161693 Cover, Unit (includes Item 11) Appelez-nous -
3 2256466 Back Panel Special Order $ 294.50

4 W10185625 Front, Unit Cover Special Order $ 262.53

5 WP489069 Screw, 8-18 X 3/8   (Replaces: 1157158) In-Stock Immediately $ 7.56

6 2317923S Nameplate Appelez-nous -
7 WP489399 Screw, 8-32 X .312   (Replaces: 489399) Special Order $ 6.57

8 WP2004333 Nut   (Replaces: 2004333) Special Order $ 10.12

9 2215910 Grommet Special Order $ 84.89


    View Diagram in Separate Window     Print Icon   Print Part List

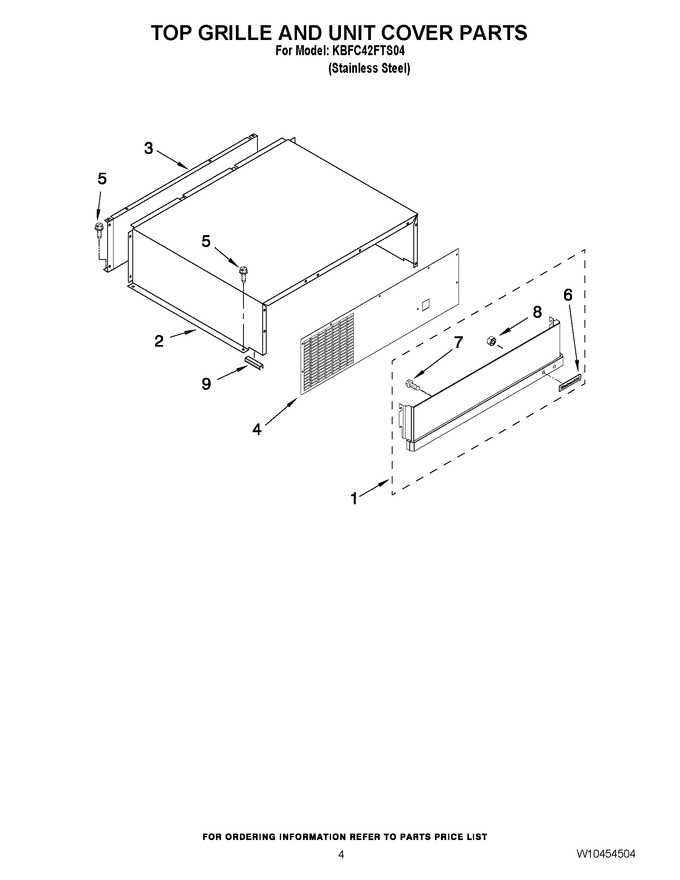

Diagram for KBFC42FTS04
