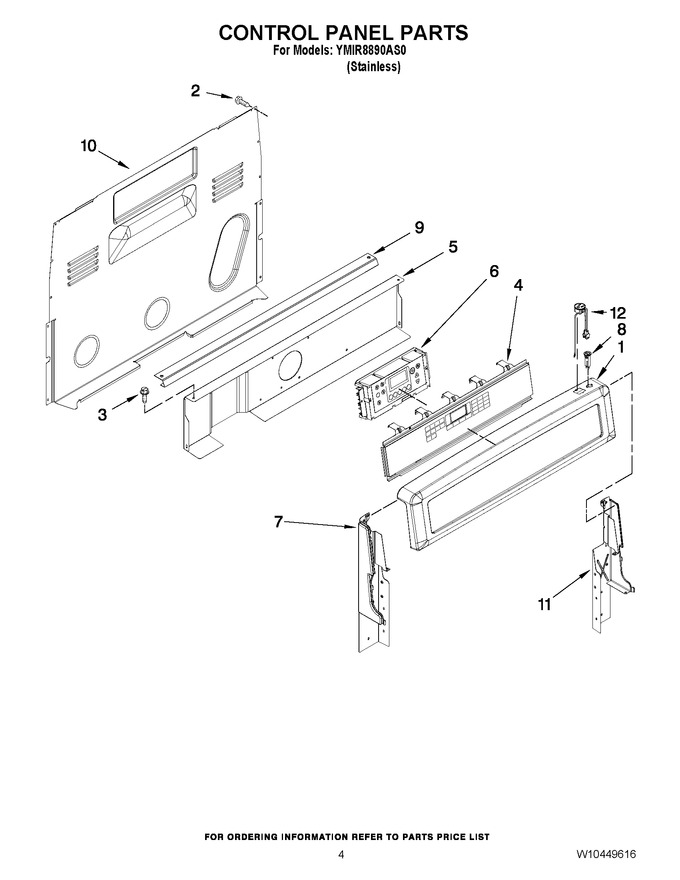

01 - Cooktop Parts
02 - Interior Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10225557 | Panel, Backguard (stainless Steel) (Replaces: W10225557) |
|
$ 167.16 | |||||
| 2 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 3 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 4 | W10339441 | Active Overlay |
|
$ 269.70 | |||||
| 5 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 6 | WPW10349522 | Control (Replaces: W10349522) |
|
$ 424.80 | |||||
| 7 | W11219664 | End Cap, Left (black) (Replaces: W10184437) |
|
Immediately | $ 138.45 | ||||
| 8 | WP9757602 | Breaker (Replaces: 9757602) |
|
Immediately | $ 54.82 | ||||
| 9 | W10525121 | Bracket Console Mounting (Replaces: W10182322) |
|
$ 88.97 | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | N/P | End Cap, (right) |
|
- | |||||
| 12 | W11219665 | Black (Replaces: W10184438) |
|
Immediately | $ 40.65 | ||||
| 12 | W10861164 | Receptacle (Replaces: W10203475) |
|
Immediately | $ 16.62 |
