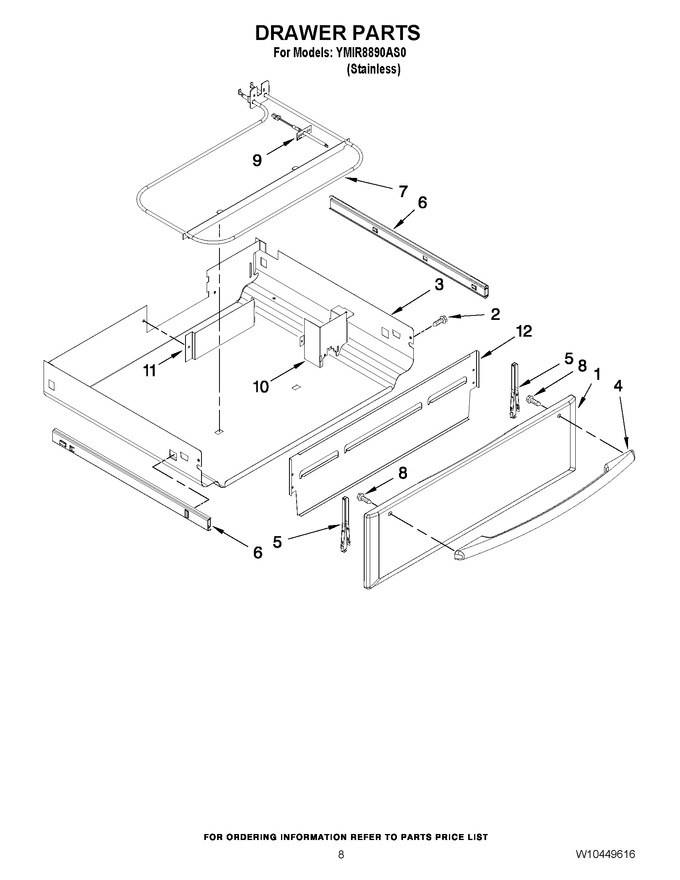

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10432480 | Panel, Drawer (stainless) (Replaces: W10432480) |
|
$ 218.24 | |||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 3 | W10813962 | Drawer, Storage (Replaces: W10300032) |
|
Immediately | $ 124.34 | ||||
| 4 | WPW10161708 | Handle, Drawer (stainless) (Replaces: W10161708) |
|
$ 335.71 | |||||
| 5 | WPW10318027 | Bracket, Drawer (Replaces: W10318027) |
|
$ 108.14 | |||||
| 6 | WPW10441805 | Slide, Drawer (right Hand) (Replaces: W10441805) |
|
Immediately | $ 97.32 | ||||
| 6 | WPW10441804 | Slide, Drawer (left Hand) (Replaces: W10441804) |
|
Immediately | $ 97.38 | ||||
| 7 | WPW10323181 | Element, Warm (Replaces: W10323181) |
|
$ 118.87 | |||||
| 8 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 7.90 | ||||
| 9 | WPW10131827 | Sensor (Replaces: W10131827) |
|
$ 248.02 | |||||
| 10 | W10634259 | Cover, Wire (Replaces: W10323358) |
|
$ 79.06 | |||||
| 11 | W10325438 | Cover, Panel |
|
$ 141.29 | |||||
| 12 | W10324878 | Door, Inner |
|
- |
