SELECT A DIAGRAM

01 - Cover Sheet

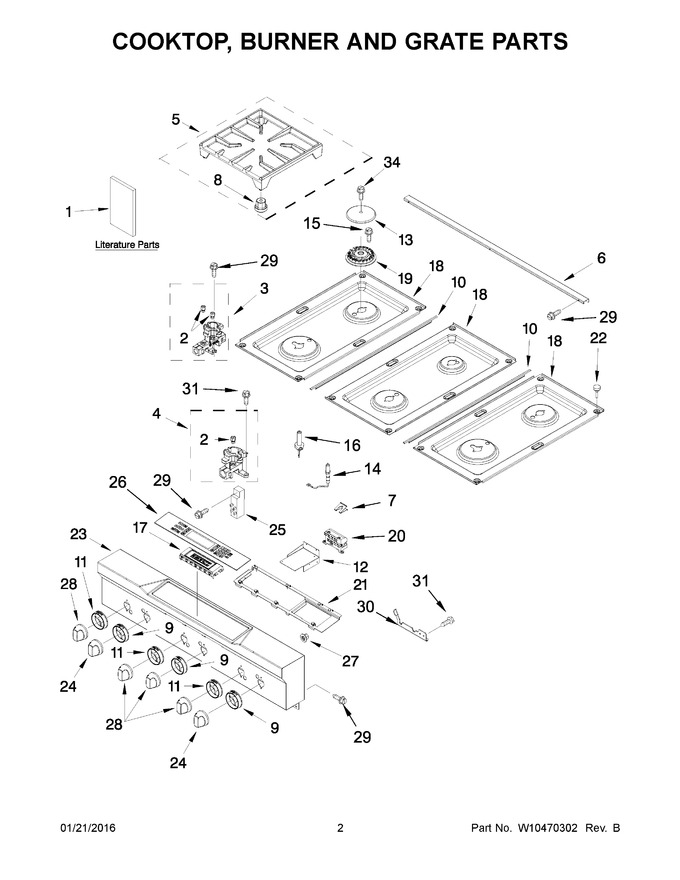

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switch Parts


04 - Chassis Parts


05 - Oven Parts


06 - Top Venting Parts


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403299		Sheet, Tech (english)		Appelez-nous	-
2	W10340424		Orifice (17k) (left Front & Right Front, High)				$ 84.30
3	WPW10364555		Assembly, Orifice Holder (left Front & Right Front)   (Replaces: W10364555)				$ 102.08
4	WPW10364556		Assembly, Orifice Holder (left Rear, Right Rear & Center Front)   (Replaces: W10364556)				$ 92.15
5	WPW10115928		Grate, Burner   (Replaces: W10115928)				$ 181.27
6	W10269217		Trim, Island (stainless)				$ 277.64
7	8286863		Spring, Electrode				$ 69.23
8	W10185266		Bumper, Grate   (Replaces: 8286695)			Immediately	$ 13.92
9	W10261510		Bezel, Front				$ 49.60
10	W10271524		T-strip				$ 191.11
11	W10261512		Bezel, Rear		Appelez-nous	-
12	W10498407		Bracket, Spark Module				$ 71.07
13	WPW10256034		Cap, Burner (black (left Front & Right Front))   (Replaces: W10256034)				$ 124.37
14	W10854967		Wiring, Electrode   (Replaces: 8286725)			Immediately	$ 43.54
15	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
16	W10833887		Electrode, Burner   (Replaces: W10256047)			Immediately	$ 45.59
17	W10533029		Interface, User				$ 565.94
18	W10352969		Cooktop (black (left))				$ 302.18
19	W11106799		Spreader, Flame (left Front & Right Front)   (Replaces: W10495853)			Immediately	$ 87.49
20	WPW10475147		Module, Spark   (Replaces: W10475147)			Immediately	$ 346.50
21	W10250477		Bracket, User Interface		Appelez-nous	-
22	4448520		Bumper, Door				$ 20.03
23	W10115886		Panel, Control				$ 322.92
24	W11244176		Knob   (Replaces: W10250389)				$ 70.53
25	W11601369		Reignitor   (Replaces: W10116108)			Immediately	$ 75.04
26	W10116103		Keypad				$ 390.11
27	7103P166-60		Nut				$ 16.70
28	W11177673		Knob   (Replaces: W10250391)				$ 81.50
29	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 13.25
30	W10130760		Bracket, Moving Console (left)				$ 68.35
31	WP74003976		Screw   (Replaces: 7101P500-60)				$ 6.80
13A	WPW10256032		Cap, Burner (black (left Rear, Right Rear & Center Front))   (Replaces: W10256032)			Immediately	$ 79.54
13B	WPW10364463		Cap, Burner (black (center Rear))   (Replaces: W10364463)			Immediately	$ 50.27
18A	W10352967		Cooktop (black (right))				$ 303.53
18B	W10352966		Cooktop (black (center))				$ 288.39
19A	WPW10256027		Spreader, Flame (left Rear, Right Rear & Center Front)   (Replaces: W10256027)			Immediately	$ 90.92
19B	WPW10282515		Spreader, Flame (center Rear)   (Replaces: W10282515)			Immediately	$ 134.88
1A	W10403300		Sheet, Tech (french)		Appelez-nous	-
1B	W10399383		Guide, Use & Care		Appelez-nous	-
1C	W10526083		Instructions, Installation		Appelez-nous	-
1D	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1E	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2A	W10819958		Orifice (1.2k) (left Front & Right Front, Low)   (Replaces: W10256132)				$ 87.99
2B	W11051480		Orifice (15k) (left Rear, Right Rear & Center Front)   (Replaces: W10364221)				$ 81.62
2C	W10791075		Orifice (5k) (center Rear)   (Replaces: W10282663)				$ 93.31
30A	W10130759		Bracket, Moving Console (right)				$ 68.35
4A	W10282659		Assembly, Orifice Holder (center Rear)				$ 36.45
NI	WP112432		Nut, Hex   (Replaces: 112432)				$ 7.77
NI	4450800		Screw, Grounding				$ 12.12
NI	W10856625		Reducer, Stem   (Replaces: W10340850)				$ 170.31
NI	W10766100		Kit, Lp Conversion		Appelez-nous	-
NI	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 27.65
NI	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 53.89
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10146020		Harness, Communication				$ 127.18
NI	W10505490		Harness, Main				$ 291.84
NI	W10507834		Harness, Ignition				$ 181.90
NI	W10780278		Harness, Door Latch   (Replaces: W10345322)			Immediately	$ 86.28
NI	W10399614		Harness, Switch				$ 136.09
NI	W11321066		Cord, Power   (Replaces: W10624586)				$ 107.05
NI	WPW10049700		Filter   (Replaces: W10049700)				$ 328.87
NI	W10177363		Grommet, Flexible 60mm		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
NI	WP9759877		Retainer, Strain Relief   (Replaces: 9759877)				$ 18.19

    View Diagram in Separate Window       Print Part List
