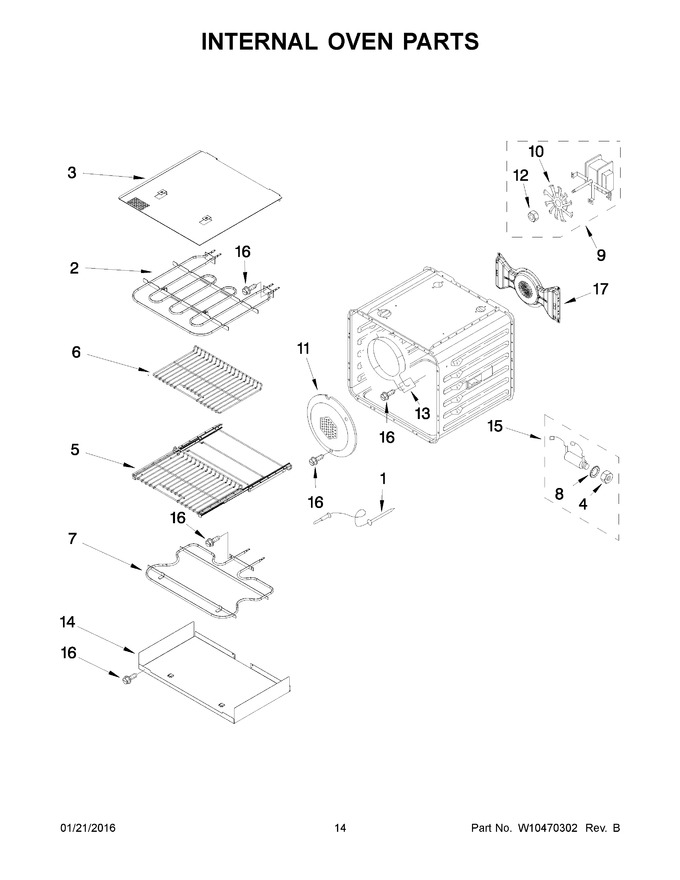

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 89.76 | ||||
| 2 | W10857686 | Element, Broil (Replaces: W10115991) |
|
$ 308.56 | |||||
| 3 | W10160857 | Shield, Broil Element |
|
$ 134.74 | |||||
| 4 | WP9755546 | Nut, Hidden (Replaces: 9755546) |
|
$ 6.57 | |||||
| 5 | W10570868 | Rack, Oven (sliding) |
|
$ 169.33 | |||||
| 6 | W10822069 | Rack, Oven (Replaces: W10570880) |
|
Immediately | $ 124.73 | ||||
| 7 | W10860270 | Element, Hidden Bake (Replaces: W10115992) |
|
Immediately | $ 182.03 | ||||
| 8 | WP9755547 | Washer, Lock (Replaces: 9755547) |
|
$ 5.77 | |||||
| 9 | W10860984 | Fan, Convection (Replaces: W10722667) |
|
Immediately | $ 191.93 | ||||
| 10 | W10819914 | Blade, Fan (Replaces: W10631503) |
|
Immediately | $ 79.80 | ||||
| 11 | W10261523 | Plate, Fan |
|
$ 70.07 | |||||
| 12 | W10794042 | Nut, Acorn (Replaces: W10631504) |
|
$ 11.83 | |||||
| 13 | W10116434 | Element, Convection |
|
$ 308.32 | |||||
| 14 | W10160872 | Tray, Hidden Bake |
|
$ 75.32 | |||||
| 15 | W10150011 | Jack, Meat Probe |
|
$ 190.68 | |||||
| 16 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 7.34 | |||||
| 17 | W10160879 | Baffle, Convection |
|
$ 71.06 |
