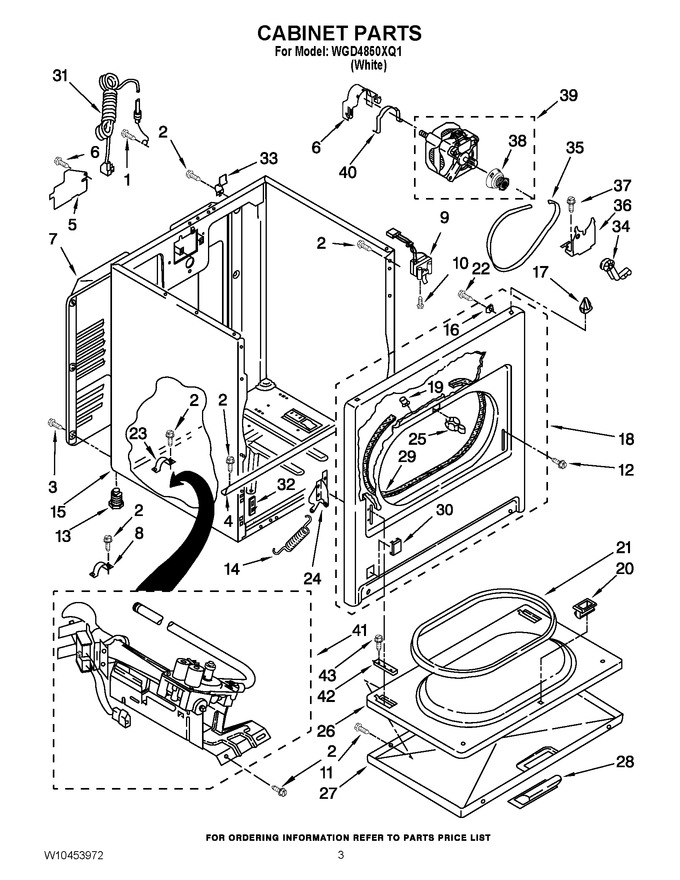

02 - Cabinet Parts
03 - Bulkhead Parts
04 - W10336852 Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10850756 | Screw, Ground (Replaces: 8533974) |
|
$ 7.38 | |||||
| 2 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 3390631) |
|
$ 7.43 | |||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 4 | W10236073 | Bracket, Cabinet |
|
- | |||||
| 5 | W11539855 | Cover, Block (Replaces: 3396795) |
|
Immediately | $ 566.78 | ||||
| 6 | WP3404162 | Clamp, Motor (w/shield) (Replaces: 3404162) |
|
Immediately | $ 7.39 | ||||
| 7 | 280043 | Panel, Rear (Replaces: 3396805) |
|
$ 322.53 | |||||
| 8 | 341029 | Clamp, Elbow (Replaces: 3980175) |
|
- | |||||
| 9 | WP3406107 | Door Switch Assembly (Replaces: 3406107) |
|
Immediately | $ 28.08 | ||||
| 10 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 7.71 | |||||
| 11 | WP488627 | Screw, 8-18 X 3/8 (Replaces: 342055) |
|
$ 7.30 | |||||
| 12 | 342043 | Screw, 10-32 X 3/8 |
|
- | |||||
| 13 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 14 | WPW10041960 | Plug, Hinge Hole (Replaces: W10041960) |
|
Immediately | $ 38.43 | ||||
| 15 | 8533643 | Cabinet (includes Illus. 4) (Replaces: 8530603) |
|
$ 377.30 | |||||
| 16 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 10.76 | ||||
| 17 | WP18776 | Lock, Front Top (2) (Replaces: 690363) |
|
Immediately | $ 11.98 | ||||
| 18 | 279740 | Panel, Front (Replaces: 3395197) |
|
$ 342.06 | |||||
| 19 | 279220 | Clip, Felt Pad (2) (Replaces: 685203) |
|
$ 21.20 | |||||
| 20 | WP3389441 | Catch, Door Assembly (Replaces: 3389441) |
|
Immediately | $ 6.88 | ||||
| 21 | W10906683 | Seal, Door (Replaces: 3390731) |
|
$ 121.46 | |||||
| 22 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 23 | 341029 | Clamp, Pipe |
|
- | |||||
| 24 | WP8066056 | Hinge, Door (r.h.) (Replaces: 8066056) |
|
Immediately | $ 93.02 | ||||
| 24 | WP8066057 | Hinge, Door (l.h.) (Replaces: 8066057) |
|
$ 90.86 | |||||
| 25 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 26 | WP695737 | Door, Rear (Replaces: 695737) |
|
$ 240.56 | |||||
| 27 | WP3393549 | Door, Front (Replaces: 3393549) |
|
$ 166.81 | |||||
| 28 | W10877261 | Handle, Door (Replaces: W10095180) |
|
$ 81.69 | |||||
| 29 | W11035878 | Seal & Bearing Assembly (Replaces: 3406129) |
|
Immediately | $ 87.58 | ||||
| 30 | W10811916 | Plug, Front Panel (Replaces: 8564457) |
|
$ 14.85 | |||||
| 31 | W11222083 | Cord, Power (Replaces: W10440460) |
|
$ 113.96 | |||||
| 32 | W10854425 | Clip, Front Panel (Replaces: 3394083) |
|
Immediately | $ 14.71 | ||||
| 33 | WP8066217 | Hinge, Top (2) (Replaces: 8066217) |
|
$ 7.39 | |||||
| 34 | WP691362 | Idler & Pulley Assembly (Replaces: 691362) |
|
$ 7.76 | |||||
| 35 | 341241 | Belt, Drive (Replaces: W10131364) |
|
Immediately | $ 16.34 | ||||
| 36 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 114.89 | ||||
| 37 | 3400500 | Bolt, 5/16-18 X 3/4 |
|
Immediately | $ 12.64 | ||||
| 38 | WP8066184 | Pulley, 60 Hz. (Replaces: 8066184) |
|
Immediately | $ 46.15 | ||||
| 39 | 279827 | Motor Assembly 60 Hz. (Replaces: W10194250) |
|
Immediately | $ 195.48 | ||||
| 40 | WPW10121316 | Clamp, Motor (Replaces: W10121316) |
|
Immediately | $ 24.26 | ||||
| 41 | W10823508 | Burner Assembly, 60 Hz. (see Pages 7 & 8 For Further Burner Breakdown) (Replaces: W10336852) |
|
$ 487.12 | |||||
| 42 | W11252547 | Hinge, Clip (Replaces: 337189) |
|
$ 20.21 | |||||
| 43 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| NI | 49621 | Foot, Optional (extended Length) (package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 |
