03 - Bulkhead Parts

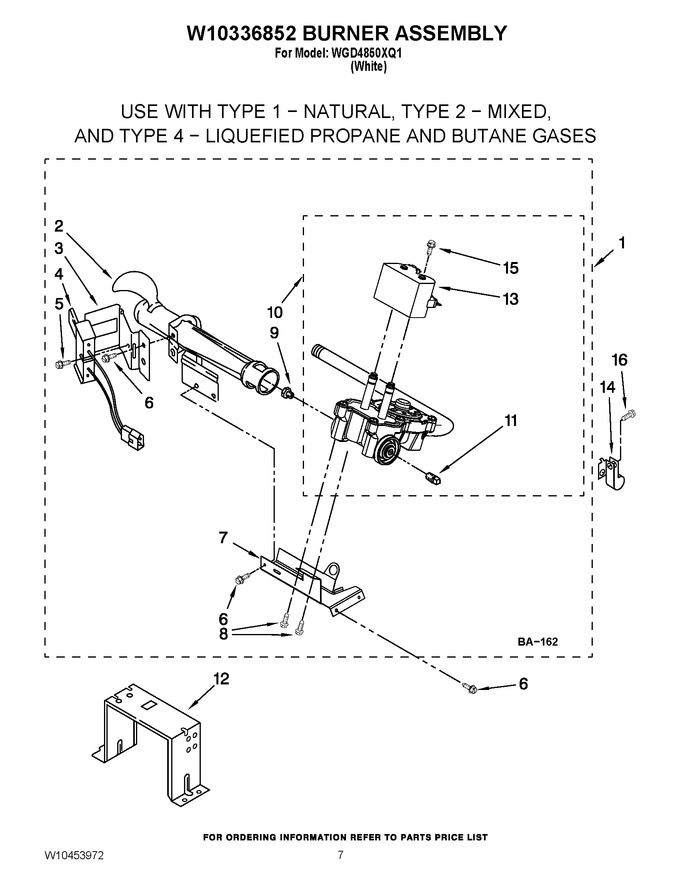

04 - W10336852 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10823508		Burner Assembly 60 Hz. (type 1 & 2)   (Replaces: W10336852)				$ 487.12
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 169.98
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 24.50
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 71.01
5	WPW10366705		Screw & Washer (8-32 X 5/8)   (Replaces: 3393909)				$ 7.09
6	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.62
7	693986		Base, Burner		Appelez-nous	-
8	WP693995		Screw, 8-18 X 3/8 (3)   (Replaces: 3387057)			Immediately	$ 6.80
9	WP234826		Orifice, Burner Type 1   (Replaces: 234826)				$ 35.34
10	279923		Valve, Gas 60 Hz. (complete) (includes Pipe & Illus. No. 7 )   (Replaces: W10304604)			Immediately	$ 257.43
11	W10295523		Plug, Pipe		Appelez-nous	-
12	3389888		Bracket, Support   (Replaces: 3389889)		Appelez-nous	-
13	WPW10328463		Coil, 60 Hz.   (Replaces: W10328463)			Immediately	$ 81.86
14	3978776		Clamp, Pipe		Appelez-nous	-
15	326049536		Screw, Coil		Appelez-nous	-
16	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.45
NI	49572A		Conversion Kit (type 1 And 2) To Type (4) L.p.g.			Immediately	$ 32.57
