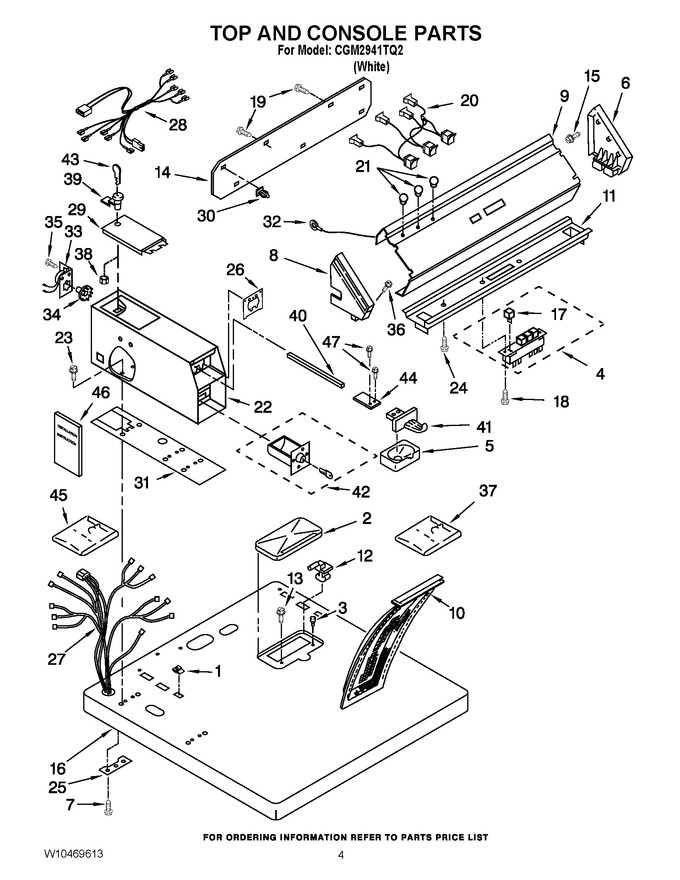

02 - Top And Console Parts
03 - Cabinet Parts
04 - Burner Assembly
05 - Optional Parts (notincluded)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP357213 | Nut, Push-in (Replaces: 357213) |
|
$ 7.76 | |||||
| 2 | 8283378 | Cover, Lint Screen |
|
$ 44.80 | |||||
| 3 | 297535 | Bumper, Lint Lid |
|
- | |||||
| 4 | WPW10330137 | Switch, Pushbutton (Replaces: W10330137) |
|
Immediately | $ 340.60 | ||||
| 5 | WP385421 | Funnel, Coin (Replaces: 385421) |
|
Immediately | $ 77.91 | ||||
| 6 | 3949737 | Cap, End (r.h.) |
|
$ 49.53 | |||||
| 7 | W10841059 | Screw, 10-16 X 3/4 (Replaces: 98445) |
|
- | |||||
| 8 | 3402631 | End Cap (l.h.) |
|
- | |||||
| 9 | W10127740 | Panel, Control |
|
- | |||||
| 10 | WP349639 | Screen, Lint (Replaces: 349639) |
|
Immediately | $ 46.07 | ||||
| 11 | 3398113 | Bracket, Control |
|
- | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 3978605) |
|
$ 8.11 | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 3978606) |
|
$ 8.11 | |||||
| 13 | W11693756 | Screw, 8-18 X 3/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | 3387978 | Panel, Rear Console |
|
- | |||||
| 15 | WPW10109200 | Screw, 11-16 X 5/8 (Replaces: 97787) |
|
Immediately | $ 8.80 | ||||
| 16 | 8527847 | Top |
|
- | |||||
| 17 | WPW10330137 | Pushbutton (Replaces: 8316433) |
|
Immediately | $ 340.60 | ||||
| 18 | WP489128 | Screw, 8-32 X 3/8 (Replaces: 303921) |
|
$ 11.40 | |||||
| 19 | WP693995 | Screw, 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 20 | 3401177 | Light, Indicator Assembly |
|
- | |||||
| 21 | WP3348109 | Lens, Amber (Replaces: 3348109) |
|
Immediately | $ 13.14 | ||||
| 22 | 3978748 | Case, Meter |
|
- | |||||
| 23 | W11715721 | Bolt, 5/16-24 X 1 (Replaces: 3349065) |
|
$ 7.48 | |||||
| 24 | WP3390631 | Screw, 10-16 X 1/32 (Replaces: 339554) |
|
$ 8.25 | |||||
| 25 | 3347825 | Plate-mounting |
|
- | |||||
| 26 | 279950 | Adapter Plate Chute Assembly (includes Illus. 5) (Replaces: 3954761) |
|
Immediately | $ 33.72 | ||||
| 27 | 8529862 | Harness, Wiring |
|
- | |||||
| 28 | 3401126 | Harness, Timer |
|
- | |||||
| 29 | W11283272 | Door, Service (Replaces: 3351136) |
|
$ 111.17 | |||||
| 30 | 689559 | Nut, Push In |
|
- | |||||
| 31 | WP3954812 | Cushion, Meter Case (Replaces: 3954812) |
|
$ 32.66 | |||||
| 32 | 690853 | Wire, Ground |
|
- | |||||
| 33 | W11451464 | Timer (includes 4-pin Cam) (Replaces: W10045440) |
|
Immediately | $ 373.49 | ||||
| 34 | WP3387974 | Timing Cam (3-pin (60 Min)) (Replaces: 3387974) |
|
$ 8.74 | |||||
| 34 | 51-161-6 | Timing Cam (6-pin (30 Min)) (Replaces: 343777) |
|
$ 34.52 | |||||
| 35 | 339805 | Screw, 10-32 X 3/16 |
|
$ 14.06 | |||||
| 36 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 9.29 | |||||
| 37 | WP3406965 | Kit, Vertical 8-coin (includes Illus. 39-41-42 44-45-46 & 47) (Replaces: 3954807) |
|
Immediately | $ 418.44 | ||||
| 38 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 9.09 | |||||
| 39 | W11315637 | Security Lock/key & Cam Assembly (Replaces: 8316526) |
|
Immediately | $ 76.34 | ||||
| 40 | WP8576635 | Bolt, Slide Mechanism (Replaces: 8318517) |
|
Immediately | $ 78.95 | ||||
| 41 | W11126319 | Slide Mechanism (vertical 8-coin) (Replaces: 8316520) |
|
Immediately | $ 337.72 | ||||
| 42 | W11190039 | Money Box W/lock (includes Key) (Replaces: 8316525) |
|
Immediately | $ 197.34 | ||||
| 43 | N/P | Key (service Door) (when Ordering Specify Vendor And Key Number) |
|
- | |||||
| 44 | 3390424 | Extension (Replaces: 8316523) |
|
Immediately | $ 71.66 | ||||
| 45 | 8316524 | Kit, Decal |
|
- | |||||
| 46 | 8316532 | Installation Instructions Coin Kit |
|
- | |||||
| 47 | 3400086 | Screw, 10-32 X 3/8 |
|
$ 12.77 | |||||
| NI | W11312584 | (dollar Vend) Inserts (not Shown) (blank) (Replaces: 8316264) |
|
$ 32.97 | |||||
| NI | 8316265 | (dollar Vend) Inserts (not Shown) (25ยข) |
|
- |
