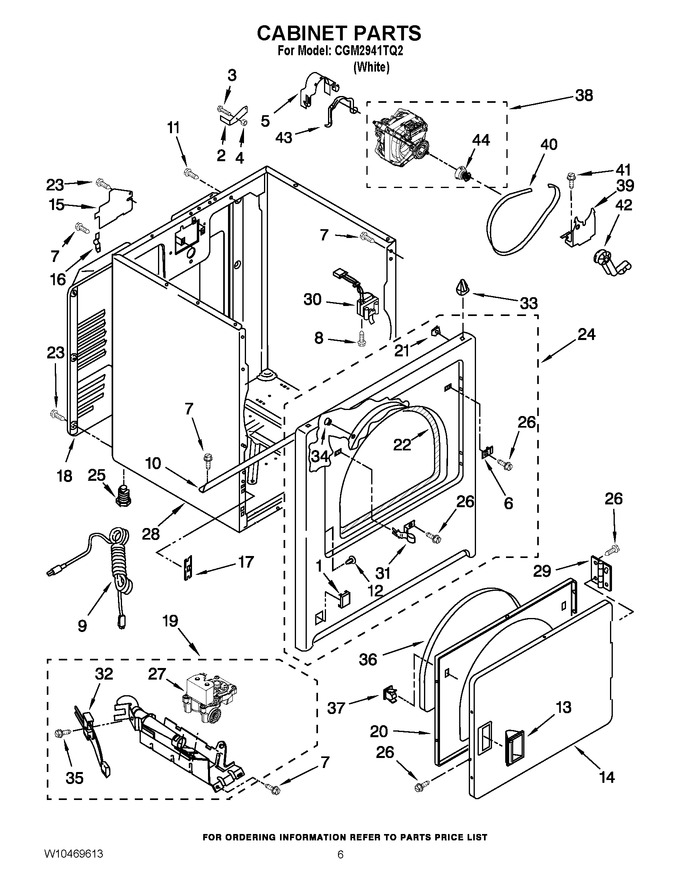

03 - Cabinet Parts
04 - Burner Assembly
05 - Optional Parts (notincluded)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10811916 | Plug, Front Panel (Replaces: 8564457) |
|
$ 14.85 | |||||
| 2 | 3954895 | Bracket, Top Lock |
|
- | |||||
| 3 | 354730 | Bolt, 5/16-18 X 2 3/4 |
|
- | |||||
| 4 | 90984 | Nut |
|
- | |||||
| 5 | WP3404162 | Clamp, Motor (w/shield) (Replaces: 3404162) |
|
Immediately | $ 7.39 | ||||
| 6 | WP3403630 | Plug, Strike (Replaces: 3403630) |
|
$ 7.12 | |||||
| 7 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 3390631) |
|
$ 7.43 | |||||
| 8 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 7.71 | |||||
| 9 | W11222083 | Cord, Power (Replaces: W10440461) |
|
$ 113.96 | |||||
| 10 | W10236073 | Bracket, Cabinet |
|
- | |||||
| 11 | W10850756 | Screw, 10-32 X 5/8 (grounding) (Replaces: 8533974) |
|
$ 7.38 | |||||
| 12 | WP3404413 | Plug, Hinge Hole (Replaces: 3404413) |
|
Immediately | $ 7.52 | ||||
| 13 | WP3405184 | Handle, Door (Replaces: 3405184) |
|
$ 71.83 | |||||
| 14 | W10861227 | Door, Front (Replaces: 3402335) |
|
$ 242.33 | |||||
| 15 | W11539855 | Cover, Block (Replaces: 3396795) |
|
Immediately | $ 566.78 | ||||
| 16 | WP8066217 | Hinge, Top (Replaces: 238088) |
|
$ 7.39 | |||||
| 17 | W10854425 | Clip, Front Panel (Replaces: 3394083) |
|
Immediately | $ 14.71 | ||||
| 18 | 280043 | Panel, Rear (Replaces: 3396805) |
|
$ 322.53 | |||||
| 19 | W10400396 | Burner Assembly (60 Hz) (refer To Pages 8 & 9 For Further Burner Breakdown) |
|
- | |||||
| 20 | WP3402341 | Door, Rear (Replaces: 3402341) |
|
$ 187.84 | |||||
| 21 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 10.76 | ||||
| 22 | W11035878 | Seal & Bearing Assembly (Replaces: 3406129) |
|
Immediately | $ 83.41 | ||||
| 23 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 24 | W10248059 | Front Panel Assembly (Replaces: W10224855) |
|
$ 364.46 | |||||
| 25 | 49621 | Foot (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 26 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 7.30 | |||||
| 27 | 279923 | Valve, Gas (complete) (Replaces: W10304604) |
|
Immediately | $ 257.43 | ||||
| 28 | 8533643 | Cabinet (includes Illus. 10) (Replaces: 8530603) |
|
$ 377.30 | |||||
| 29 | WPW10362431 | Hinge & Pin Assembly (Replaces: W10362431) |
|
Immediately | $ 7.45 | ||||
| 30 | WPW10237959 | Switch, Door (Replaces: 3406109) |
|
Immediately | $ 56.37 | ||||
| 31 | W11429589 | Strike, Door (Replaces: 3403431) |
|
Immediately | $ 18.89 | ||||
| 32 | 279311 | Ignitor (Replaces: 686590) |
|
Immediately | $ 71.01 | ||||
| 33 | WP18776 | Lock, Front Top (Replaces: 690363) |
|
Immediately | $ 11.98 | ||||
| 34 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 21.20 | |||||
| 35 | WPW10366705 | Screw, Washer (Replaces: 3393909) |
|
$ 7.09 | |||||
| 36 | W10861521 | Seal, Door (Replaces: 3405246) |
|
Immediately | $ 61.07 | ||||
| 37 | WP3389441 | Catch, Door (Replaces: 3389441) |
|
Immediately | $ 6.56 | ||||
| 38 | 279827 | Motor Assembly 60 Hz. (Replaces: W10396032) |
|
Immediately | $ 195.48 | ||||
| 39 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 114.89 | ||||
| 40 | 341241 | Belt, Drive (Replaces: W10131364) |
|
Immediately | $ 16.34 | ||||
| 41 | 3400500 | Bolt, 5/16-18 X 3/4 |
|
Immediately | $ 12.64 | ||||
| 42 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 20.22 | ||||
| 43 | WPW10121316 | Clamp, Motor (Replaces: W10121316) |
|
Immediately | $ 24.26 | ||||
| 44 | WP8066184 | Pulley, 60 Hz. (Replaces: 8066184) |
|
Immediately | $ 45.92 | ||||
| NI | 49621 | Foot - Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 |
