SELECT A DIAGRAM

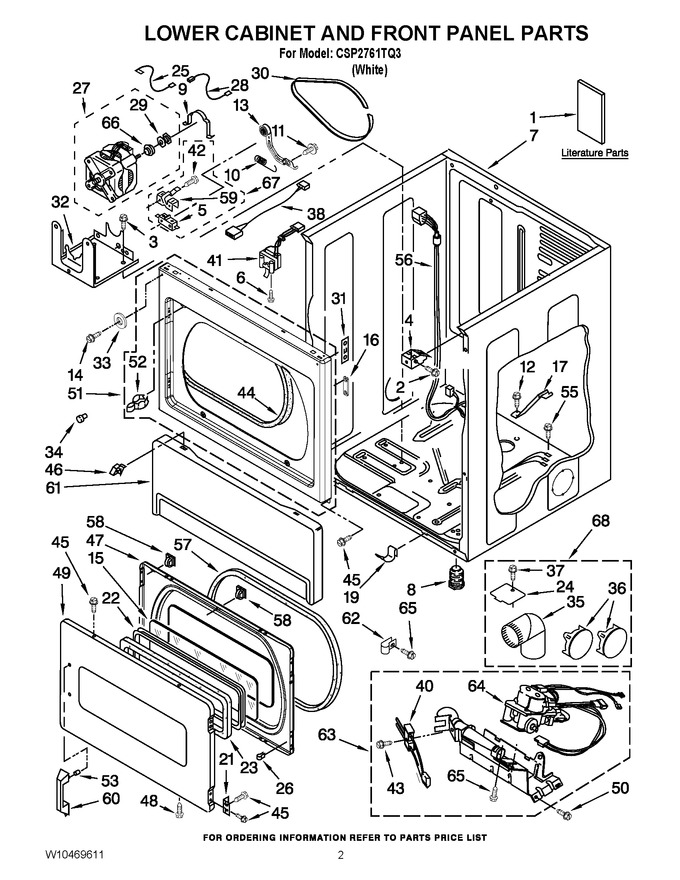

01 - Lower Cabinet And Front Panel Parts


02 - Control Panel And Separator Parts


03 - Upper Cabinet And Front Panel Parts


04 - Upper And Lower Bulkhead Parts


05 - Burner Assembly


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10184585		Installation Instructions		Appelez-nous	-
1	W10469611		Repair Parts List		Appelez-nous	-
1	8576825		Wiring Diagram		Appelez-nous	-
2	681615		Screw, 10-16 X 1   (Replaces: 3391915)				$ 14.57
3	WP681414		Screw, 10-16 X 1/2   (Replaces: 3390663)			Immediately	$ 8.47
4	3391846		Clip, Front Panel				$ 22.21
5	279782		Switch, Broken Belt   (Replaces: 3394881)			Immediately	$ 58.41
6	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 8.57
7	W11417441		Cabinet, Lower   (Replaces: 8310656)				$ 440.17
8	49621		Foot, Dryer Plastic   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
12	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
13	WPW10344193		Idler Assembly   (Replaces: W10344193)			Immediately	$ 87.96
14	WP3373329		Screw, 10-16 X 1/2   (Replaces: 3393258)				$ 8.52
15	3392918		Window		Appelez-nous	-
16	W10191265		Plug, Hinge Hole Screw				$ 46.49
17	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
19	WPW10291934		Clip   (Replaces: W10291934)				$ 8.14
21	WPW10279703		Hinge And Pin   (Replaces: W10279703)				$ 75.83
22	3392914		Frame, Window		Appelez-nous	-
23	3392915		Gasket, Window				$ 58.46
24	WPW10354249		Plate Cover (bottom Exhaust)   (Replaces: 3394331)				$ 9.41
25	3398948		Wire, Jumper				$ 64.66
26	3389249		Nut, ``u``		Appelez-nous	-
27	W10841144		Motor Assembly (60 Hz.)   (Replaces: 8538264)			Immediately	$ 284.07
28	W10167612		Wire, Jumper				$ 13.42
29	WP8066184		Pulley 60 Hz   (Replaces: 3394341)			Immediately	$ 51.02
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	WP3390902		Clip, Door Hinge   (Replaces: 3390902)				$ 11.67
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 140.27
33	W11089212		Washer   (Replaces: 3392186)				$ 11.06
34	693152		Bumper				$ 11.51
35	279731		4``-90° Elbow		Appelez-nous	-
36	W10470674		Plug-multivent   (Replaces: 697750)			Immediately	$ 85.28
37	WP488729		Screw   (Replaces: 488729)			Immediately	$ 8.28
38	8283298		Jumper, Door Switch				$ 87.92
40	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
41	WPW10237959		Door Switch Assembly   (Replaces: 3406109)			Immediately	$ 62.63
42	WP98129		Screw, 6-20 X 1 1/16   (Replaces: 98129)				$ 8.18
43	WPW10366705		Screw, 8-32 X 3/4   (Replaces: 3393909)				$ 7.88
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 8.11
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
47	W10244331		Door, Rear   (Replaces: W10323063)		Appelez-nous	-
48	WP694091		Screw, 8-18 X 3/8   (Replaces: 694091)				$ 7.55
49	W10322548		Door, Front		Appelez-nous	-
50	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
51	W10242810		Upper Front Panel   (Replaces: W10192882)				$ 386.67
52	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
53	W10850046		Fastener   (Replaces: 9742177)			Immediately	$ 7.55
55	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
56	8529990		Harness (lower)		Appelez-nous	-
57	WP3390735		Seal, Door   (Replaces: 3390735)				$ 137.13
58	279570		Catch, Door Assembly   (Replaces: 3392538)			Immediately	$ 8.89
59	WP8066120		Lever, Snap Switch   (Replaces: 8066120)			Immediately	$ 34.77
60	WPW10213202		Handle, Door   (Replaces: W10213202)			Immediately	$ 86.43
61	WP3406797		Panel, Toe (includes Illus. 34)   (Replaces: 697215)				$ 250.25
62	3387561		Clamp-pipe		Appelez-nous	-
63	W10466240		Burner Assembly 60 Hz. (refer To Pages 10 & 11 For Breakdown)		Appelez-nous	-
64	279923		Valve, Gas (complete) 60 Hz   (Replaces: W10304604)			Immediately	$ 286.03
65	WP693995		Screw, 8-18 X 3/8   (Replaces: 3387057)			Immediately	$ 7.55
66	WP3393657		Restrain, Belt   (Replaces: 3393657)			Immediately	$ 139.08
67	279782		Switch Assembly   (Replaces: 8066134)			Immediately	$ 58.41
NI	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 85.28
NI	3396122		Window Pack. Includes Illus. 15 & 23		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
