01 - Lower Cabinet And Front Panel Parts

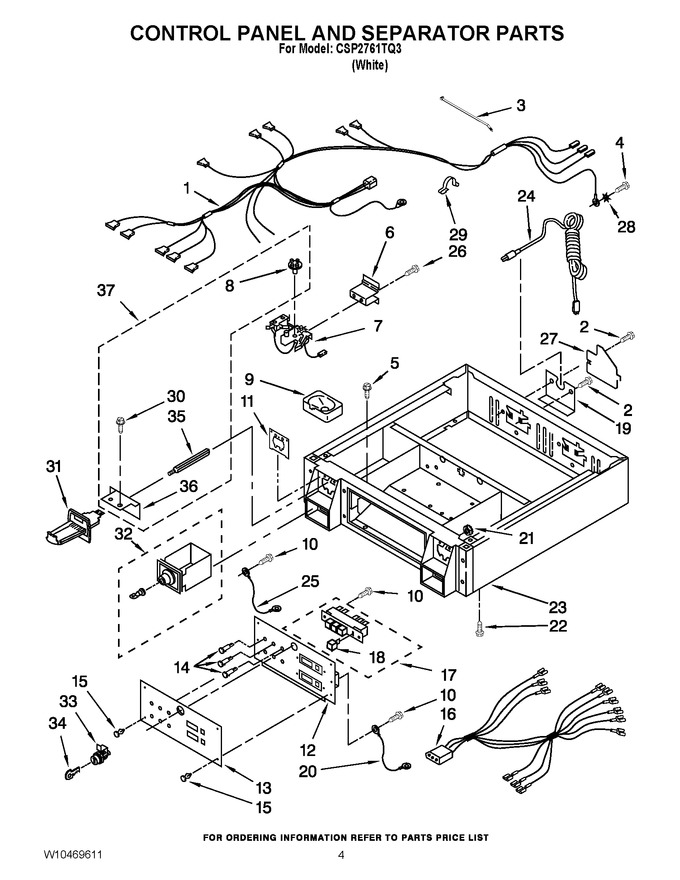

02 - Control Panel And Separator Parts


03 - Upper Cabinet And Front Panel Parts


04 - Upper And Lower Bulkhead Parts


05 - Burner Assembly


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8283295		Harness, Wire		Appelez-nous	-
2	W11676450		Screw, 10-24 X 3/8   (Replaces: 3400000)				$ 13.28
3	WPW10155270		Tie, Cable   (Replaces: 8529895)				$ 6.32
4	W10850756		Screw, 10-32 X 5/8   (Replaces: 697776)				$ 7.38
5	W11808444		Screw, 8-32 X 5/16   (Replaces: 98139)		Appelez-nous	-
6	3390115		Bracket, Timer		Appelez-nous	-
7	279737		Timer (includes 4-pin Cam)   (Replaces: 3389668)			Immediately	$ 344.67
8	WP3387974		Cam (3-pin (60 Min.))   (Replaces: 3387974)				$ 7.87
8	51-161-6		Cam (6-pin (30 Min.))   (Replaces: 343777)				$ 31.07
9	WP385421		Funnel, Coin   (Replaces: 385421)			Immediately	$ 70.12
10	WP489128		Screw, 8-32 X 3/8   (Replaces: 303921)				$ 10.26
11	279950		Plate, Chute Adapter (includes Illus. 9)   (Replaces: 3954761)			Immediately	$ 30.35
12	3979100		Panel, Control		Appelez-nous	-
13	8565384		Insert, Decorative		Appelez-nous	-
14	3979326		Lamp, Indicator (amber)		Appelez-nous	-
14	3979325		Lamp, Indicator (red)		Appelez-nous	-
14	3979327		Lamp, Indicator (blue)		Appelez-nous	-
15	354239		Rivet		Appelez-nous	-
16	8283296		Wire Jumper (light & Switch)		Appelez-nous	-
17	WPW10330137		Switch, Pushbutton   (Replaces: W10330137)			Immediately	$ 306.54
18	WPW10330137		Pushbutton   (Replaces: 8316433)			Immediately	$ 306.54
19	3390189		Strain Relief		Appelez-nous	-
20	3401699		Jumper Wire   (Replaces: 8539882)		Appelez-nous	-
21	WP3400029		Nut, 10-32   (Replaces: 3400029)			Immediately	$ 7.37
22	3400500		Bolt, 5-16 X 18			Immediately	$ 12.64
23	3978853		Collar		Appelez-nous	-
24	W11222083		Cord, Power   (Replaces: W10440461)				$ 113.96
25	3401699		Jumper Wire (ground)		Appelez-nous	-
26	WP3400094		Screw, 10-32 X 3/8   (Replaces: 3400094)				$ 8.33
27	W11539855		Cover, Terminal Block   (Replaces: 3396795)			Immediately	$ 566.78
28	3390443		Retainer, Terminal		Appelez-nous	-
29	WP98997		Clip, Harness   (Replaces: 98997)				$ 10.48
30	WP356418		Screw, 10-32 X 3/8   (Replaces: 96435)				$ 8.33
31	W11126319		Slide Mechanism (vertical 8-coin)   (Replaces: 8316520)			Immediately	$ 303.95
32	W11190039		Money Box W/lock (includes Key)   (Replaces: 8316525)			Immediately	$ 177.61
33	W11315637		Security Lock/key And Cam Assembly   (Replaces: 8316526)			Immediately	$ 68.71
34	N/P		Key (service Door) (when Ordering Specify Vendor And Key Number)		Appelez-nous	-
35	WP8576635		Bolt, Slide Mechanism   (Replaces: 8318517)			Immediately	$ 71.06
36	3390424		Slide Extension			Immediately	$ 64.49
37	3390615		Screw & Cam Bag Assembly		Appelez-nous	-
NI	8316265		(dollar Vend) Inserts (not Shown) (25¢)		Appelez-nous	-
NI	W11312584		(dollar Vend) Inserts (not Shown) (blank)   (Replaces: 8316264)				$ 29.67
