SELECT A DIAGRAM

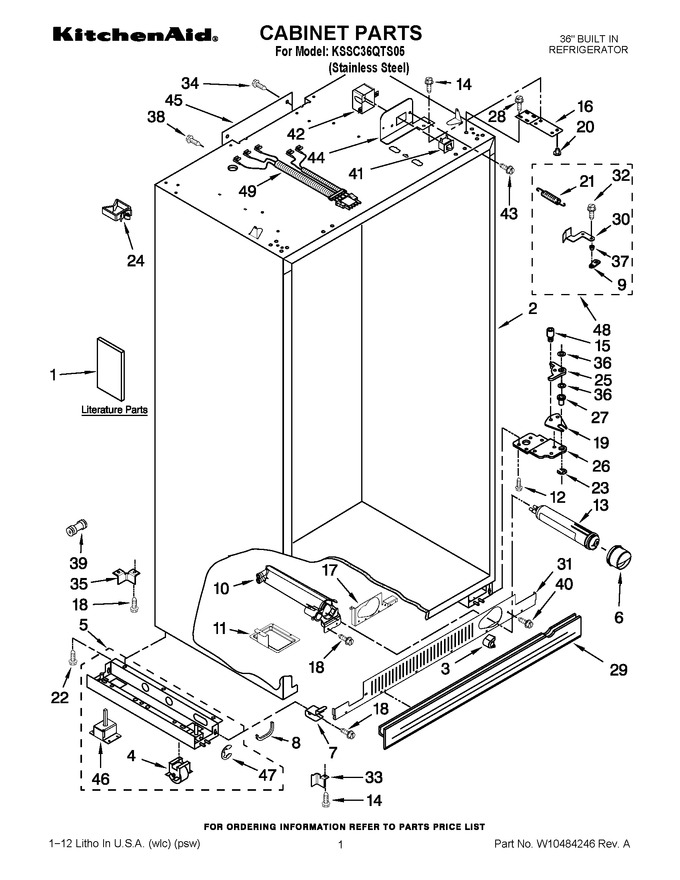

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10445950		Service & Wiring Sheet		Appelez-nous	-
1	W10303989		Use & Care Guide		Appelez-nous	-
1	W10205773		Energy Guide		Appelez-nous	-
1	W10379133		Installation Instructions		Appelez-nous	-
1	2306424		Icemaker And Ingredient Care Center Service Sheet		Appelez-nous	-
1	W10469184		Main Control Service Sheet		Appelez-nous	-
2	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	WP2260503B		Button, Filter   (Replaces: 2260503B)				$ 68.78
4	WPW10138054		Roller, Front & Rear   (Replaces: W10138054)				$ 40.81
5	W10860448		Support, Leveler Assembly (refrigerator Side)   (Replaces: W10138423)			Immediately	$ 344.70
5	W10860229		Support, Leveler Assembly (freezer Side)   (Replaces: W10279275)				$ 343.65
6	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260518B)			Immediately	$ 30.56
7	W10839844		Mounting Stud, Grille   (Replaces: 2307640)				$ 38.93
8	2307584		Grommet, Crossover Tube				$ 21.06
9	2005783		Cam, Door Closer				$ 26.20
10	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 243.77
11	2318189		Tray, Drip Filter				$ 133.86
12	3400525		Screw				$ 12.83
13	EDR3RXD1B		Filter, Water   (Replaces: 4396841)			Immediately	$ 49.99
14	WP489399		Screw   (Replaces: 489399)				$ 6.57
15	W11769878		Screw, Door Stop   (Replaces: 3400230)				$ 11.49
16	2257644		Hinge (top)				$ 160.18
17	W11755873		Bracket, Mtg (water Filter)   (Replaces: W10348782)				$ 72.30
18	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.54
19	WP2004994		Lock, Adjustable Bushing   (Replaces: 2004994)			Immediately	$ 7.55
20	2300082		Bushing				$ 13.44
21	W11805224		Spring, Door Closure   (Replaces: 2221242)		Appelez-nous	-
22	W11624204		Screw   (Replaces: 486194)				$ 13.25
23	WP489236		Retaining Ring, Adjustable Bushing   (Replaces: 2005008)			Immediately	$ 11.50
24	W10129069		Wire Clip		Appelez-nous	-
25	2006342		Gap, Cover Assembly (bottom)		Appelez-nous	-
26	W10527053		Hinge (bottom) (refrigerator Side)   (Replaces: 2006779)				$ 123.96
26	WP2006780		Hinge (bottom) (freezer Side)   (Replaces: 2006780)				$ 269.40
27	WP2302876		Bushing, Adjustable   (Replaces: 2302876)			Immediately	$ 81.65
28	W11721628		Screw 1/4-20 X 5/8   (Replaces: 8533913)			Immediately	$ 13.30
29	WP2209024B		Skirt-grille, Bottom (black)   (Replaces: 2209024B)				$ 152.88
30	W10847927		Extension Arm, Door Closer (rh)   (Replaces: 2266882)				$ 89.92
30	W11298172		Extension Arm, Door Closer (lh)   (Replaces: 2266881)			Immediately	$ 78.69
31	W11739149		Grille Bottom, Front (black)   (Replaces: 2325184B)			Immediately	$ 188.17
32	W11177574		Screw   (Replaces: W10004850)				$ 13.36
33	2006616		Bracket, Support Base (front) (lh)				$ 82.38
33	2006556		Bracket, Support Base (front) (rh)				$ 33.48
34	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
35	2006617		Bracket, Support Base (rear)		Appelez-nous	-
36	WP2006346		Washer   (Replaces: 2006346)			Immediately	$ 10.58
37	WP2316859		Bushing, Extension Arm   (Replaces: 2316859)			Immediately	$ 48.78
38	WP1163283		Screw   (Replaces: 1163283)				$ 6.80
39	WP2300868		Connector, Water Tube (1/4``)   (Replaces: W10271541)			Immediately	$ 33.29
40	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 9.63
41	W11384469		Switch, Rocker Arm (refrigerator Door Side)   (Replaces: 1118894)			Immediately	$ 35.18
41	W11457217		Switch, Rocker Arm (freezer Door Side)   (Replaces: 1115373)				$ 36.08
42	2215938		Cover, Switch				$ 85.30
43	WP965173		Screw   (Replaces: 487415)			Immediately	$ 10.68
44	2221096		Bracket, Switch (lh)				$ 88.07
44	W10741111		Bracket, Switch (rh)   (Replaces: 2221097)				$ 60.63
45	2215612		Cover, Rear		Appelez-nous	-
46	2005032		Leveler			Immediately	$ 180.06
47	2006841		Ring				$ 83.39
48	WP2307857		Cam Assembly   (Replaces: 2307857)			Immediately	$ 71.37
49	W10167456		Wire Assembly Rc/fc Light Switch		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
