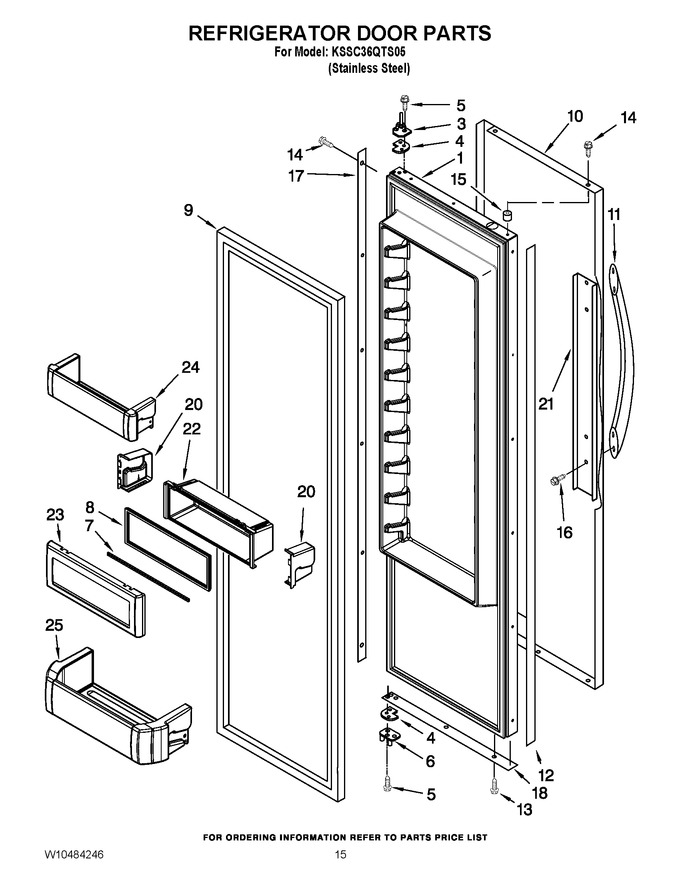

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10193489 | Refrigerator Door Panel (includes Item No.9) |
|
- | |||||
| 3 | W11724512 | Hinge Assembly, Top (Replaces: 2266854) |
|
$ 281.25 | |||||
| 4 | W11673500 | Spacer-door, Top & Bottom (Replaces: 2316804) |
|
Immediately | $ 117.33 | ||||
| 5 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 7.77 | ||||
| 6 | 2302878 | Hinge Assembly, Bottom |
|
Immediately | $ 81.91 | ||||
| 7 | 2222795 | Rail, Lid |
|
$ 75.70 | |||||
| 8 | WP2222981 | Gasket, Utility Bin (Replaces: 2222981) |
|
$ 192.96 | |||||
| 9 | WP2266901 | Door Gasket, Magnetic (Replaces: 2222810) |
|
$ 332.86 | |||||
| 10 | 2307752 | Skin, Door (stainless Steel) |
|
- | |||||
| 11 | WP2316868 | Handle, Door (stainless Steel) (Replaces: 2316868) |
|
Immediately | $ 253.29 | ||||
| 12 | 2309060 | Spacer, Door-skin (handle Side) (for Stainless Steel Model) |
|
- | |||||
| 13 | W10759522 | Screw (Replaces: 488568) |
|
$ 7.42 | |||||
| 14 | WP8281250 | Screw, 8-15 X .500 (stainless Steel) (Replaces: 8281250) |
|
$ 10.28 | |||||
| 15 | 2005433 | Spacer, Door-skin (top) |
|
$ 21.00 | |||||
| 16 | WP308544 | Screw, Handle (Replaces: 308544) |
|
Immediately | $ 7.47 | ||||
| 17 | W10142296 | Spacer, Door-skin Hinge Side) |
|
- | |||||
| 18 | WP2257333 | Spacer, Door-skin (bottom) (Replaces: 2004933) |
|
$ 126.83 | |||||
| 20 | WPW10323173 | End Cap (lh) (Replaces: W10323173) |
|
$ 7.74 | |||||
| 20 | WPW10323172 | End Cap (rh) (Replaces: W10323172) |
|
$ 7.74 | |||||
| 21 | W10127710 | Plate, Door-handle |
|
Immediately | $ 23.35 | ||||
| 22 | WPW10323035 | Bin, Utility Center (Replaces: W10323035) |
|
$ 76.44 | |||||
| 23 | WPW10131132 | Door, Utility Bin (Replaces: W10131132) |
|
$ 68.23 | |||||
| 24 | W10323598 | Bin, Door |
|
$ 94.31 | |||||
| 25 | W10323746 | Bin, Door |
|
$ 97.42 |
