01 - Cooktop Parts

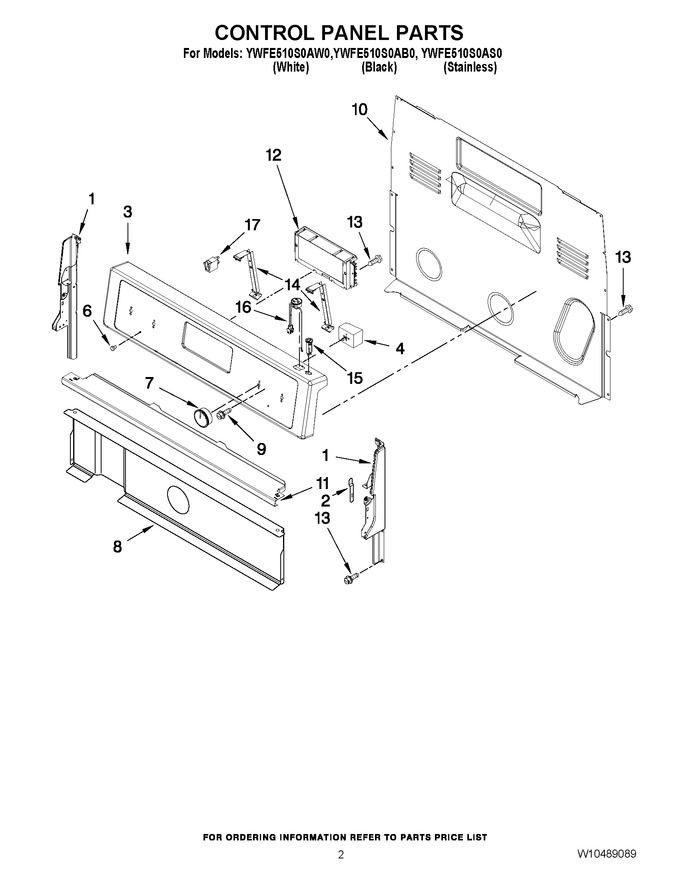

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white Lh) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 1 | W11219370 | Endcap (white Rh) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 1 | W11219664 | Endcap (black Lh) (Replaces: W10184437) |
|
Immediately | $ 138.45 | ||||
| 1 | W11219665 | Endcap (black Rh) (Replaces: W10184438) |
|
Immediately | $ 40.65 | ||||
| 2 | 3196200 | Clip, Spring |
|
$ 9.41 | |||||
| 3 | W10370111 | Panel, Backguard (white) |
|
$ 67.97 | |||||
| 3 | W11251229 | Panel, Backguard (stainless) (Replaces: W10339404) |
|
Immediately | $ 434.38 | ||||
| 3 | W10370103 | Panel, Backguard (black) |
|
$ 152.41 | |||||
| 4 | WPW10434452 | Switch, Infinite (left Front) (Replaces: W10434452) |
|
Immediately | $ 126.76 | ||||
| 4 | WP3149400 | Switch, Infinite (right Front) (Replaces: 3148954) |
|
Immediately | $ 81.46 | ||||
| 4 | 5500-287 | Switch, Infinite (left - Right Rear) (Replaces: 3148951) |
|
Immediately | $ 49.03 | ||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | WPW10490037 | Knob (white) (Replaces: W10490037) |
|
Immediately | $ 6.80 | ||||
| 7 | WPW10490038 | Knob (black) (Replaces: W10490038) |
|
$ 19.39 | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | W10525121 | Brkt-mntg,console (Replaces: W10182322) |
|
$ 88.97 | |||||
| 12 | WPW10734612 | Control, Range (lcc95) (black) (Replaces: W10348622) |
|
$ 527.07 | |||||
| 12 | WPW10734609 | Control, Range (lcc95) (stainless) (Replaces: W10424886) |
|
$ 505.17 | |||||
| 12 | WPW10734611 | Control, Range (lcc95) (white) (Replaces: W10348623) |
|
$ 513.68 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | W11230932 | Brkt-mntg, Eoc (Replaces: W10324410) |
|
Immediately | $ 76.33 | ||||
| 15 | WP9757601 | Breaker (white) (Replaces: 9757601) |
|
Immediately | $ 59.00 | ||||
| 15 | WP9757602 | Breaker (black) (Replaces: 9757602) |
|
Immediately | $ 54.82 | ||||
| 16 | W10861164 | Receptacle (black) (Replaces: W10203475) |
|
Immediately | $ 16.62 | ||||
| 16 | W10849725 | Receptacle (white) (Replaces: W10203476) |
|
Immediately | $ 100.00 | ||||
| 17 | WP8523265 | Light, Indicator (Replaces: 8523265) |
|
Immediately | $ 91.76 |
