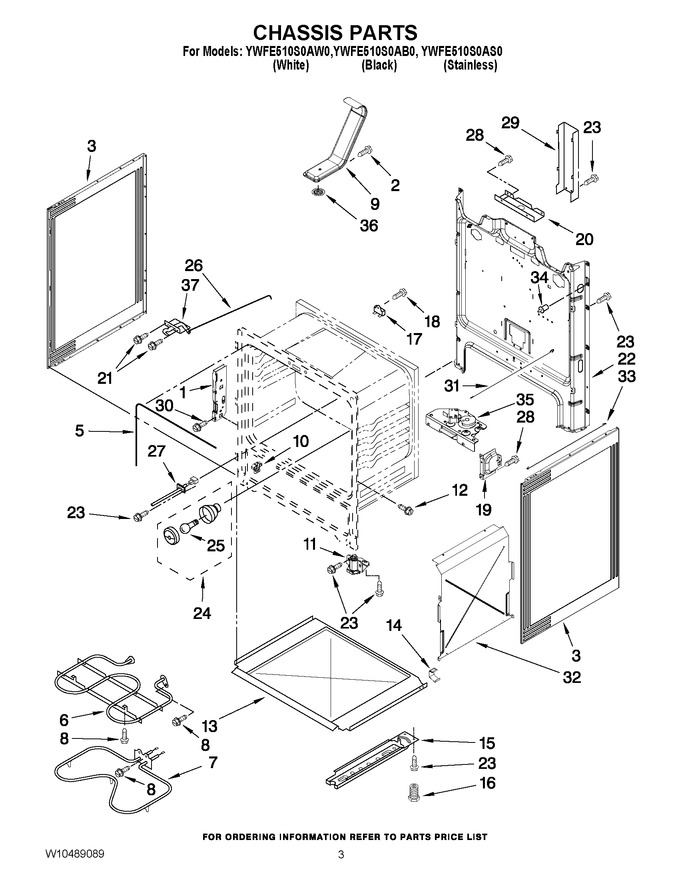

03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 8.39 | ||||
| 2 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.60 | |||||
| 3 | WPW10575396 | Panel, Side (white-textured) (Replaces: W10322769) |
|
$ 182.19 | |||||
| 3 | W11730303 | Panel, Side (black) (Replaces: W10322770) |
|
Immediately | $ 160.65 | ||||
| 5 | W11542153 | Seal, Oven Door (Replaces: 8522416) |
|
Immediately | $ 45.18 | ||||
| 6 | W10856603 | Element, Broil (Replaces: W10308476) |
|
Immediately | $ 172.30 | ||||
| 7 | WPW10308477 | Element, Bake (Replaces: W10308477) |
|
Immediately | $ 64.67 | ||||
| 8 | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 7.60 | ||||
| 9 | WPW10134285 | Flue (Replaces: W10134285) |
|
Immediately | $ 236.70 | ||||
| 10 | W10763667 | Glide, Drawer Frnt (Replaces: W10317898) |
|
Immediately | $ 96.91 | ||||
| 11 | WPW10341186 | Foot, Front (Replaces: W10341186) |
|
Immediately | $ 29.33 | ||||
| 12 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 7.47 | |||||
| 13 | WP8054068 | Tray, Insulation (Replaces: 8054068) |
|
$ 93.92 | |||||
| 14 | W10137382 | Clip, Panel |
|
Immediately | $ 43.58 | ||||
| 15 | W11818353 | Rail, Base (right Hand) (Replaces: W10390008) |
|
$ 56.39 | |||||
| 15 | W11818353 | Rail, Base (left Hand) (Replaces: W10390007) |
|
$ 56.39 | |||||
| 16 | WPW10058460 | Foot, Rear (Replaces: W10058460) |
|
Immediately | $ 7.42 | ||||
| 17 | WP3196548 | Thermal, Fuse (Replaces: 3196548) |
|
Immediately | $ 45.09 | ||||
| 18 | 3196172 | Screw |
|
Immediately | $ 12.12 | ||||
| 19 | W10404688 | Support, Oven (Replaces: W10355173) |
|
$ 15.92 | |||||
| 20 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 21 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 22 | W10289149 | Back, Main |
|
$ 72.39 | |||||
| 23 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 24 | W11594027 | Light Socket Assy (Replaces: 3196701) |
|
Immediately | $ 78.31 | ||||
| 25 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 26 | W10078380 | Rod, Latch |
|
$ 85.42 | |||||
| 27 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 96.15 | ||||
| 28 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 29 | WPW10326122 | Cover, Terminal Box (Replaces: W10326122) |
|
$ 125.64 | |||||
| 30 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 31 | 9757239 | Rod - Door Switch, Rear Mount |
|
$ 86.73 | |||||
| 32 | W10450380 | Retainer, Side (Replaces: 9758238) |
|
- | |||||
| 33 | W10727426 | Rod, Insl Retainer (Replaces: W10196451) |
|
Immediately | $ 76.59 | ||||
| 34 | WP9757262 | Switch, Door (Replaces: 9757262) |
|
Immediately | $ 146.71 | ||||
| 35 | WPW10107840 | Latch, Motor (Replaces: W10107840) |
|
Immediately | $ 116.15 | ||||
| 36 | 9761301 | Screen - Catalyst |
|
$ 133.11 | |||||
| 37 | WP9761013 | Latch, Door (Replaces: 9761013) |
|
$ 230.72 | |||||
| NI | W11684918 | Insulation, Flue (Replaces: W10333344) |
|
Immediately | $ 31.93 | ||||
| NI | W11311894 | Insulation, Back (Replaces: 8272612) |
|
$ 103.60 | |||||
| NI | WPW10208653 | Insulation, Wrap (Replaces: W10208653) |
|
Immediately | $ 52.37 | ||||
| NI | W11226497 | Cord, Power (Replaces: W10244925) |
|
Immediately | $ 99.50 |
