View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts

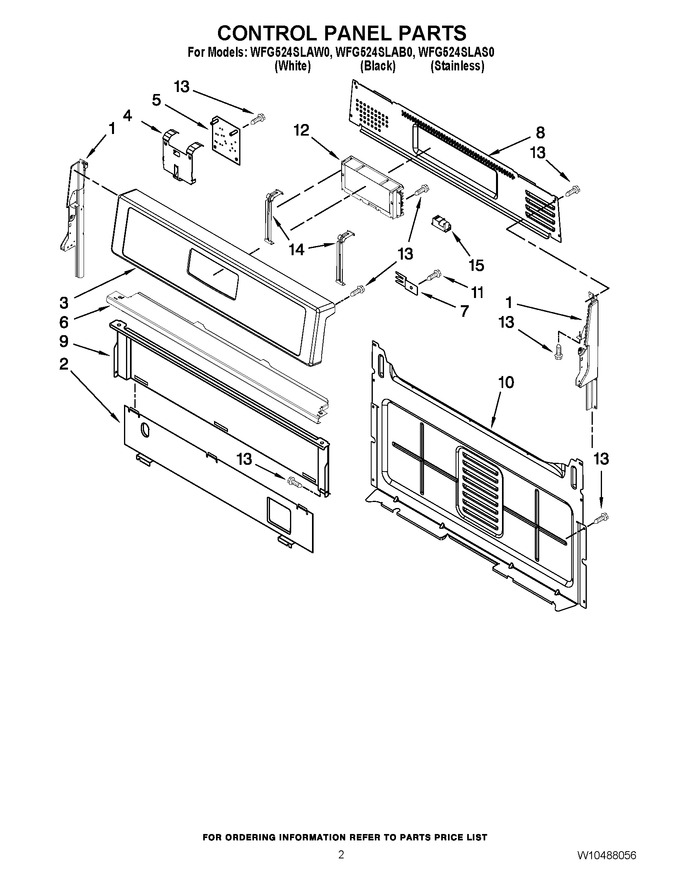

02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer & Broiler Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (left Hand White) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 1 | W11219665 | Endcap, Right Hand (black) (Replaces: W10184438) |
|
Immediately | $ 40.65 | ||||
| 1 | W11219370 | Endcap (right Hand White) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 1 | W11219664 | Endcap, Left Hand (black) (Replaces: W10184437) |
|
Immediately | $ 138.45 | ||||
| 2 | 8053505 | Shield, Lower Heat |
|
$ 149.30 | |||||
| 3 | W10339408 | Panel, Control (stainless) |
|
$ 122.16 | |||||
| 3 | W11234434 | Panel, Control (black) (Replaces: W10370100) |
|
$ 310.78 | |||||
| 3 | W11234436 | Panel, Control (white) (Replaces: W10370102) |
|
$ 310.78 | |||||
| 4 | W10333917 | Bracket, Mounting (dsi) |
|
- | |||||
| 5 | WPW10331686 | Module, Spark (Replaces: W10331686) |
|
Immediately | $ 363.24 | ||||
| 6 | W10211996 | Brkt-mntg, Console |
|
- | |||||
| 7 | 8523412 | Bracket, Support |
|
$ 151.11 | |||||
| 8 | W10198745 | Cover, Upper |
|
$ 116.01 | |||||
| 9 | W10192841 | Shield, Heat |
|
$ 96.02 | |||||
| 10 | W10184251 | Cover, Lower |
|
- | |||||
| 11 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 12 | WPW10424890 | Control, Lcc190 (stainless) (Replaces: W10424890) |
|
$ 403.70 | |||||
| 12 | WPW10348710 | Control, Lcc190 (white) (Replaces: W10348657) |
|
$ 259.70 | |||||
| 12 | WPW10348656 | Control, Lcc190 (black) (Replaces: W10348656) |
|
$ 409.31 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | W11230932 | Bracket, Mounting (lcc) (Replaces: W10324410) |
|
Immediately | $ 76.33 | ||||
| 15 | 8522425 | Module, Spark |
|
$ 122.75 |
