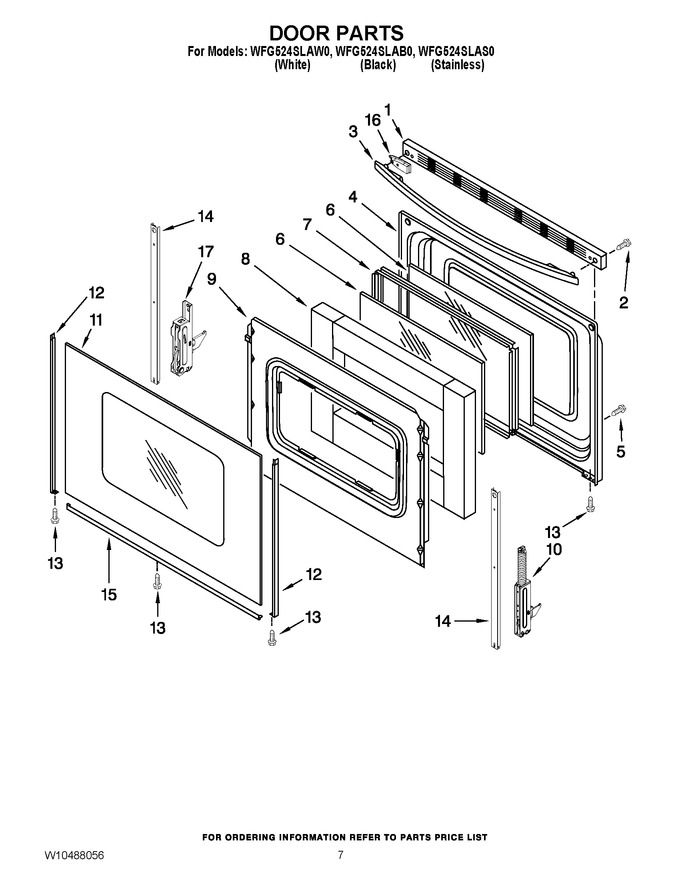

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10310922 | Trim, Top (black) (Replaces: W10310922) |
|
Immediately | $ 157.83 | ||||
| 1 | W10817433 | Trim, Top (white) (Replaces: W10310920) |
|
Immediately | $ 162.27 | ||||
| 2 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 7.42 | ||||
| 3 | WPW10618239 | Handle, Door (stainless) (Replaces: W10254687) |
|
Immediately | $ 171.80 | ||||
| 3 | W10300490 | Handle, Door (black) |
|
Immediately | $ 174.67 | ||||
| 3 | W10300489 | Handle, Door (white) |
|
Immediately | $ 220.39 | ||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 335.60 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
$ 208.85 | |||||
| 7 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 81.08 | ||||
| 8 | WPW10278991 | Insulation, Door (Replaces: W10278991) |
|
Immediately | $ 91.23 | ||||
| 9 | W11539580 | Retainer, Insul. (Replaces: 9761357) |
|
$ 209.98 | |||||
| 10 | WPW10299224 | Hinge, Active (Replaces: W10299224) |
|
Immediately | $ 66.14 | ||||
| 11 | WPW10409946 | Glass, Outer Door (black) (Replaces: W10409946) |
|
$ 287.33 | |||||
| 11 | WPW10409945 | Glass, Outer Door (white) (Replaces: W10409945) |
|
Immediately | $ 245.12 | ||||
| 12 | W10761018 | Trim, Door Side Left Hand (black) (Replaces: 8523171) |
|
Immediately | $ 49.32 | ||||
| 12 | WP8523166 | Trim, Door Side Right Hand (white) (Replaces: 8523166) |
|
Immediately | $ 75.81 | ||||
| 12 | W10761014 | Trim, Door Side Right Hand (black) (Replaces: 8523165) |
|
Immediately | $ 65.66 | ||||
| 12 | WP8523172 | Trim, Door Side Left Hand (white) (Replaces: 8523172) |
|
Immediately | $ 62.94 | ||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 14 | W11502236 | Strap, Door (Replaces: W10113759) |
|
Immediately | $ 24.91 | ||||
| 15 | W11594186 | Trim, Bottom (white) (Replaces: 8523175) |
|
Immediately | $ 55.23 | ||||
| 15 | WP8523177 | Trim, Bottom (black) (Replaces: 8523177) |
|
$ 149.27 | |||||
| 16 | WPW10410341 | Standoff, Handle (stainless Model) (Replaces: W10410341) |
|
$ 72.68 | |||||
| 17 | WPW10299227 | Hinge (passive) (Replaces: W10299227) |
|
Immediately | $ 63.67 |
