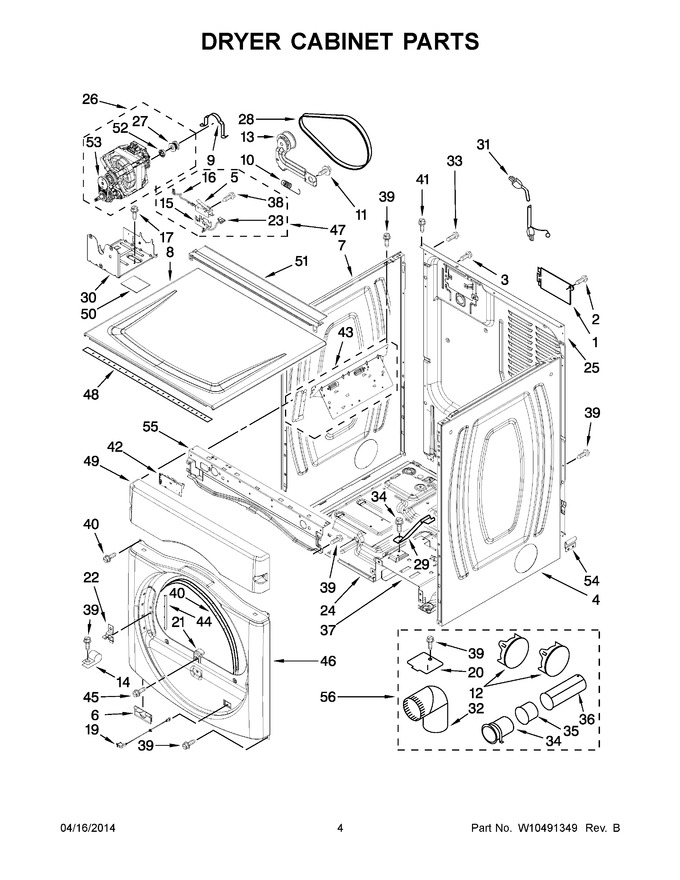

03 - Dryer Cabinet Parts


04 - Bulkhead And Blower Parts


05 - Dryer Door Parts


06 - Washer Door Parts


07 - Washer Cabinet Parts


08 - Dispenser Parts


09 - Tub And Basket Parts


10 - W10400668 Burner Assembly Parts


11 - Pump And Motor Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10819767		Cover, Terminal Block   (Replaces: 8317340)		Appelez-nous	-
2	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 7.43
3	W10850756		Screw   (Replaces: 8533974)				$ 7.38
4	W10542714		Panel, Side (r.h.) (white)   (Replaces: 8565048)				$ 315.52
5	WP8564010		Assembly, Switch And Actuator   (Replaces: 8564010)				$ 93.70
6	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 19.95
7	W10542714		Panel, Side (l.h.) (white)   (Replaces: 8565054)				$ 315.52
8	WPW10336080		Top (white)   (Replaces: 8563730)				$ 298.79
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.40
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 23.22
11	WP3389420		Screw   (Replaces: 3389420)				$ 7.76
12	W10470674		Plug, Multivent (white)   (Replaces: 697750)			Immediately	$ 76.75
13	WPW10344192		Assembly, Idler   (Replaces: W10344192)			Immediately	$ 85.11
14	3978776		Bracket, Gas Pipe		Appelez-nous	-
15	8564011		Bracket, Switch				$ 17.17
16	W10167613		Wire, Belt Switch		Appelez-nous	-
17	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.62
19	W10128087		Assembly, Door Switch				$ 85.98
20	WPW10354249		Plate, Cover   (Replaces: 8066115)				$ 8.47
21	8580015		Ramp, Door				$ 79.42
22	WP8565122		Strike, Door   (Replaces: 8565122)			Immediately	$ 7.79
23	8539892		Wire, Motor To Belt Switch		Appelez-nous	-
24	W11116960		Assembly, Vault Base & Bracket   (Replaces: W10198309)		Appelez-nous	-
25	8565059		Panel, Rear				$ 244.90
26	W11234001		Assembly, Motor 60 Hz.   (Replaces: W10396034)			Immediately	$ 390.48
27	WP8066184		Pulley, Motor   (Replaces: 3394341)			Immediately	$ 45.92
28	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 40.19
29	W10198376		Bracket, Burner		Appelez-nous	-
30	W11676491		Bracket, Motor   (Replaces: W10135695)				$ 121.16
31	W11222083		Cord, Power   (Replaces: W10440461)				$ 113.96
32	WPW10416072		Elbow   (Replaces: 49026)				$ 25.34
33	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
34	WP8563747		Pipe, Exhaust (medium)   (Replaces: 8563747)				$ 86.36
35	WPW10331278		Pipe, Exhaust (short)   (Replaces: 8563750)				$ 74.61
36	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 83.92
37	W10133261		Vault Switch, Bracket		Appelez-nous	-
38	777849		Screw   (Replaces: W10002600)				$ 6.62
39	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.45
40	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 28.28
41	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.08
42	WPW10376685		Control Board   (Replaces: W10376685)				$ 461.55
43	WP8563727		Bracket, Control   (Replaces: 8563727)				$ 161.72
44	8565043		Plug, Front Panel				$ 87.56
45	WP308685		Screw   (Replaces: 3357011)			Immediately	$ 7.08
46	WPW10117421		Front Panel (includes Illus. 44) (white)   (Replaces: W10117421)				$ 267.51
47	W11247665		Switch, Assembly   (Replaces: W10155571)				$ 24.95
48	WP8318396A		Seal, Foam   (Replaces: 8318396)				$ 35.74
49	W11674367		Enclosure, Ccu Assembly   (Replaces: W10198363)				$ 183.46
50	W11113654		Motor, Sound Pad   (Replaces: W10212660)				$ 20.96
51	W10198224		Bracket, Water Channel		Appelez-nous	-
52	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 125.17
53	WP3405160		Belt, Drive (blower Wheel)   (Replaces: 3405160)			Immediately	$ 33.29
54	W10198461		Bracket, Stack		Appelez-nous	-
55	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 170.79
56	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 76.75
