SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel Parts


03 - Dryer Cabinet Parts


04 - Bulkhead And Blower Parts


05 - Dryer Door Parts


06 - Washer Door Parts


07 - Washer Cabinet Parts

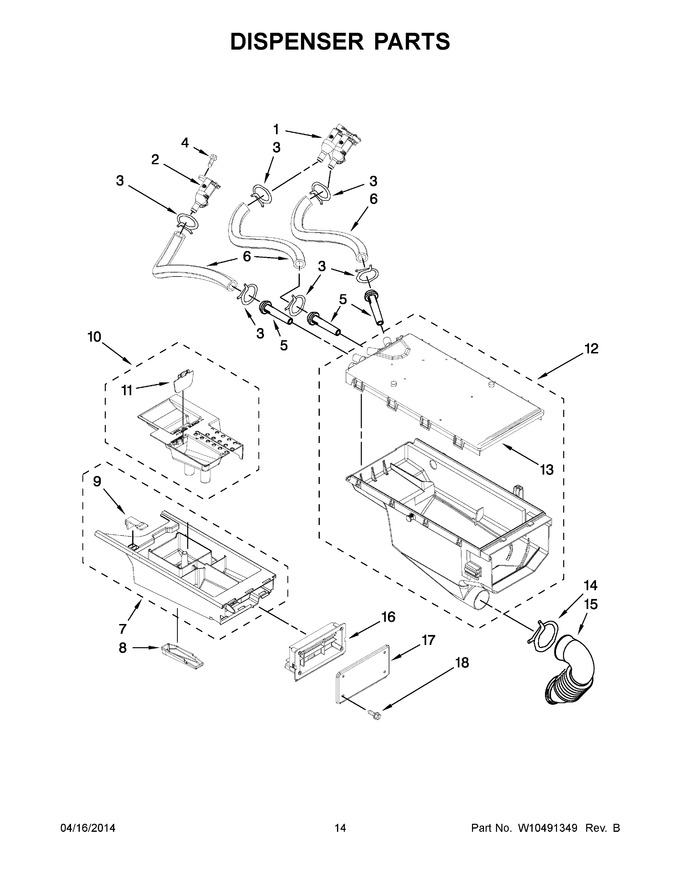

08 - Dispenser Parts


09 - Tub And Basket Parts


10 - W10400668 Burner Assembly Parts


11 - Pump And Motor Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10212596		Valve, Water Inlet (double)   (Replaces: W10212596)			Immediately	$ 83.66
2	WPW10212598		Valve, Water Inlet (single)   (Replaces: W10212598)			Immediately	$ 65.86
3	WP596669		Clamp, Hose   (Replaces: 370450)			Immediately	$ 7.94
4	WPW10137456		Screw   (Replaces: W10137456)				$ 7.75
5	WP8183181		Nozzle, Inlet   (Replaces: 8183181)				$ 85.34
6	W10803052		Hose, Valve To Dispenser   (Replaces: W10212611)				$ 12.96
7	W10395619		Drawer, Detergent   (Replaces: W10376660)			Immediately	$ 96.71
8	WP8540399		Cover, Detergent Drawer   (Replaces: 8540399)				$ 70.73
9	WPW10198458		Tab, Drawer Release   (Replaces: W10198458)				$ 6.99
10	W10433390		Siphon, Bleach/softener   (Replaces: W10407371)			Immediately	$ 75.10
11	WPW10298953		Door, Living Hinge   (Replaces: W10298953)				$ 6.08
12	W10364594		Dispenser, Outer Housing   (Replaces: W10212603)				$ 284.75
13	WPW10212604		Plate, Distribution   (Replaces: W10212604)			Immediately	$ 90.20
14	W11622908		Clamp, Hose   (Replaces: 8281276)				$ 21.00
15	W11366227		Hose, Dispenser To Tub   (Replaces: 8540063)			Immediately	$ 21.88
16	WPW10405607		Handle, Drawer   (Replaces: W10405607)				$ 89.52
17	W10198368		Cover, Handle		Appelez-nous	-
18	WPW10137456		Screw   (Replaces: W10137456)				$ 7.75

    View Diagram in Separate Window       Print Part List
