SELECT A DIAGRAM
01 - Cabinet Parts
02 - Liner Parts
03 - Refrigerator Door Parts

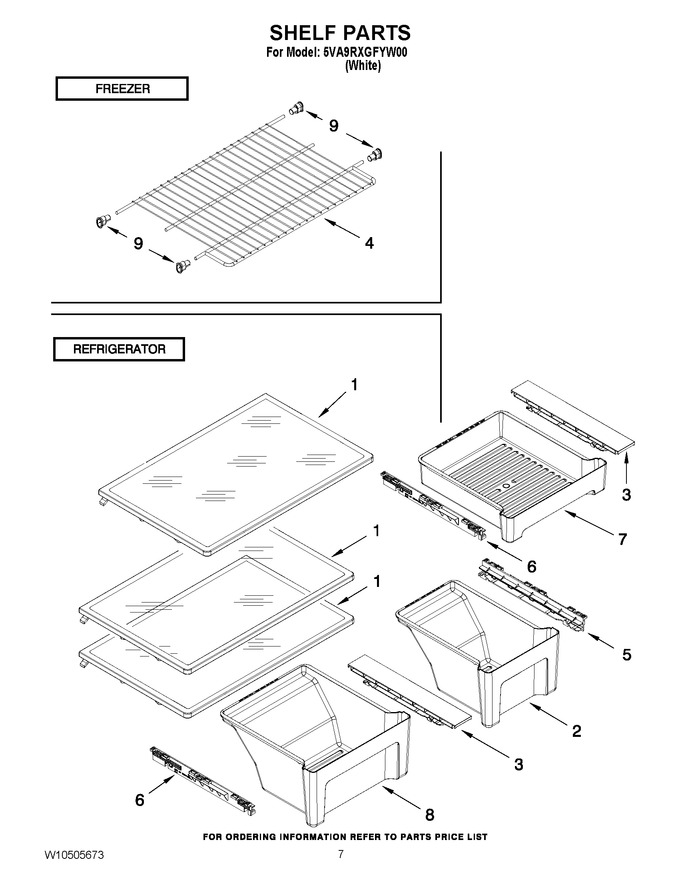

04 - Shelf Parts
05 - Freezer Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10486290 | Shelf Assy 30`` (Replaces: W10486290) |
|
$ 236.95 | |||||
| 2 | W10373946 | Crisper Pan 8`` |
|
- | |||||
| 3 | WPW10468557 | Track Rail Center (Replaces: W10404446) |
|
Immediately | $ 27.68 | ||||
| 4 | W10477088 | Wire Shelf, Fc (Replaces: W10384383) |
|
$ 162.26 | |||||
| 5 | WPW10468556 | Track Rail, Right (Replaces: W10404450) |
|
Immediately | $ 6.80 | ||||
| 6 | WPW10468555 | Track Rail, Left (Replaces: W10404449) |
|
Immediately | $ 22.59 | ||||
| 7 | WPW10310944 | Meat Pan 16`` (Replaces: W10310944) |
|
$ 133.92 | |||||
| 8 | W10373945 | Crisper Pan 16`` |
|
- | |||||
| 9 | WPW10130299 | Cup, Shelf (Replaces: W10130299) |
|
Immediately | $ 13.23 |
