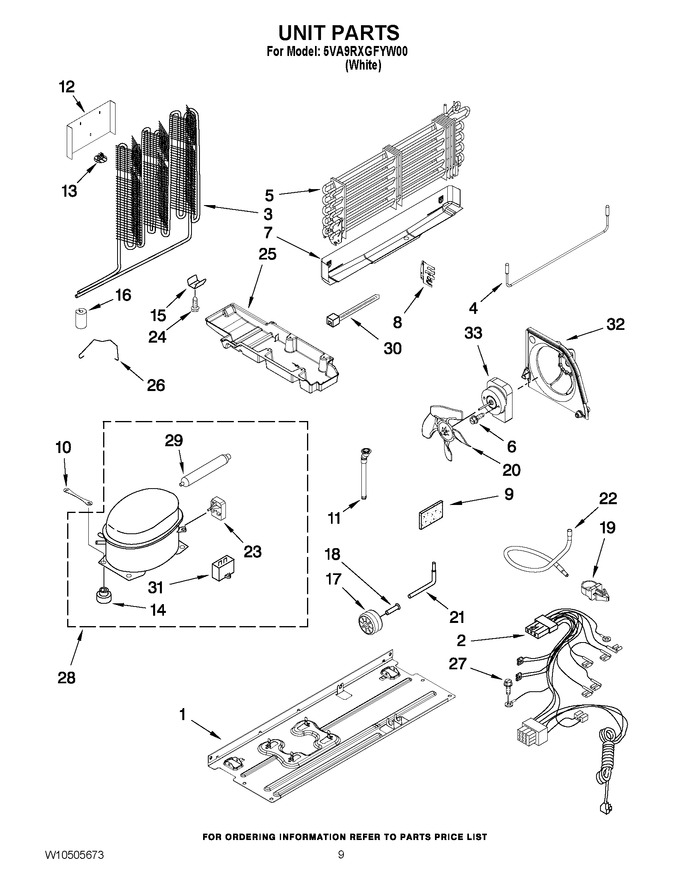

01 - Cabinet Parts
02 - Liner Parts
03 - Refrigerator Door Parts
04 - Shelf Parts
05 - Freezer Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10300116 | Plate, Unit Mounting |
|
$ 147.87 | |||||
| 2 | W10402413 | Wire Assy, Unit |
|
- | |||||
| 3 | WPW10342567 | Condenser (Replaces: W10342567) |
|
$ 250.38 | |||||
| 4 | W10405108 | Heater, Defrost |
|
- | |||||
| 5 | WPW10314205 | Evaporator Assy. (Replaces: W10314205) |
|
$ 325.25 | |||||
| 6 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 7 | WPW10314195 | Heat Shield (Replaces: W10314195) |
|
$ 91.21 | |||||
| 8 | W10314197 | Bracket, Evap |
|
$ 21.10 | |||||
| 9 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 13.29 | ||||
| 10 | W10236396 | Strap, Compressor |
|
Immediately | $ 18.73 | ||||
| 11 | W11190084 | Drain Valve (Replaces: W10316650) |
|
Immediately | $ 59.00 | ||||
| 12 | W10349514 | Cover, Condenser Bottom |
|
$ 74.16 | |||||
| 13 | W10296661 | Clip, Bottom Cover |
|
$ 16.00 | |||||
| 14 | WPW10169124 | Grommet (Replaces: 10835903) |
|
$ 6.80 | |||||
| 15 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 17.44 | |||||
| 16 | W10852725 | Condenser, Grommet (Replaces: 2319835) |
|
$ 7.28 | |||||
| 17 | WPW10475495 | Roller, Rear (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 18 | W11594405 | Rivet, Axle (Replaces: 2179826) |
|
Immediately | $ 17.21 | ||||
| 19 | 2219077 | Clip, Harness |
|
$ 57.82 | |||||
| 20 | WPW10139483 | Fan Blade (Replaces: W10139483) |
|
$ 89.84 | |||||
| 21 | 2154109 | Tube, Process |
|
$ 68.63 | |||||
| 22 | W10466682 | Tube, Suction |
|
$ 39.90 | |||||
| 23 | WP2312007 | Start Device Combination Relay & Overload (Replaces: 2312007) |
|
$ 170.72 | |||||
| 24 | W11544659 | Screw (Replaces: 8281232) |
|
$ 12.92 | |||||
| 25 | W10890667 | Evaporator Tray (Replaces: W10466213) |
|
$ 136.76 | |||||
| 26 | 2302129 | Bale Strap |
|
- | |||||
| 27 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.26 | |||||
| 28 | W10183407 | Compressor (includes Items 14, 23, 29 & 31) (also Order 876765 Tube Kit) (Replaces: W10120455) |
|
$ 392.05 | |||||
| 29 | WPW10143759 | Drier (Replaces: W10177049) |
|
Immediately | $ 27.70 | ||||
| 30 | WPW10339879 | Strap (Replaces: 2263990) |
|
$ 7.47 | |||||
| 31 | 2321245 | Capacitor |
|
- | |||||
| 32 | WP2315541 | Air Baffle (Replaces: 2315541) |
|
Immediately | $ 79.19 | ||||
| 33 | WP2321271 | Motor, Condenser (Replaces: 2321271) |
|
$ 292.92 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 123.53 | |||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 86.33 | ||||
| NI | N/P | Refrigerant Charge (4.00 Ozs. (r134a) |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 16.79 |
