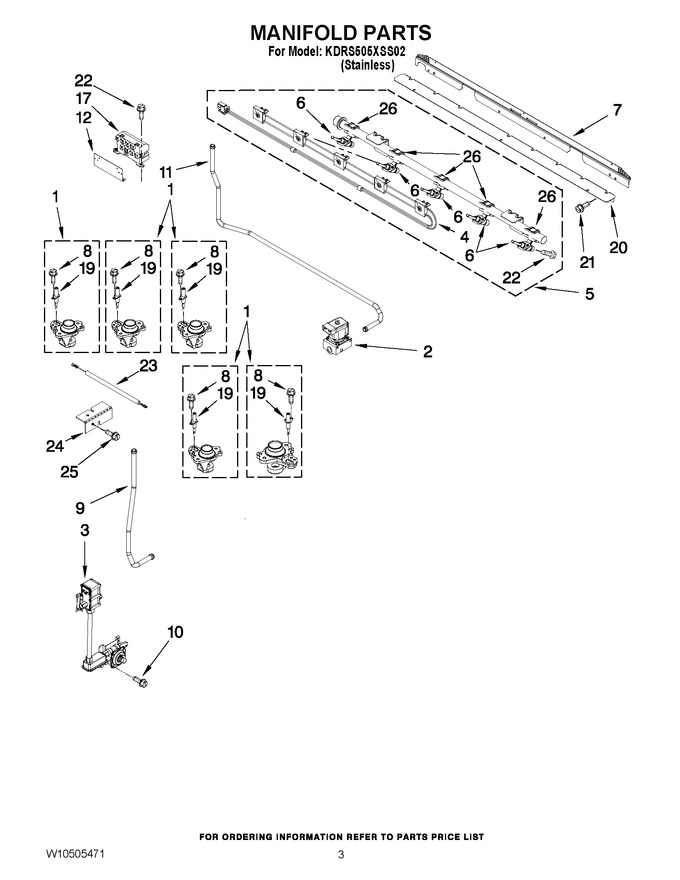

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10273135 | Holder, Orifice (lr, 5k) (Replaces: W10273135) |
|
$ 108.19 | |||||
| 1 | WPW10273133 | Holder, Orifice (lf 16k) (Replaces: W10273133) |
|
$ 110.61 | |||||
| 1 | WPW10319347 | Holder, Orifice (ctr 7k) (Replaces: W10273137) |
|
$ 103.27 | |||||
| 1 | WPW10273139 | Holder, Orifice (rr, 5k) (Replaces: W10273139) |
|
$ 106.88 | |||||
| 1 | W10273141 | Holder, Orifice (rf 10k) |
|
$ 48.23 | |||||
| 2 | 9758382 | Valve, Shut Off |
|
$ 76.60 | |||||
| 3 | 7510P101-60 | Valve, Regulator |
|
$ 151.00 | |||||
| 4 | WPW10204718 | Harness, Switch (Replaces: W10204718) |
|
$ 198.87 | |||||
| 5 | WPW10204705 | Assembly, Pipe Manifold (Replaces: W10204705) |
|
Immediately | $ 306.07 | ||||
| 6 | WPW10206288 | Valves (lf/rf, 16k) (Replaces: W10206288) |
|
Immediately | $ 118.04 | ||||
| 6 | WPW10298678 | Valves (fish Burner) (Replaces: W10298678) |
|
Immediately | $ 202.11 | ||||
| 6 | WPW10206287 | Valves (lr/rr, 5k) (Replaces: W10206287) |
|
Immediately | $ 198.53 | ||||
| 7 | WPW10276470 | Bracket, Manifold Rr Cover (Replaces: W10343062) |
|
$ 80.40 | |||||
| 8 | WP8273062 | Screw, Igniter (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| 9 | W10295050 | Tubing (supply Regulator To Shutoff) |
|
$ 192.26 | |||||
| 10 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 11 | W10295055 | Tubing (supply Shutoff To Manifold) |
|
$ 186.48 | |||||
| 12 | W10319059 | Bracket, Support (for Spark Module) |
|
- | |||||
| 17 | 74009098 | Module, Spark (Replaces: 7431P053-60) |
|
$ 320.36 | |||||
| 19 | W10407677 | Ignitor (fish Electrode) |
|
$ 22.05 | |||||
| 19 | WPW10407676 | Ignitor (all (except Fish)) (Replaces: W10407676) |
|
$ 49.29 | |||||
| 20 | WPW10276466 | Bracket, Manifold (bottom) (Replaces: W10276466) |
|
$ 97.37 | |||||
| 21 | WPY706189 | Screw (Replaces: 7101P653-60) |
|
Immediately | $ 6.80 | ||||
| 22 | W11233072 | Screw (Replaces: 7101P388-60) |
|
Immediately | $ 13.25 | ||||
| 23 | W10636384 | Ext., Electrode (Replaces: W10322044) |
|
$ 126.05 | |||||
| 24 | W10324366 | Holder, Electrode Ext. |
|
- | |||||
| 25 | W10217535 | Screw (extension Holder) |
|
$ 19.73 | |||||
| 26 | 98017516 | Connection, Saddle |
|
$ 84.18 | |||||
| NI | WPW10311058 | Lp Kit (Replaces: W10311058) |
|
$ 148.68 |
