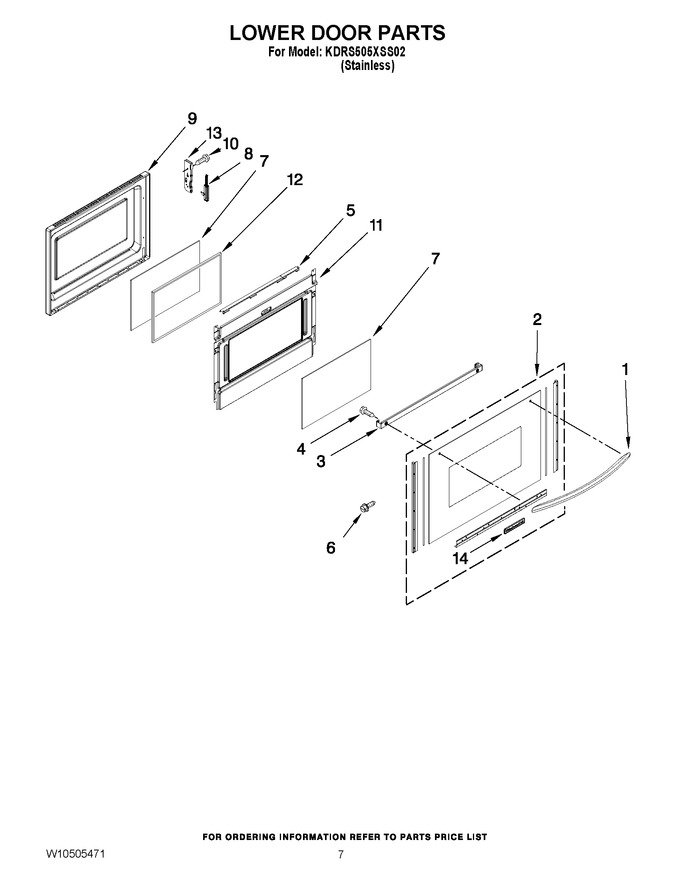

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10289076 | Handle, Door (Replaces: W10289076) |
|
$ 301.15 | |||||
| 2 | W10326134 | Assembly, Glass Door (includes Door Pnl & Badge) |
|
- | |||||
| 3 | W10645182 | Bracket, Handle (Replaces: W10296658) |
|
$ 37.56 | |||||
| 4 | WPW10132940 | Screw, Handle (Replaces: 3196184) |
|
$ 9.11 | |||||
| 5 | WPW10272594 | Frame, Glass (2) (Replaces: W10272594) |
|
Immediately | $ 177.65 | ||||
| 6 | WPW10292297 | Screw W/washer (Replaces: W10292297) |
|
Immediately | $ 6.80 | ||||
| 7 | WP9757706 | Glass, Inner (2) (Replaces: 9757706) |
|
Immediately | $ 158.18 | ||||
| 8 | WPW10335433 | Hinge, Door (right) (Replaces: W10335433) |
|
$ 94.49 | |||||
| 8 | WPW10335434 | Hinge, Door (left) (Replaces: W10335434) |
|
Immediately | $ 92.61 | ||||
| 9 | WPW10292008 | Lining, Door (Replaces: W10292008) |
|
$ 311.72 | |||||
| 10 | WP4449743 | Screw (receiver) (Replaces: 4449743) |
|
$ 6.80 | |||||
| 11 | W10340464 | Retainer, Insul. |
|
$ 260.82 | |||||
| 12 | WPW10321285 | Insulation, Door (Replaces: W10321285) |
|
$ 95.79 | |||||
| 13 | WPW10272329 | Receiver (left) (Replaces: W10272329) |
|
$ 73.00 | |||||
| 13 | WPW10272328 | Receiver (right) (Replaces: W10272328) |
|
$ 81.04 | |||||
| 14 | WPW10243391 | Badge (Replaces: W10243391) |
|
$ 52.48 |
