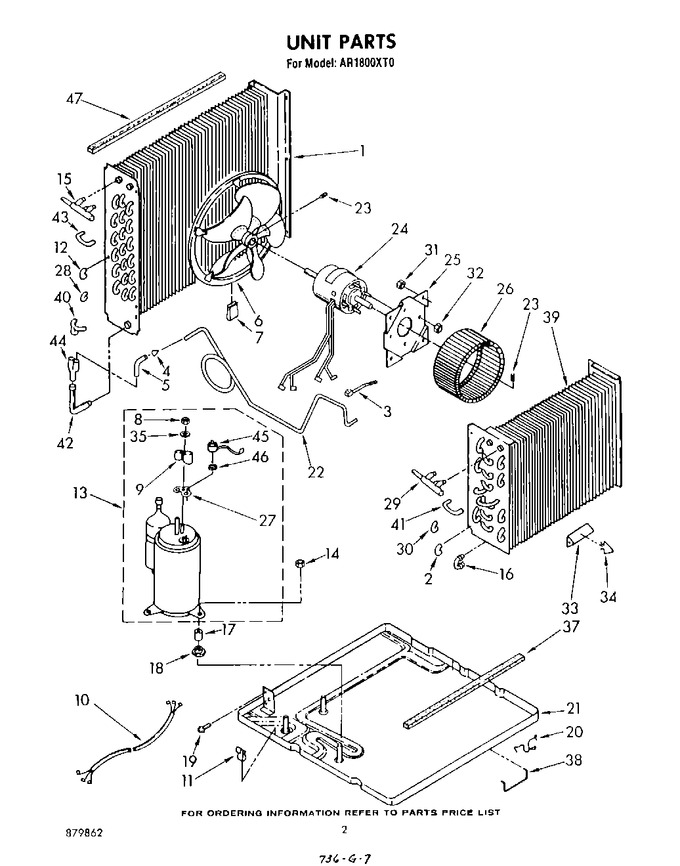

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1156327		Condenser		Appelez-nous	-
2	855199		Bend, Return (4)		Appelez-nous	-
3	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 7.47
4	49599		Strainer, Tube		Appelez-nous	-
5	484230		Tube, Outlet (includes No.4)		Appelez-nous	-
6	997226		Blade, Fan		Appelez-nous	-
7	876034		Clip, Balancing		Appelez-nous	-
8	WP950027		Nut, Cover   (Replaces: 950027)				$ 5.20
9	WP950036		Cover, Terminal   (Replaces: 950036)				$ 9.83
10	484136		Harness, Wiring		Appelez-nous	-
11	642684		Clamp, Tube (2)		Appelez-nous	-
12	708531		Bend, Return (7)		Appelez-nous	-
13	819230		Compressor		Appelez-nous	-
14	858121		Locknut (4)		Appelez-nous	-
15	1156330		Tube, Maniflod		Appelez-nous	-
16	997669		Bend, Return (11)		Appelez-nous	-
17	950020		Sleeve (3)		Appelez-nous	-
18	WP950021		Grommet (3)   (Replaces: 950021)				$ 78.99
19	WP488729		Screw, Sm No.8 X 1/2a   (Replaces: 487910)			Immediately	$ 7.45
20	852272		Clip, Mtg. (3) (base To Front)		Appelez-nous	-
21	950364		Base, Unit		Appelez-nous	-
22	1156440		Tube Restrictor (3) (length 50.0``)				$ 6,949.23
23	595085		Screw, Set 5/16 X 1/4		Appelez-nous	-
24	952072		Motor, Fan		Appelez-nous	-
25	998024		Plate, Mounting		Appelez-nous	-
26	647618		Wheel, Blower		Appelez-nous	-
27	WP950035		Gasket, Terminal Cover   (Replaces: 950035)				$ 78.01
28	708532		Bend, Return (12)		Appelez-nous	-
29	1156330		Tube, Maniflod		Appelez-nous	-
30	1156330		Bend, Retrun		Appelez-nous	-
31	858122		Locknut		Appelez-nous	-
32	WP488130		Nut, 8-32   (Replaces: 488130)				$ 6.59
33	472046		Anticipator		Appelez-nous	-
34	997677		Clip		Appelez-nous	-
35	950037		Gasket, Nut		Appelez-nous	-
37	853170		Seal		Appelez-nous	-
38	00647971		Handle, Base   (Replaces: 647971)				$ 129.08
39	1156493		Evaporator		Appelez-nous	-
40	1156107		Bend, Return (3-way)		Appelez-nous	-
41	1156531		Bend, Return		Appelez-nous	-
42	1155580		Tube, Connect		Appelez-nous	-
43	1156329		Tube, Bend		Appelez-nous	-
44	947364		Tube, Flow, Divder		Appelez-nous	-
45	950032		Spring, Overload		Appelez-nous	-
46	WP1161170		Overload   (Replaces: 1155605)				$ 84.72
47	948600		Seal, Condenser		Appelez-nous	-
	LIT1156807		Sheet, Tech And Wiring Diagram		Appelez-nous	-
	LIT879862		List, Repair Parts		Appelez-nous	-
	LIT1156794		Guide, Energy		Appelez-nous	-
	LIT1155965		Instructions, Installation		Appelez-nous	-
	LIT1156809		Guide, Operating		Appelez-nous	-
